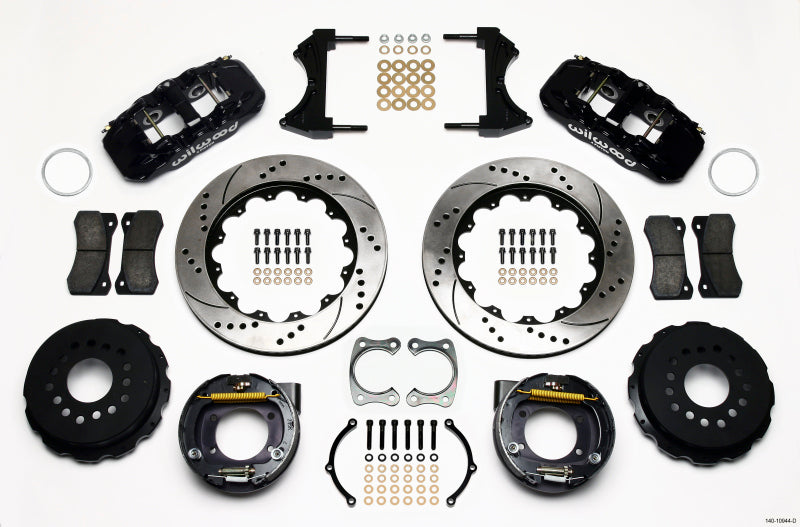

Wilwood W4A Rear P-Brk Kit 14.00" Drilled Big Ford 2.36" Offset
AERO4 Big Brake Rear Parking Brake Kit
AERO4 Big Brake Rear Axle Kits replace the factory disc brakes and use the OE parking brake assembly as a compliment to front big brake upgrades on late model high performance vehicles. High capacity braking from the AERO4 radial mount calipers, High friction BP compound pads, and oversized 14.00" rotors are matched to the OE master cylinder output, ABS function, and individual vehicle bias requirements. Enhanced brake performance, increased durability, and high-tech style compliment big wheel, tire, and suspension upgrades on customized vehicles and all others with increased brake requirements.
Specifications
Rear End Axle: Big Ford New Style
Axle Offset: 2.36
Mount Type: Radial
Caliper Type: 4 - Black Powder Coat
Rotor Diameter: 14
Min Wheel Diameter Req'd*: 18
Calipers
Left Hand - Part No: 120-13338-BK
Right Hand - Part No: 120-13338-BK
Type: AERO4
Finish Color: Black Powder Coat
Piston Count: 4
Piston 1 Bore (in): 1.12
Piston 2 Bore (in): 1.12
Piston Area (In²): 1.98
Piston Type: Stainless
Mount Type: Radial
Brake Pad Plate: 6617
Brake Pad Area (In²): 11.1
Brake Pad Volume (In³): 5.2
Pad Compound: BP-10
Rotors
Left Hand - Part No: 160-8401-BK
Right Hand - Part No: 160-8400-BK
Type: SRP Drilled Rotor
Style: SRP Drilled & Slotted
Surface Finish: Black Electro Coat
Material: Spec-37 Iron
Outside Diameter (in): 14
Width (in): 1.1
Vane Count: 72 CV
Design Type: SRP-BLK
Bedded: No
Dynamically Balanced: No
Rotor Hats
Hat - Part No: 170-13539
Type: Parking Brake Hat - Standard
Material: Aluminum
Finish Color: Black E-Coat
Hat Offset Dimension (in): 1.54
Bolt Circle 1: 5 x 4.50
Bolt Circle 2: 5 x 4.75
Bolt Circle 3: 5 x 5.00
Stud Diameter - BC 1: 0.52
Stud Diameter - BC 2: 0.52
Stud Diameter - BC 3: 0.52
