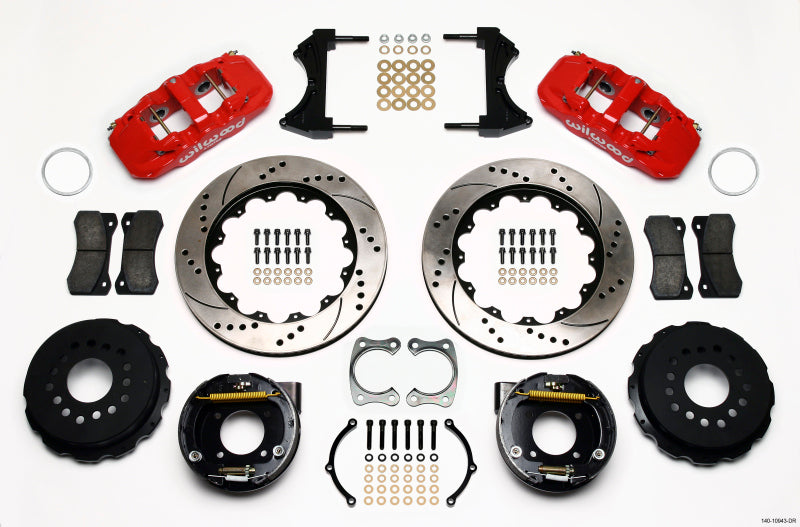

Wilwood AERO4 Rear P-Brake Kit, 14.00", Drilled, Red, Chevy 12 Bolt w/ C-Clips
Rear Brake Kit - Rear Kit
AERO4 Big Brake Rear Parking Brake Kit
AERO4 Rear Parking Brake kits provide the ultimate Big Brake solution for popular muscle car rear axles that require a parking brake. Forged AERO4 four piston calipers, 14" two-piece rotors, and high performance BP-10 compound pads provide optimized and balanced braking to compliment front big brake upgrades on all types of custom, show and high performance street machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs allow builders to personalize the style and performance for every application.
Specifications
| Rear End Axle: | 12 Bolt |
| Axle Offset: | 2.81 |
| Mount Type: | Radial |
| Caliper Type: | 4 - Red Powder Coat |
| Rotor Diameter: | 14 |
| Min Wheel Diameter Req'd*: | 18 |
| Calipers | |
|---|---|
| Left Hand - Part No: | 120-13338-RD |
| Right Hand - Part No: | 120-13338-RD |
| Type: | AERO4 |
| Finish Color: | Red Powder Coat |
| Piston Count: | 4 |
| Piston Area (In²): | 1.98 |
| Piston Type: | Stainless |
| Mount Type: | Radial |
| Brake Pad Plate: | 6617 |
| Brake Pad Area (In²): | 11.1 |
| Brake Pad Volume (In³): | 5.2 |
| Pad Compound: | BP-10 |
| Rotors | |
|---|---|
| Left Hand - Part No: | 160-8401-BK |
| Right Hand - Part No: | 160-8400-BK |
| Type: | SRP Drilled Rotor |
| Style: | SRP Drilled & Slotted |
| Surface Finish: | Black Electro Coat |
| Material: | Spec-37 Iron |
| Outside Diameter (in): | 14 |
| Width (in): | 1.1 |
| Vane Count: | 72 CV |
| Design Type: | SRP-BLK |
| Bedded: | No |
| Dynamically Balanced: | No |
| Rotor Hats | |
|---|---|
| Hat - Part No: | 170-13540 |
| Type: | Parking Brake Hat - Standard |
| Material: | Aluminum |
| Finish Color: | Black E-Coat |
| Hat Offset Dimension (in): | 1.95 |
| Bolt Circle 1: | 5 x 4.50 |
| Bolt Circle 2: | 5 x 4.75 |
| Bolt Circle 3: | 5 x 5.00 |
| Stud Diameter - BC 1: | 0.52 |
| Stud Diameter - BC 2: | 0.52 |
| Stud Diameter - BC 3: | 0.52 |
Wilwood AERO4 Rear P-Brake Kit, 14.00", Drilled, Red, Chevy 12 Bolt w/ C-Clips
Sale price$2,406.29 USD
Regular price$2,549.11 USD
