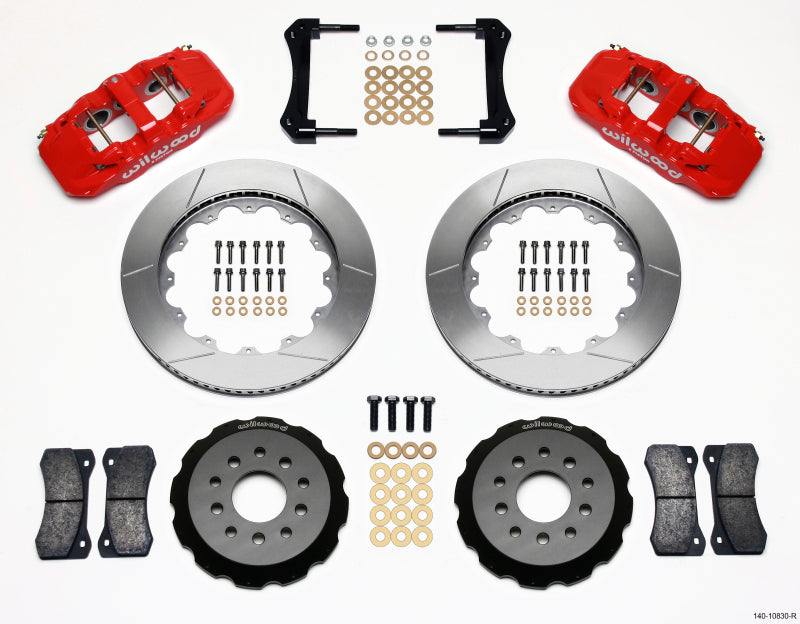

Wilwood W6A Front Hat Kit,14.00, Red 2005 & Up Mustang

AERO6 Big Brake Front Brake Kit

AERO6 calipers were designed for the specific purpose of providing big capacity braking with large diameter rotors for heavy weight and extreme duty vehicles. For cars, its the biggest of the big providing big brake performance for show and dual purpose street and track vehicles. For trucks and SUVs, it provides big stopping power for towing, off-road, and enhanced braking with wheel and tire upgrades. Kits listed for specific vehicles are fully compatible with OE master cylinder output and ABS function. Directional staggered vane 14.00 to 14.25rotors provide maximum cooling for sustained high heat durability.

Specifications

Spindle Type: Factory Disc Spindle

Mount Type: Radial

Caliper Type: 6 - Red Powder Coat

Rotor Diameter: 14

Min Wheel Diameter Req'd*: 18

Calipers

Left Hand - Part No: 120-13290-RD

Right Hand - Part No: 120-13289-RD

Type: AERO6

Finish Color: Red Powder Coat

Piston Count: 6

Piston 1 Bore (in): 1.62

Piston 2 Bore (in): 1.12

Piston 3 Bore (in): 1.12

Piston Area (In²): 4.04

Piston Type: Stainless

Mount Type: Radial

Brake Pad Plate: 6617

Brake Pad Area (In²): 11.1

Brake Pad Volume (In³): 5.2

Pad Compound: BP-20

Rotors

Left Hand - Part No: 160-8399

Right Hand - Part No: 160-8398

Type: GT 72 Curved Vane

Style: GT Slotted

Surface Finish: Plain

Material: Spec-37 Iron

Outside Diameter (in): 14

Width (in): 1.25

Vane Count: 72 CV

Design Type: GT

Bedded: No

Dynamically Balanced: Yes

Rotor Hats

Hat - Part No: 170-10149

Type: Big Brake Hat - Short Offset

Material: Aluminum

Finish Color: Black E-Coat

Hat Offset Dimension (in): 0.88

Bolt Circle 1: 5 x 4.50

Bolt Circle 2: 5 x 4.75

Stud Diameter - BC 1: 0.58

Stud Diameter - BC 2: 0.52

Stud Diameter - BC 3: 0
