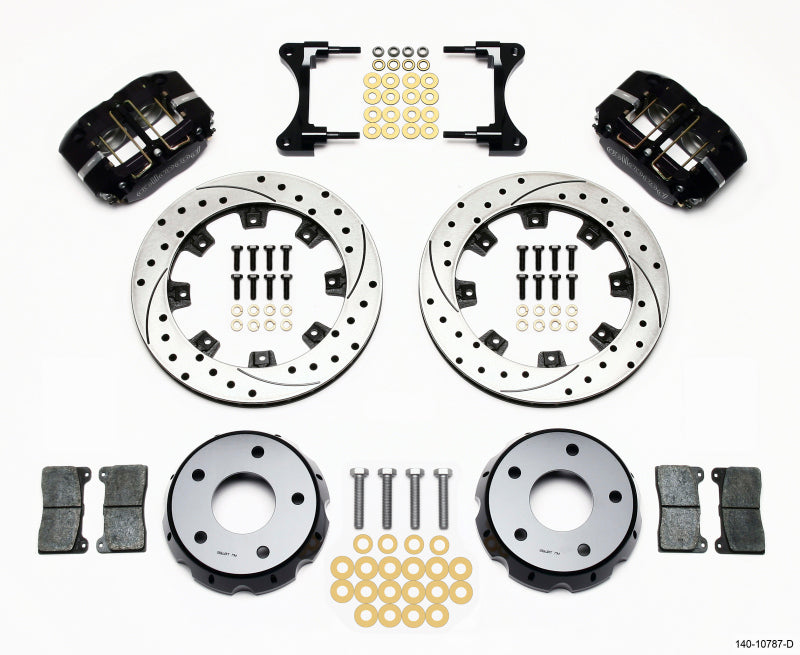

Wilwood NDPR Front Drag Kit,11.75" Vented,Drilled,98-02 Camaro/Firebird

Dynapro Radial Front Drag Brake Kit

NDPR forged billet, radial mount four piston calipers are used in this select group of drag racing kits. The OE brakes on vehicles originally equipped with 16 or larger wheels generally do not fit inside the popular 15 drag wheels. Specially designed radial caliper mount brackets bolt directly to the OE caliper mount, and provide secure and accurate mounting for the NDPR caliper. Kits with 3/8 steel rotors are recommended for four-wheel disc brake cars up to 2,800 pounds. Kits with .81 rotors should be used on cars over 2,800 pound cars, or lighter cars running extreme speeds desiring increased rotor durability.

Specifications

Spindle Type: Factory Disc Spindle

Mount Type: Radial

Caliper Type: 4 - Type III Ano

Rotor Diameter: 11.75

Min Wheel Diameter Req'd*: 15

Calipers
Left Hand - Part No: 120-10000

Right Hand - Part No: 120-10000

Type: Narrow Dynapro Radial Mount

Finish Color: Type III Ano

Piston Count: 4

Piston Area (In²): 4.80

Piston Type: Stainless

Mount Type: Radial

Brake Pad Plate: 7812

Brake Pad Area (In²): 6.36

Brake Pad Volume (In³): 2.1

Pad Compound: BP-10

Rotors
Left Hand - Part No: 160-7102-BK

Right Hand - Part No: 160-7101-BK

Type: SRP Drilled Rotor

Style: SRP Drilled & Slotted

Surface Finish: Black Electro Coat

Material: Iron

Outside Diameter (in): 11.75

Width (in): 0.81

Vane Count: 32 V

Design Type: SRP-BLK

Bedded: No

Dynamically Balanced: No

Vehicle Fitments:
