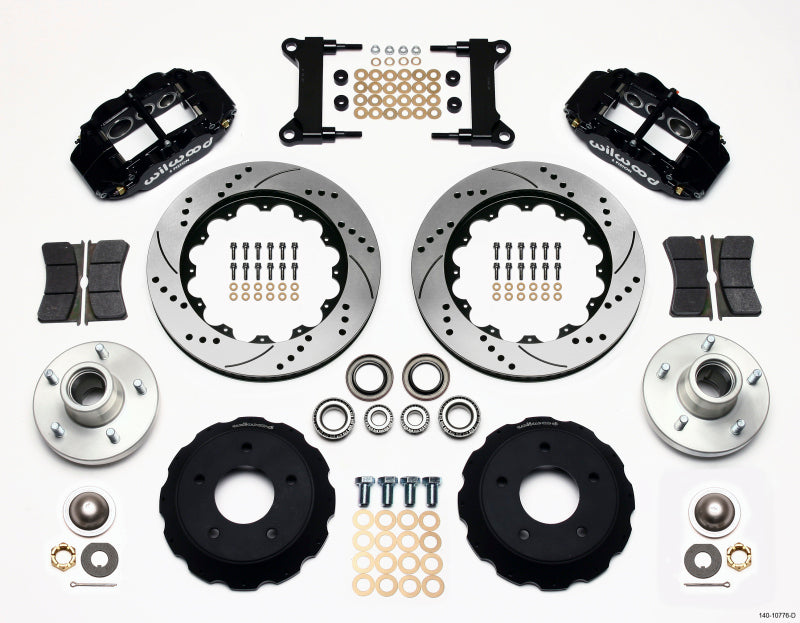

Wilwood FNSL6R Front Hub Kit, 14.00", Drilled, Chevy C-10 60-87 CPP Drop Spind

Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub)
FNSL6R billet Forged six-piston calipers with 13"-14" rotors deliver the ultimate combination for braking power and style in this group of kits engineered for traditional non-ABS spindles on American muscle cars and vintage rods. Built exclusively for 17" and larger wheels, SL6 kits enhance tire and suspension upgrades on all types of custom show and high performance dual-purpose street and track machines. A full range of options for caliper finishes and rotor designs are guaranteed to catch the eye of the most discriminating enthusiast while providing optimized brake performance for every individual application.
Kit Summary | |
---|---|
Spindle Type: | Drop Spindle |
Mount Type: | Radial |
Caliper Type: | 6 - Black Powder Coat |
Rotor Diameter: | 14 |
Min Wheel Diameter Req'd*: | 18 |
UPC Number | |
---|---|
UPC | 889545010398 |
*This Brake Kit may fit 18-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.
Caution: THIS BRAKE KIT HAS AN HUB OFFSET OF:
This Hub Offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle
NOTE: Check "Figure 2. Wheel Clearance Diagram" in the installation Instructions below to verify you have adequate wheel clearance for this kit.
1. 14" Rotor
2. Front Kit works only with Classic Performance Drop Spindles (CP30106-2/3/4). Please contact Classic Performance Products at 800-522-5004 for purchase.
Kit Components & Specifications
Calipers | |
---|---|
Left Hand - Part No: | 120-11779-BK |
Right Hand - Part No: | 120-11778-BK |
Type: | Forged Narrow Superlite 6R |
Finish Color: | Black Powder Coat |
Piston Count: | 6 |
Piston Area (In²): | 4.04 |
Piston Type: | Stainless |
Mount Type: | Radial |
Brake Pad Plate: | 7416 |
Brake Pad Area (In²): | 8.2 |
Brake Pad Volume (In³): | 3.8 |
Pad Compound: | BP-10 |
Rotors | |
---|---|
Left Hand - Part No: | 160-8397-BK |
Right Hand - Part No: | 160-8396-BK |
Type: | SRP Drilled Rotor |
Style: | SRP Drilled & Slotted |
Surface Finish: | Black Electro Coat |
Material: | Spec-37 Iron |
Outside Diameter (in): | 14 |
Width (in): | 1.25 |
Vane Count: | 72 CV |
Design Type: | SRP-BLK |
Bedded: | No |
Dynamically Balanced: | Yes |
Rotor Hats | |
---|---|
Hat - Part No: | 170-10753 |
Type: | Big Brake Hat - Flared Bell |
Material: | Aluminum |
Finish Color: | Black E-Coat |
Hat Offset Dimension (in): | 1.62 |
Bolt Circle 1: | 5 x 4.75 |
Bolt Circle 2: | 5 x 5.00 |
Bolt Circle 3: | |
Stud Diameter - BC 1: | 0.52 |
Stud Diameter - BC 2: | 0.52 |
Stud Diameter - BC 3: | 0 |
Hubs | |
---|---|
Hub - Part No: | 270-13217 |
Type: | Hub - Hat Mount |
Material: | Aluminum |
Finish Color: | Bare |
Mount Style: | Hat |
Bolt Circle 1: | 5 x 4.75 |
Bolt Circle 2: | 5 x 5.00 |
Bolt Circle 3: | |
Stud Diameter - BC 1: | 1/2-20 |
Stud Diameter - BC 2: | 1/2-20 |
Stud Diameter - BC 3: |
Vehicle Fitments:
Year | Make | Model | Submodel |
---|---|---|---|
1978 - 1980 | Chevrolet | C10 | Big Ten |
1975 - 1981 | Chevrolet | C10 | Cheyenne |
1975 - 1980 | Chevrolet | C10 | Custom Deluxe |
1981 | Chevrolet | C10 | Deluxe |
1975 - 1986 | Chevrolet | C10 | Silverado, Scottsdale, Custom |
1981 - 1986 | Chevrolet | C10 Suburban | Custom |
1975 - 1980 | Chevrolet | C10 Suburban | Custom Deluxe |
1981 | Chevrolet | C10 Suburban | Deluxe |
1975 - 1986 | Chevrolet | C10 Suburban | Scottsdale, Silverado |
1987 | Chevrolet | R10 | Silverado, Custom Deluxe, Scottsdale |
1987 | Chevrolet | R10 Suburban | Scottsdale, Custom Deluxe, Silverado |
1977 - 1978 | GMC | C15 | Heavy Half |
1977 | GMC | C15 | Indy Hauler |
1975 - 1978 | GMC | C15 | Sierra Classic, Base, High Sierra, Sierra Grande |
1978 | GMC | C15 | Street Coupe |
1975 - 1978 | GMC | C15 Suburban | Sierra Grande, Base, Sierra Classic, High Sierra |
1979 - 1980 | GMC | C1500 | Heavy Half |
1979 - 1986 | GMC | C1500 | High Sierra, Sierra Classic, Base |
1979 - 1982 | GMC | C1500 | Street Coupe, Sierra Grande |
1979 - 1986 | GMC | C1500 Suburban | Base, High Sierra, Sierra Classic |
1979 - 1982 | GMC | C1500 Suburban | Sierra Grande |
1975 - 1984 | GMC | Jimmy | Base, Sierra Classic, High Sierra |
1975 - 1982 | GMC | Jimmy | Sierra Grande |
1978 - 1982 | GMC | Jimmy | Street Coupe |
1987 | GMC | R1500 | Sierra Classic, High Sierra, Base |
