Wilwood FNSL6R Front Hub Kit, 13.06", Drill, Red, Chevy C-10 60-87 CPP Drop

SKU: 03C3C | MPN:  140-10775-DR
In stock
Sale price$2,082.99 USD Regular price$2,330.15 USD
Save $247.16

Front Brake Kit

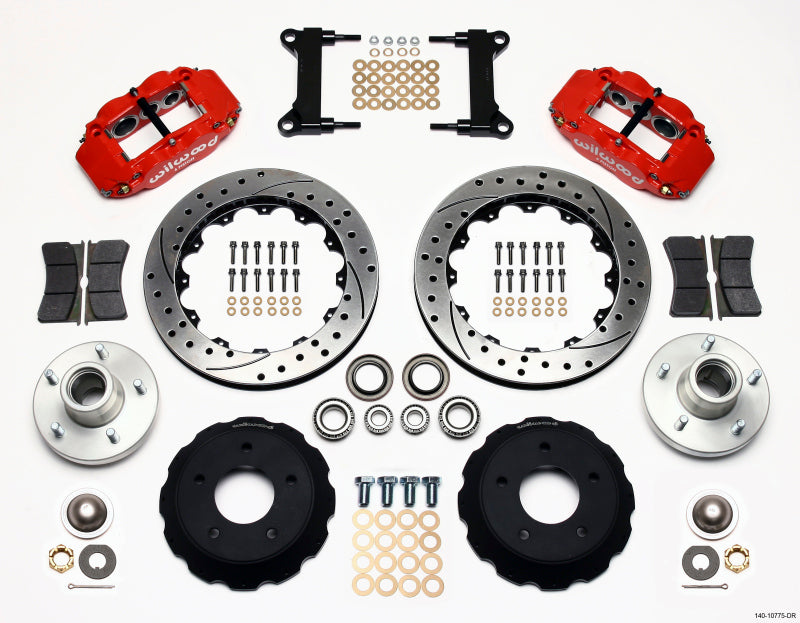

Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub)

FNSL6R billet Forged six-piston calipers with 13"-14" rotors deliver the ultimate combination for braking power and style in this group of kits engineered for traditional non-ABS spindles on American muscle cars and vintage rods. Built exclusively for 17" and larger wheels, SL6 kits enhance tire and suspension upgrades on all types of custom show and high performance dual-purpose street and track machines. A full range of options for caliper finishes and rotor designs are guaranteed to catch the eye of the most discriminating enthusiast while providing optimized brake performance for every individual application.

Specifications

Spindle Type: Drop Spindle
Mount Type: Radial
Caliper Type: 6 - Red Powder Coat
Rotor Diameter: 13.06
Min Wheel Diameter Req'd*: 17
Calipers
Left Hand - Part No: 120-111779-RD
Right Hand - Part No: 120-111778-RD
Type: Forged Narrow Superlite 6R
Finish Color: Red Powder Coat
Piston Count: 6
Piston Area (In²): 4.04
Piston Type: Stainless
Mount Type: Radial
Brake Pad Plate: 7416
Brake Pad Area (In²): 8.2
Brake Pad Volume (In³): 3.8
Pad Compound: BP-10
                                       Rotors
Left Hand - Part No: 160-7799-BK
Right Hand - Part No: 160-7798-BK
Type: SRP Drilled Rotor
Style: SRP Drilled & Slotted
Surface Finish: Black Electro Coat
Material: Spec-37 Iron
Outside Diameter (in): 13.06
Width (in): 1.25
Vane Count: 48 CV
Design Type: SRP-BLK
Bedded: No
Dynamically Balanced: No
      Rotor Hats
Hat - Part No: 170-10753
Type: Big Brake Hat - Flared Bell
Material: Aluminum
Finish Color: Black E-Coat
Hat Offset Dimension (in): 1.62
Bolt Circle 1: 5 x 4.75
Bolt Circle 2: 5 x 5.00
Stud Diameter - BC 1: 0.52
Stud Diameter - BC 2: 0.52
Stud Diameter - BC 3: 0
                                        Hubs
Hub - Part No: 270-13217
Type: Hub - Hat Mount
Material: Aluminum
Finish Color: Bare
Mount Style: Hat
Bolt Circle 1: 5 x 4.75
Bolt Circle 2: 5 x 5.00
Stud Diameter - BC 1: 1/2-20

Stud Diameter - BC 2:

1/2-20


Vehicle Fitments:

Year Make Model Submodel
1978 - 1980 Chevrolet C10 Big Ten
1975 - 1981 Chevrolet C10 Cheyenne
1975 - 1980 Chevrolet C10 Custom Deluxe
1975 - 1986 Chevrolet C10 Custom, Silverado, Scottsdale
1981 Chevrolet C10 Deluxe
1981 - 1986 Chevrolet C10 Suburban Custom
1975 - 1980 Chevrolet C10 Suburban Custom Deluxe
1981 Chevrolet C10 Suburban Deluxe
1975 - 1986 Chevrolet C10 Suburban Silverado, Scottsdale
1987 Chevrolet R10 Silverado, Scottsdale, Custom Deluxe
1987 Chevrolet R10 Suburban Custom Deluxe, Silverado, Scottsdale
1977 - 1978 GMC C15 Heavy Half
1975 - 1978 GMC C15 High Sierra, Sierra Grande, Sierra Classic, Base
1977 GMC C15 Indy Hauler
1978 GMC C15 Street Coupe
1975 - 1978 GMC C15 Suburban Sierra Grande, High Sierra, Base, Sierra Classic
1979 - 1986 GMC C1500 Base, High Sierra, Sierra Classic
1979 - 1980 GMC C1500 Heavy Half
1979 - 1982 GMC C1500 Sierra Grande, Street Coupe
1979 - 1986 GMC C1500 Suburban High Sierra, Base, Sierra Classic
1979 - 1982 GMC C1500 Suburban Sierra Grande
1975 - 1984 GMC Jimmy High Sierra, Base, Sierra Classic
1975 - 1982 GMC Jimmy Sierra Grande
1978 - 1982 GMC Jimmy Street Coupe
1987 GMC R1500 Sierra Classic, High Sierra, Base
