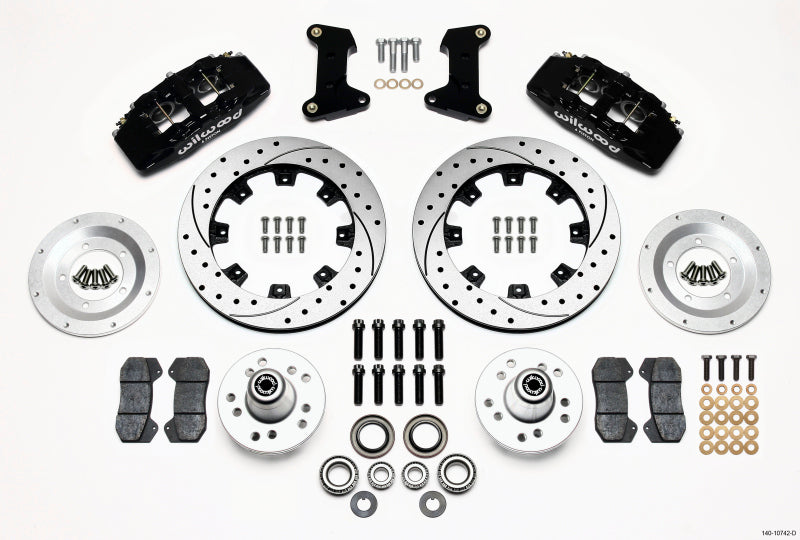

Wilwood DP6A Front Hub Kit, 12.19", Drilled, 74-80 Pinto/Mustang II Disc
Front Brake Kit
Forged Dynapro 6 Big Brake Front Brake Kit (Hub)
DynaPro 6 forged billet calipers are combined with 12.19" diameter rotors for this group of traditional non-ABS spindles on American muscle cars and vintage rods. The enhanced brake capacity and pad performance of the six piston calipers provide an intermediate level alternative to the bigger six piston kits. These kits compliment wheel, tire, and suspension upgrades on all types of custom show and high performance street / strip machines. A full range of caliper finishes and rotor designs enable the builder to personalize the style and optimize the brake performance for each individual application.
Specifications
| OE Hub Offset: | .00 |
| Spindle Type: | Drop Spindle Factory Disc Spindle |
| Mount Type: | Lug |
| Caliper Type: | 6 - Black Powder Coat |
| Rotor Diameter: | 12.19 |
| Min Wheel Diameter Req'd*: | 15 |
| Calipers | |
|---|---|
| Left Hand - Part No: | 120-13429-BK |
| Right Hand - Part No: | 120-13428-BK |
| Type: | Dynapro 6 |
| Finish Color: | Black Powder Coat |
| Piston Count: | 6 |
| Piston Area (In²): | 5.06 |
| Piston Type: | Stainless |
| Mount Type: | Lug |
| Brake Pad Plate: | 6712 |
| Brake Pad Area (In²): | 7.3 |
| Brake Pad Volume (In³): | 2.4 |
| Pad Compound: | BP-10 |
| Rotors | |
|---|---|
| Left Hand - Part No: | 160-7104-BK |
| Right Hand - Part No: | 160-7103-BK |
| Type: | SRP Drilled Rotor |
| Style: | SRP Drilled & Slotted |
| Surface Finish: | Black Electro Coat |
| Material: | Iron |
| Outside Diameter (in): | 12.19 |
| Width (in): | 0.81 |
| Vane Count: | 32 V |
| Design Type: | SRP-BLK |
| Bedded: | No |
| Dynamically Balanced: | No |
| Hubs | |
|---|---|
| Hub - Part No: | 270-10442 |
| Type: | Hub - Vented Rotor Offset |
| Material: | Aluminum |
| Finish Color: | Bare |
| Mount Style: | Adapter |
| Bolt Circle 1: | 5 x 4.50 |
| Bolt Circle 2: | 5 x 4.75 |
| Stud Diameter - BC 1: | 1/2-20 |
| Stud Diameter - BC 2: | 1/2-20 |
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1975 - 1978 | Ford | Mustang II | Ghia, Base, Mach 1 |
| 1975 - 1980 | Ford | Pinto | Base |
| 1976 - 1980 | Ford | Pinto | Squire, Pony |
| 1975 - 1980 | Mercury | Bobcat | Base |
| 1976 | Mercury | Bobcat | MPG Runabout, S Runabout |
| 1976 - 1980 | Mercury | Bobcat | Villager, Runabout |
Wilwood DP6A Front Hub Kit, 12.19", Drilled, 74-80 Pinto/Mustang II Disc
Sale price$1,359.76 USD
Regular price$1,432.82 USD
