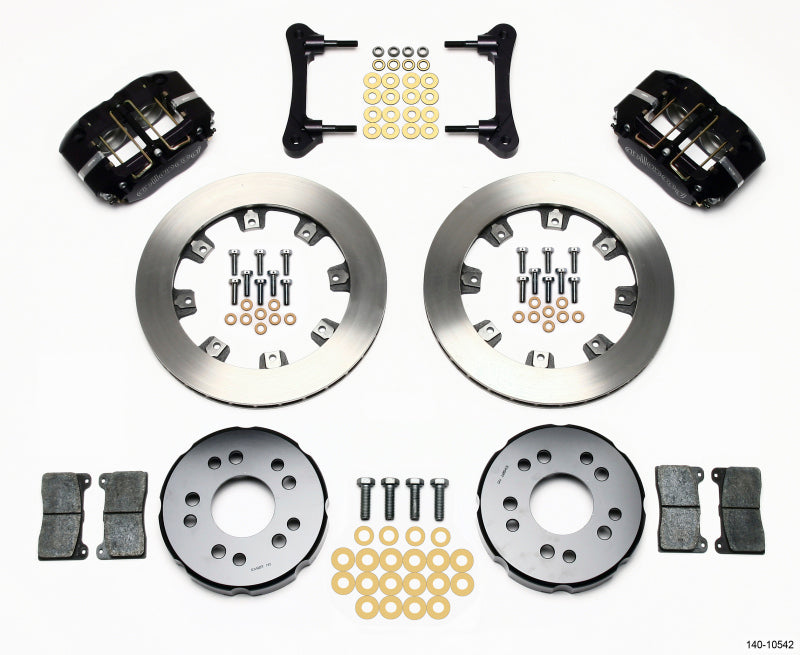

Wilwood NDPR Front Drag Kit,11.75" Vented 2005 & Up Mustang

Dynapro Radial Front Drag Brake Kit

NDPR forged billet, radial mount four piston calipers are used in this select group of drag racing kits. The OE brakes on vehicles originally equipped with 16 or larger wheels generally do not fit inside the popular 15 drag wheels. Specially designed radial caliper mount brackets bolt directly to the OE caliper mount, and provide secure and accurate mounting for the NDPR caliper. Kits with 3/8 steel rotors are recommended for four-wheel disc brake cars up to 2,800 pounds. Kits with .81 rotors should be used on cars over 2,800 pound cars, or lighter cars running extreme speeds desiring increased rotor durability.

Specifications

Spindle Type: Factory Disc Spindle

Mount Type: Radial

Caliper Type: 4 - Type III Ano

Rotor Diameter: 11.75

Min Wheel Diameter Req'd*: 15

Calipers

Left Hand - Part No: 120-10000

Right Hand - Part No: 120-10000

Type: Narrow Dynapro Radial Mount

Finish Color: Type III Ano

Piston Count: 4

Piston 1 Bore (in): 1.75

Piston 2 Bore (in): 1.75

Piston Area (In²): 4.80

Piston Type: Stainless

Mount Type: Radial

Brake Pad Plate: 7812

Brake Pad Area (In²): 6.36

Brake Pad Volume (In³): 2.1

Pad Compound: BP-10

Rotors

Left Hand - Part No: 160-5841

Right Hand - Part No: 160-5841

Type: Ultralite HP 32

Style: Plain Face

Surface Finish: Plain

Material: Iron

Outside Diameter (in): 11.75

Width (in): 0.81

Vane Count: 32 V

Design Type: ULHP

Bedded: No

Dynamically Balanced: No

Rotor Hats

Hat - Part No: 170-10543

Type: Drag Hat - Shallow Offset

Material: Aluminum

Finish Color: Black E-Coat

Hat Offset Dimension (in): 1.16

Bolt Circle 1: 5 x 4.50

Bolt Circle 2: 5 x 4.75

Stud Diameter - BC 1: 0.58

Stud Diameter - BC 2: 0.52

Stud Diameter - BC 3: 0
