Front Brake Kit

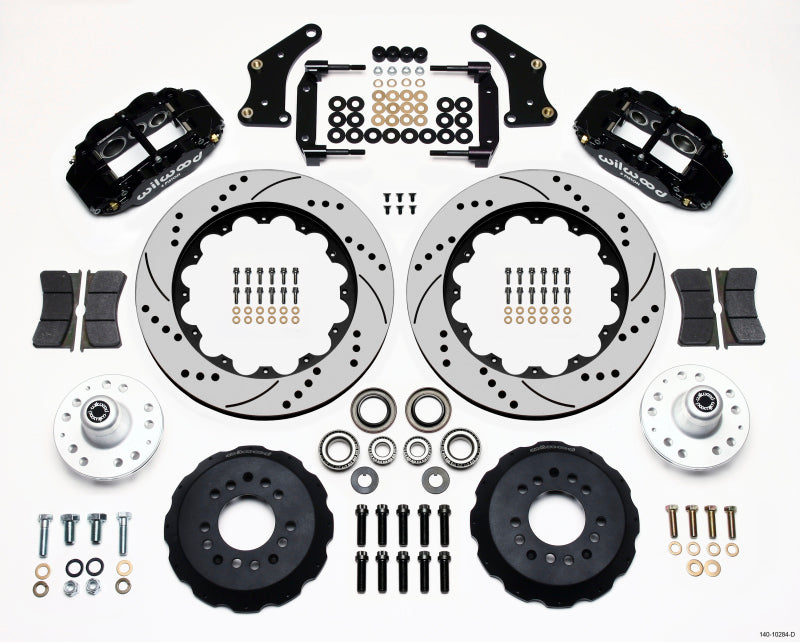

Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub)
FNSL6R billet Forged six-piston calipers with 13"-14" rotors deliver the ultimate combination for braking power and style in this group of kits engineered for traditional non-ABS spindles on American muscle cars and vintage rods. Built exclusively for 17" and larger wheels, SL6 kits enhance tire and suspension upgrades on all types of custom show and high performance dual-purpose street and track machines. A full range of options for caliper finishes and rotor designs are guaranteed to catch the eye of the most discriminating enthusiast while providing optimized brake performance for every individual application.
Specifications
| Spindle Type: |
Drop Spindle |
| Mount Type: |
Radial |
| Caliper Type: |
6 - Black Powder Coat |
| Rotor Diameter: |
14 |
| Min Wheel Diameter Req'd*: |
18 |
| Calipers |
|---|
| Left Hand - Part No: |
120-11781-BK |
| Right Hand - Part No: |
120-11780-BK |
| Type: |
Forged Narrow Superlite 6R |
| Finish Color: |
Black Powder Coat |
| Piston Count: |
6 |
| Piston Area (In²): |
4.04 |
| Piston Type: |
Stainless |
| Mount Type: |
Radial |
| Brake Pad Plate: |
7416 |
| Brake Pad Area (In²): |
8.2 |
| Brake Pad Volume (In³): |
3.8 |
| Pad Compound: |
BP-10 |
| Rotors |
|---|
| Left Hand - Part No: |
160-8401-BK |
| Right Hand - Part No: |
160-8400-BK |
| Type: |
SRP Drilled Rotor |
| Style: |
SRP Drilled & Slotted |
| Surface Finish: |
Black Electro Coat |
| Material: |
Spec-37 Iron |
| Outside Diameter (in): |
14 |
| Width (in): |
1.1 |
| Vane Count: |
72 CV |
| Design Type: |
SRP-BLK |
| Bedded: |
No |
| Dynamically Balanced: |
No |
| Rotor Hats |
|---|
| Hat - Part No: |
170-10231 |
| Type: |
Big Brake Hat - Flared Bell |
| Material: |
Aluminum |
| Finish Color: |
Black E-Coat |
| Hat Offset Dimension (in): |
1.2 |
| Bolt Circle 1: |
5 x 4.50 |
| Bolt Circle 2: |
5 x 4.75 |
| Stud Diameter - BC 1: |
0.52 |
| Stud Diameter - BC 2: |
0.52 |
| Stud Diameter - BC 3: |
0 |
| Hubs |
|---|
| Hub - Part No: |
270-10237 |
| Type: |
Hub - Hat Mount |
| Material: |
Aluminum |
| Finish Color: |
Bare |
| Mount Style: |
Hat |
| Bolt Circle 1: |
5 x 4.50 |
| Bolt Circle 2: |
5 x 4.75 |
| Stud Diameter - BC 1: |
1/2-20 |
| Stud Diameter - BC 2: |
1/2-20 |
Vehicle Fitments:
| Year |
Make |
Model |
Submodel |
| 1958 - 1970 |
Chevrolet |
Bel Air |
Base |
| 1958 - 1970 |
Chevrolet |
Biscayne |
Base |
| 1960 |
Chevrolet |
Biscayne |
Fleetmaster |
| 1958 - 1970 |
Chevrolet |
Brookwood |
Base |
| 1966 - 1970 |
Chevrolet |
Caprice |
Base |
| 1957 - 1958 |
Chevrolet |
Del Ray |
Base |
| 1959 - 1960 |
Chevrolet |
El Camino |
Base |
| 1970 |
Chevrolet |
Estate |
Base |
| 1958 - 1970 |
Chevrolet |
Impala |
Base |
| 1964 - 1967 |
Chevrolet |
Impala |
SS |
| 1969 - 1970 |
Chevrolet |
Kingswood |
Base, Estate |
| 1969 - 1970 |
Chevrolet |
Townsman |
Base |
