Wilwood CPB Rear Kit, 12.19", Red, Civic / Integra Disc 2.39 Hub Offset *Discontinued
Wilwood CPB Rear Kit, 12.19", Red, Civic / Integra Disc 2.39 Hub Offset *Discontinued
Shipping calculated at checkout.
To United StatesChange
Final options and totals are confirmed at checkout.
29 in stock
Not sure this is the right part? Ask us to check fitment. Include your year, make, model, engine and manufacturer part number.
Shipping & returns
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policyRear Brake Kit - Rear Kit

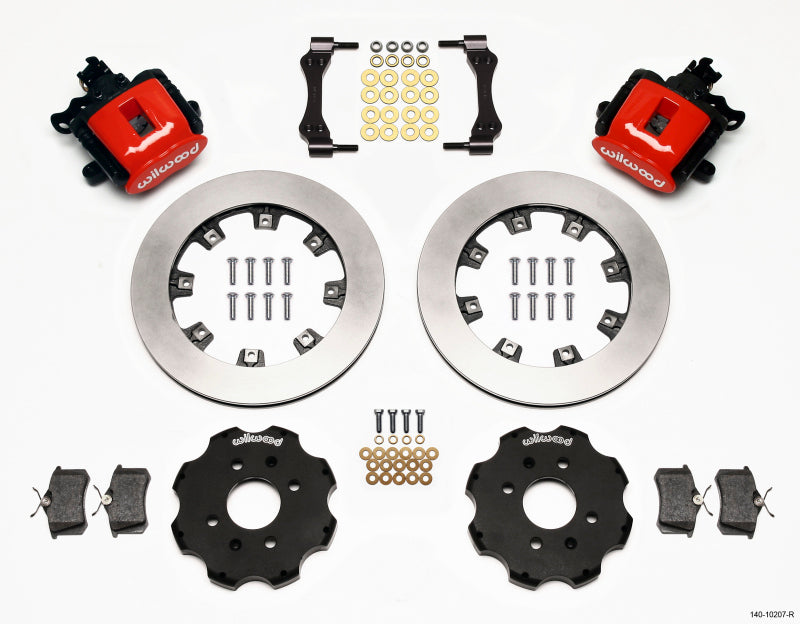

Combination Parking Brake Caliper Rear Brake Kit
Combination hydro-mechanical Parking Brake calipers use hydraulic pressure from the master cylinder for stopping power, and an internal mechanical lock within the caliper for a parking brake. CPB kits are built primarily for front wheel drive vehicles, and select rear wheel drive axles that are not well suited for internal shoe style parking brakes. The calipers are coupled with oversized two-piece rotor assemblies with aluminum hats and high friction BP-10 compound pads. CPB kits provide the correct balanced brake performance and matching style to compliment front big brake upgrade kits.
Specifications
| Rear End Axle: | OEM |
| Axle Offset: | 2.39 |
| Mount Type: | Radial |
| Caliper Type: | 1 - Red Powder Coat |
| Rotor Diameter: | 12.19 |
| Min Wheel Diameter Req'd*: | 17 |
| Calipers | |
|---|---|
| Left Hand - Part No: | 120-9809-RD |
| Right Hand - Part No: | 120-9808-RD |
| Type: | Combination Parking Brake |
| Finish Color: | Red Powder Coat |
| Piston Count: | 1 |
| Piston Area (In²): | 1.38 |
| Piston Type: | Steel |
| Mount Type: | Radial |
| Brake Pad Plate: | D340 |
| Brake Pad Area (In²): | 4 |
| Brake Pad Volume (In³): | 1.5 |
| Pad Compound: | BP-10 |
| Rotors | |
|---|---|
| Left Hand - Part No: | 160-5843 |
| Right Hand - Part No: | 160-5843 |
| Type: | Ultralite HP 32 |
| Style: | Plain Face |
| Surface Finish: | Plain |
| Material: | Iron |
| Outside Diameter (in): | 12.19 |
| Width (in): | 0.81 |
| Vane Count: | 32 V |
| Design Type: | ULHP |
| Bedded: | No |
| Dynamically Balanced: | No |
| Rotor Hats | |
|---|---|
| Hat - Part No: | 170-10200 |
| Type: | Big Brake Hat - Short Offset |
| Material: | Aluminum |
| Finish Color: | Black E-Coat |
| Hat Offset Dimension (in): | 0.75 |
| Bolt Circle 1: | 4 x 3.93 |
| Stud Diameter - BC 1: | 0.5 |
| Stud Diameter - BC 2: | 0 |
| Stud Diameter - BC 3: | 0 |
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1990 - 2001 | Acura | Integra | GS, LS |
| 1992 - 2001 | Acura | Integra | GS-R |
| 1990 - 1998 | Acura | Integra | RS |
| 1995 - 1996 | Acura | Integra | Special Edition |
| 1997 - 2001 | Acura | Integra | Type R |
| 1999 - 2000 | Honda | Civic | EX-R, EX-R SIR, HX, GX |
| 1992 - 2000 | Honda | Civic | LX, DX, EX, CX, Si |
| 1999 | Honda | Civic | Value Package |
| 1992 - 1995 | Honda | Civic | VX |
| 1993 - 1997 | Honda | Civic del Sol | Si, S |
| 1994 - 1997 | Honda | Civic del Sol | VTEC |
| 1990 - 1991 | Honda | CRX | HF, Si, Base |
