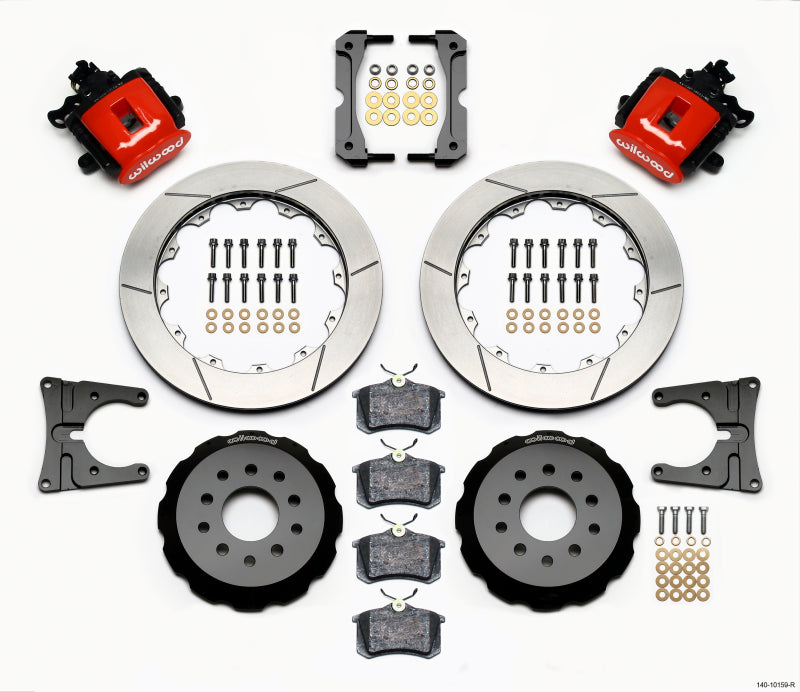

Wilwood CPB Rear Kit, 12.88", Red, 2005-2014 Mustang
Rear Brake Kit - Rear Kit
Combination Parking Brake Caliper Rear Brake Kit
Combination hydro-mechanical Parking Brake calipers use hydraulic pressure from the master cylinder for stopping power, and an internal mechanical lock within the caliper for a parking brake. CPB kits are built primarily for front wheel drive vehicles, and select rear wheel drive axles that are not well suited for internal shoe style parking brakes. The calipers are coupled with oversized two-piece rotor assemblies with aluminum hats and high friction BP-10 compound pads. CPB kits provide the correct balanced brake performance and matching style to compliment front big brake upgrade kits.
Specifications
| Rear End Axle: | Mustang 05-up |
| Axle Offset: | 2.66 |
| Mount Type: | Radial |
| Caliper Type: | 1 - Red Powder Coat |
| Rotor Diameter: | 12.88 |
| Min Wheel Diameter Req'd*: | 17 |
| Calipers | |
|---|---|
| Left Hand - Part No: | 120-10110-RD |
| Right Hand - Part No: | 120-10111-RD |
| Type: | Combination Parking Brake |
| Finish Color: | Red Powder Coat |
| Piston Count: | 1 |
| Piston Area (In²): | 2.06 |
| Piston Type: | Steel |
| Mount Type: | Radial |
| Brake Pad Plate: | D340 |
| Brake Pad Area (In²): | 4 |
| Brake Pad Volume (In³): | 1.5 |
| Pad Compound: | BP-10 |
| Rotors | |
|---|---|
| Left Hand - Part No: | 160-13357 |
| Right Hand - Part No: | 160-13356 |
| Type: | GT 48 Curved Vane |
| Style: | GT Slotted |
| Surface Finish: | Plain |
| Material: | Spec-37 Iron |
| Outside Diameter (in): | 12.88 |
| Width (in): | 1 |
| Vane Count: | 48 CV |
| Design Type: | GT |
| Bedded: | No |
| Dynamically Balanced: | Yes |
| Rotor Hats | |
|---|---|
| Hat - Part No: | 170-11328 |
| Type: | Big Brake Hat - Short Offset |
| Material: | Aluminum |
| Finish Color: | Black E-Coat |
| Hat Offset Dimension (in): | 1 |
| Bolt Circle 1: | 5 X 4.50 |
| Stud Diameter - BC 1: | 0.52 |
| Stud Diameter - BC 2: | 0 |
| Stud Diameter - BC 3: | 0 |
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2005 - 2014 | Ford | Mustang | Base, GT |
| 2012 - 2013 | Ford | Mustang | Boss 302 |
| 2008 - 2009 | Ford | Mustang | Bullitt, Shelby GT500KR |
| 2005 - 2008 | Ford | Mustang | GT Base |
| 2005 - 2009 | Ford | Mustang | GT Equipado |
| 2007 - 2009 | Ford | Mustang | Lujo |
| 2008 - 2014 | Ford | Mustang | Shelby |
| 2007 - 2008 | Ford | Mustang | Shelby GT |
| 2007 - 2014 | Ford | Mustang | Shelby GT500 |
| 2012 - 2014 | Ford | Mustang | ST |
Wilwood CPB Rear Kit, 12.88", Red, 2005-2014 Mustang
Sale price$1,572.43 USD
Regular price$1,758.32 USD
