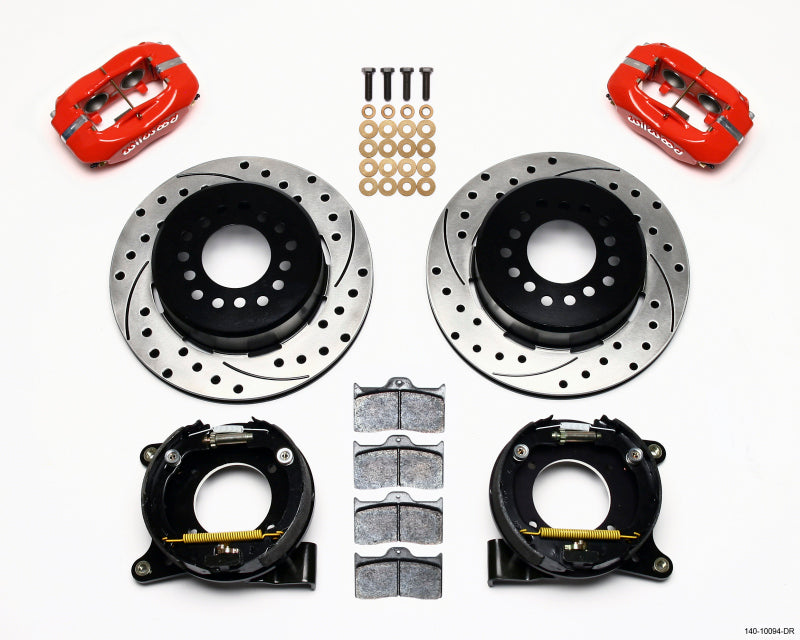

Wilwood FDL P/S Park Brake Kit, Drilled, Red, Chevy C-10, 2.42 Offset 5-lug
Forged Dynalite Rear Parking Brake Kit
This group of FDL Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged billet Dynalite four piston calipers, 12.19" one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.
| Kit Summary | |
|---|---|
| Rear End Axle: | Large Chevy C10 |
| Axle Offset: | 2.42 |
| Mount Type: | Lug |
| Caliper Type: | 4 - Red Powder Coat |
| Rotor Diameter: | 12.19 |
| Min Wheel Diameter Req'd*: | 15 |
| *This Brake Kit may fit 15-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. | |
| UPC Number | |
|---|---|
| UPC | 889545008449 |
AXLE OFFSET: 2.42
Check the diagram above and verify this measurement. This kit may be available in several different offsets.
Notes:
1. C-10 / C-15 Truck - 5 lug only.
2. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
Compatible Vehicles for this Brake Kit
BRAKE KIT:Forged Dynalite Rear Parking Brake Kit
This Brake Kit is Compatible with the Following Vehicle Makes: Chevrolet,Classic Perf. Prod., GMC Ridetech Wilwood
Note: Kit may fit other vehicles, call Wilwood Sales?Tech Support at (805) 388-1188 for more information.
REAR END:Large Chevy C10 - Rear Kit
AXLE OFFSET: 2.42
For a Complete Listing including ALL Makes, Models and Years, Please click on the Axle Offset.
Kit Components & Specifications
| Calipers | |
|---|---|
| Left Hand - Part No: | 120-13839-RD |
| Right Hand - Part No: | 120-13839-RD |
| Type: | Forged Dynalite Internal |
| Finish Color: | Red Powder Coat |
| Piston Count: | 4 |
| Piston Area (In²): | 3.00 |
| Piston Type: | Stainless |
| Mount Type: | Lug |
| Brake Pad Plate: | 7112 |
| Brake Pad Area (In²): | 6.36 |
| Brake Pad Volume (In³): | 2.1 |
| Pad Compound: | BP-10 |
| Rotors | |
|---|---|
| Left Hand - Part No: | 160-9990-BK |
| Right Hand - Part No: | 160-9989-BK |
| Type: | SRP Drilled Rotor & Hat |
| Style: | SRP Drilled & Slotted |
| Surface Finish: | Black Electro Coat |
| Material: | Iron |
| Outside Diameter (in): | 12.19 |
| Width (in): | 0.81 |
| Vane Count: | 32 V |
| Design Type: | SRP-BLK |
| Bedded: | No |
| Dynamically Balanced: | No |
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1978 - 1980 | Chevrolet | C10 | Big Ten |
| 1975 - 1981 | Chevrolet | C10 | Cheyenne |
| 1975 - 1980 | Chevrolet | C10 | Custom Deluxe |
| 1981 | Chevrolet | C10 | Deluxe |
| 1975 - 1986 | Chevrolet | C10 | Scottsdale, Custom, Silverado |
| 1981 - 1986 | Chevrolet | C10 Suburban | Custom |
| 1975 - 1980 | Chevrolet | C10 Suburban | Custom Deluxe |
| 1981 | Chevrolet | C10 Suburban | Deluxe |
| 1975 - 1986 | Chevrolet | C10 Suburban | Silverado, Scottsdale |
| 1976 | Chevrolet | K5 Blazer | Base |
| 1981 - 1982 | Chevrolet | K5 Blazer | Custom |
| 1975 - 1980 | Chevrolet | K5 Blazer | Custom Deluxe, Cheyenne |
| 1981 | Chevrolet | K5 Blazer | Deluxe |
| 1978 - 1982 | Chevrolet | K5 Blazer | Silverado |
| 1987 | Chevrolet | R10 | Scottsdale, Custom Deluxe, Silverado |
| 1987 | Chevrolet | R10 Suburban | Custom Deluxe, Silverado, Scottsdale |
| 1977 - 1978 | GMC | C15 | Heavy Half |
| 1975 - 1978 | GMC | C15 | High Sierra, Sierra Grande, Sierra Classic, Base |
| 1977 | GMC | C15 | Indy Hauler |
| 1978 | GMC | C15 | Street Coupe |
| 1975 - 1978 | GMC | C15 Suburban | High Sierra, Sierra Grande, Base, Sierra Classic |
| 1979 - 1986 | GMC | C1500 | Base, Sierra Classic, High Sierra |
| 1979 - 1980 | GMC | C1500 | Heavy Half |
| 1979 - 1982 | GMC | C1500 | Sierra Grande, Street Coupe |
| 1979 - 1986 | GMC | C1500 Suburban | Base, High Sierra, Sierra Classic |
| 1979 - 1982 | GMC | C1500 Suburban | Sierra Grande |
| 1975 - 1984 | GMC | Jimmy | High Sierra, Sierra Classic, Base |
| 1975 - 1982 | GMC | Jimmy | Sierra Grande |
| 1978 - 1982 | GMC | Jimmy | Street Coupe |
| 1975 - 1978 | GMC | P15 | Base, Value Van |
| 1979 - 1980 | GMC | P1500 | Base, Value Van |
| 1987 | GMC | R1500 | Sierra Classic, High Sierra, Base |
| 1987 | GMC | R1500 Suburban | Sierra Classic, High Sierra, Base |
