Wilwood FDL P/S Park Brake Kit, Drilled, Chevy C-10, 2.42 Offset 5-lug
Rear Brake Kit - Rear Kit

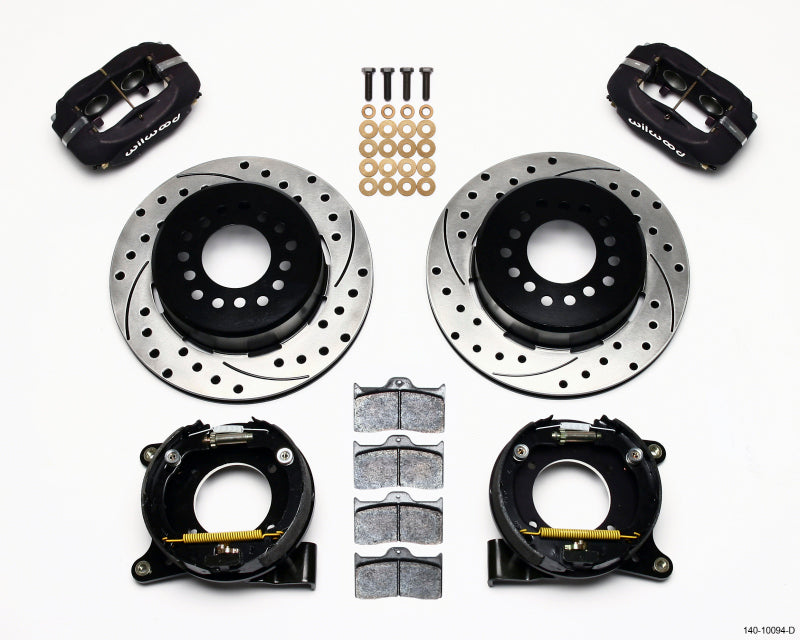

Forged Dynalite Rear Parking Brake Kit
This group of FDL Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged billet Dynalite four piston calipers, 12.19" one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.
Specifications
| Rear End Axle: | Large Chevy C10 |
| Axle Offset: | 2.42 |
| Mount Type: | Lug |
| Caliper Type: | 4 - Black Powder Coat |
| Rotor Diameter: | 12.19 |
| Min Wheel Diameter Req'd*: | 15 |
| Calipers | |
|---|---|
| Left Hand - Part No: | 120-13839-BK |
| Right Hand - Part No: | 120-13839-BK |
| Type: | Forged Dynalite Internal |
| Finish Color: | Black Powder Coat |
| Piston Count: | 4 |
| Piston Area (In²): | 3.00 |
| Piston Type: | Stainless |
| Mount Type: | Lug |
| Brake Pad Plate: | 7112 |
| Brake Pad Area (In²): | 6.36 |
| Brake Pad Volume (In³): | 2.1 |
| Pad Compound: | BP-10 |
| Rotors | |
|---|---|
| Left Hand - Part No: | 160-9990-BK |
| Right Hand - Part No: | 160-9989-BK |
| Type: | SRP Drilled Rotor & Hat |
| Style: | SRP Drilled & Slotted |
| Surface Finish: | Black Electro Coat |
| Material: | Iron |
| Outside Diameter (in): | 12.19 |
| Width (in): | 0.81 |
| Vane Count: | 32 V |
| Design Type: | SRP-BLK |
| Bedded: | No |
| Dynamically Balanced: | No |
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1978 - 1980 | Chevrolet | C10 | Big Ten |
| 1975 - 1981 | Chevrolet | C10 | Cheyenne |
| 1975 - 1980 | Chevrolet | C10 | Custom Deluxe |
| 1975 - 1986 | Chevrolet | C10 | Custom, Silverado, Scottsdale |
| 1981 | Chevrolet | C10 | Deluxe |
| 1981 - 1986 | Chevrolet | C10 Suburban | Custom |
| 1975 - 1980 | Chevrolet | C10 Suburban | Custom Deluxe |
| 1981 | Chevrolet | C10 Suburban | Deluxe |
| 1975 - 1986 | Chevrolet | C10 Suburban | Silverado, Scottsdale |
| 1976 | Chevrolet | K5 Blazer | Base |
| 1975 - 1980 | Chevrolet | K5 Blazer | Cheyenne, Custom Deluxe |
| 1981 - 1982 | Chevrolet | K5 Blazer | Custom |
| 1981 | Chevrolet | K5 Blazer | Deluxe |
| 1978 - 1982 | Chevrolet | K5 Blazer | Silverado |
| 1987 | Chevrolet | R10 | Custom Deluxe, Silverado, Scottsdale |
| 1987 | Chevrolet | R10 Suburban | Silverado, Custom Deluxe, Scottsdale |
| 1975 - 1978 | GMC | C15 | Base, Sierra Grande, High Sierra, Sierra Classic |
| 1977 - 1978 | GMC | C15 | Heavy Half |
| 1977 | GMC | C15 | Indy Hauler |
| 1978 | GMC | C15 | Street Coupe |
| 1975 - 1978 | GMC | C15 Suburban | Base, Sierra Grande, High Sierra, Sierra Classic |
| 1979 - 1980 | GMC | C1500 | Heavy Half |
| 1979 - 1986 | GMC | C1500 | Sierra Classic, High Sierra, Base |
| 1979 - 1982 | GMC | C1500 | Sierra Grande, Street Coupe |
| 1979 - 1986 | GMC | C1500 Suburban | Sierra Classic, High Sierra, Base |
| 1979 - 1982 | GMC | C1500 Suburban | Sierra Grande |
| 1975 - 1984 | GMC | Jimmy | High Sierra, Sierra Classic, Base |
| 1975 - 1982 | GMC | Jimmy | Sierra Grande |
| 1978 - 1982 | GMC | Jimmy | Street Coupe |
| 1975 - 1978 | GMC | P15 | Base, Value Van |
| 1979 - 1980 | GMC | P1500 | Value Van, Base |
| 1987 | GMC | R1500 | Sierra Classic, Base, High Sierra |
| 1987 | GMC | R1500 Suburban | High Sierra, Sierra Classic, Base |
Wilwood FDL P/S Park Brake Kit, Drilled, Chevy C-10, 2.42 Offset 5-lug
Sale price$1,106.36 USD
Regular price$1,236.33 USD
