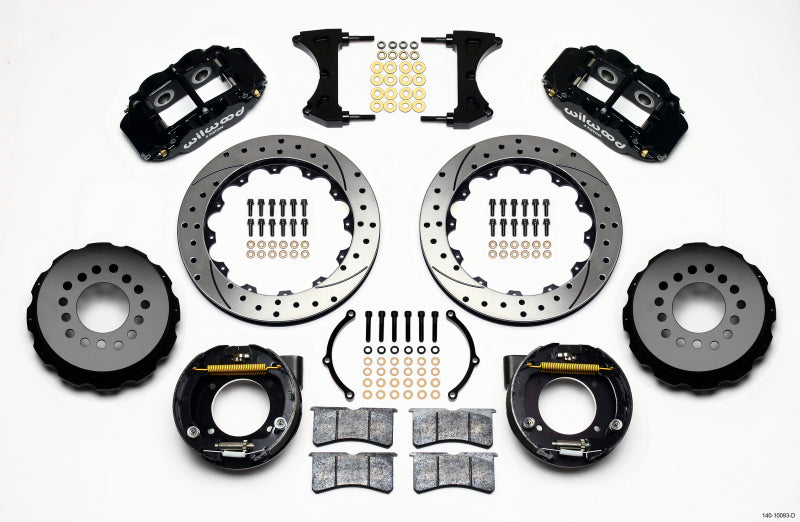

Wilwood FNSL4R Rear P-Brk Kit, 12.88", Drilled, Chevy C-10, 2.42 Offset 5-lug
Rear Brake Kit - Rear Kit
Forged Narrow Superlite 4R Big Brake Rear Parking Brake Kit
Forged Narrow Superlite 4R rear disc kits provide the ultimate Big Brake solution for popular muscle car rear axles that require a parking brake. FNSL4R four piston calipers, 13" or 14" two-piece rotors, and high performance BP-10 compound pads provide optimized and balanced braking to compliment front big brake upgrades on all types of custom, show and high performance street machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs allow builders to personalize the style and performance for every application.
Specifications
| Rear End Axle: | Large Chevy C10 |
| Axle Offset: | 2.42 |
| Mount Type: | Radial |
| Caliper Type: | 4 - Black Powder Coat |
| Rotor Diameter: | 12.88 |
| Min Wheel Diameter Req'd*: | 17 |
| Calipers | |
|---|---|
| Left Hand - Part No: | 120-11782-BK |
| Right Hand - Part No: | 120-11782-BK |
| Type: | Forged Narrow Superlite 4R |
| Finish Color: | Black Powder Coat |
| Piston Count: | 4 |
| Piston Area (In²): | 1.98 |
| Piston Type: | Stainless |
| Mount Type: | Radial |
| Brake Pad Plate: | 7416 |
| Brake Pad Area (In²): | 8.2 |
| Brake Pad Volume (In³): | 3.8 |
| Pad Compound: | BP-10 |
| Rotors | |
|---|---|
| Left Hand - Part No: | 160-13544-BK |
| Right Hand - Part No: | 160-13543-BK |
| Type: | SRP Drilled Rotor |
| Style: | SRP Drilled & Slotted |
| Surface Finish: | Black Electro Coat |
| Material: | Spec-37 Iron |
| Outside Diameter (in): | 12.88 |
| Width (in): | 1.1 |
| Vane Count: | 48 CV |
| Design Type: | SRP-BLK |
| Bedded: | No |
| Dynamically Balanced: | Yes |
| Rotor Hats | |
|---|---|
| Hat - Part No: | 170-13909 |
| Type: | Parking Brake Hat - Standard |
| Material: | Aluminum |
| Finish Color: | Black E-Coat |
| Hat Offset Dimension (in): | 1.54 |
| Bolt Circle 1: | 5 x 4.50 |
| Bolt Circle 2: | 5 x 4.75 |
| Bolt Circle 3: | 5 x 5.00 |
| Stud Diameter - BC 1: | 0.52 |
| Stud Diameter - BC 2: | 0.52 |
| Stud Diameter - BC 3: | 0.52 |
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1978 - 1980 | Chevrolet | C10 | Big Ten |
| 1975 - 1981 | Chevrolet | C10 | Cheyenne |
| 1975 - 1980 | Chevrolet | C10 | Custom Deluxe |
| 1981 | Chevrolet | C10 | Deluxe |
| 1975 - 1986 | Chevrolet | C10 | Silverado, Scottsdale, Custom |
| 1981 - 1986 | Chevrolet | C10 Suburban | Custom |
| 1975 - 1980 | Chevrolet | C10 Suburban | Custom Deluxe |
| 1981 | Chevrolet | C10 Suburban | Deluxe |
| 1975 - 1986 | Chevrolet | C10 Suburban | Scottsdale, Silverado |
| 1976 | Chevrolet | K5 Blazer | Base |
| 1981 - 1982 | Chevrolet | K5 Blazer | Custom |
| 1975 - 1980 | Chevrolet | K5 Blazer | Custom Deluxe, Cheyenne |
| 1981 | Chevrolet | K5 Blazer | Deluxe |
| 1978 - 1982 | Chevrolet | K5 Blazer | Silverado |
| 1987 | Chevrolet | R10 | Silverado, Scottsdale, Custom Deluxe |
| 1987 | Chevrolet | R10 Suburban | Scottsdale, Silverado, Custom Deluxe |
| 1977 - 1978 | GMC | C15 | Heavy Half |
| 1975 - 1978 | GMC | C15 | High Sierra, Base, Sierra Classic, Sierra Grande |
| 1977 | GMC | C15 | Indy Hauler |
| 1978 | GMC | C15 | Street Coupe |
| 1975 - 1978 | GMC | C15 Suburban | Sierra Classic, Base, Sierra Grande, High Sierra |
| 1979 - 1980 | GMC | C1500 | Heavy Half |
| 1979 - 1986 | GMC | C1500 | Sierra Classic, Base, High Sierra |
| 1979 - 1982 | GMC | C1500 | Street Coupe, Sierra Grande |
| 1979 - 1986 | GMC | C1500 Suburban | Base, Sierra Classic, High Sierra |
| 1979 - 1982 | GMC | C1500 Suburban | Sierra Grande |
| 1975 - 1984 | GMC | Jimmy | High Sierra, Sierra Classic, Base |
| 1975 - 1982 | GMC | Jimmy | Sierra Grande |
| 1978 - 1982 | GMC | Jimmy | Street Coupe |
| 1975 - 1978 | GMC | P15 | Base, Value Van |
| 1979 - 1980 | GMC | P1500 | Value Van, Base |
| 1987 | GMC | R1500 | Sierra Classic, Base, High Sierra |
| 1987 | GMC | R1500 Suburban | Sierra Classic, High Sierra, Base |
Wilwood FNSL4R Rear P-Brk Kit, 12.88", Drilled, Chevy C-10, 2.42 Offset 5-lug
Sale price$1,949.74 USD
Regular price$2,180.91 USD
