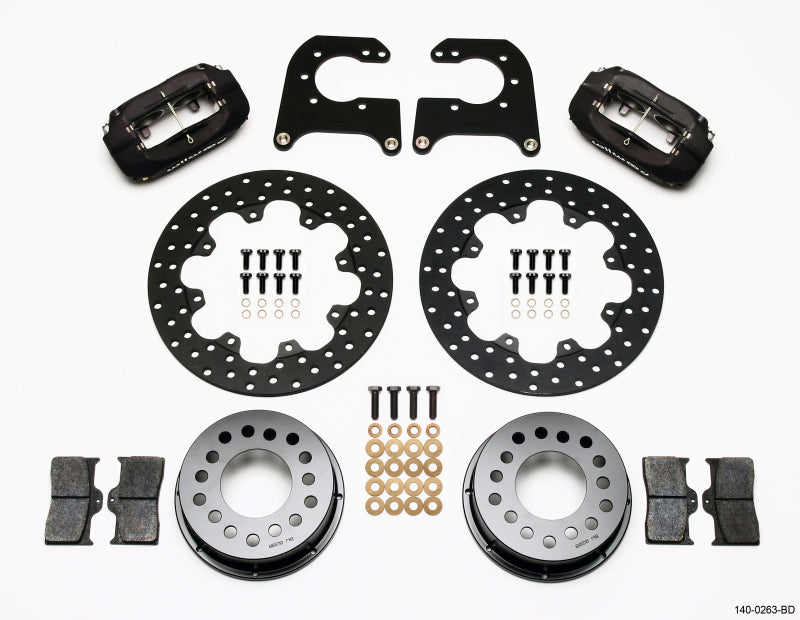

Wilwood FDL Rear Drag Kit,Drilled Rotor Chev 12 Bolt w C-Clips *Discontinued

Forged Dynalite Rear Drag Brake Kit

FDL Rear Drag kits are true bolt-on kits available for all popular muscle car rear axles and aftermarket rears built with custom axle ends. Kits in this group are purpose built for sportsman category door cars and others with full functional four-wheel disc brakes. Based on the specific style of housing end and axle offset, mounting kits securely install the four-piston forged Dynalite caliper over 3/8” plate steel rotors that are mounted to the axle with an aluminum hat. Standard kits include solid face rotors, with optional drilled rotor kits available to further reduce driveline weight in classes where every weight advantage is necessary.

Specifications

Rear End Axle: 12 Bolt

Axle Offset: 2.91

Mount Type: Lug

Caliper Type: 4 - Type III Ano

Rotor Diameter: 11.44

Min Wheel Diameter Req'd*: 15

Calipers

Left Hand - Part No: 120-6818

Right Hand - Part No: 120-6818

Type: Forged Dynalite

Finish Color: Type III Ano

Piston Count: 4

Piston 1 Bore (in): 1.75

Piston 2 Bore (in): 1.75

Piston Area (In²): 4.80

Piston Type: Stainless

Mount Type: Lug

Brake Pad Plate: 7112

Brake Pad Area (In²): 6.36

Brake Pad Volume (In³): 2.1

Pad Compound: BP-10

Rotors

Left Hand - Part No: 160-1601

Right Hand - Part No: 160-1601

Type: Drilled Steel Rotor

Style: Drilled

Surface Finish: Black Oxide

Material: Steel

Outside Diameter (in): 11.44

Width (in): 0.35

Vane Count: Solid

Design Type: Solid

Bedded: No

Dynamically Balanced: No

Rotor Hats

Hat - Part No: 170-0208

Type: Drag Hat - Standard

Material: Aluminum

Finish Color: Black E-Coat

Hat Offset Dimension (in): 1.96

Bolt Circle 1: 5 X 4.50

Bolt Circle 2: 5 X 4.75

Bolt Circle 3: 5 X 5.00

Stud Diameter - BC 1: 0.52

Stud Diameter - BC 2: 0.52

Stud Diameter - BC 3: 0.52
