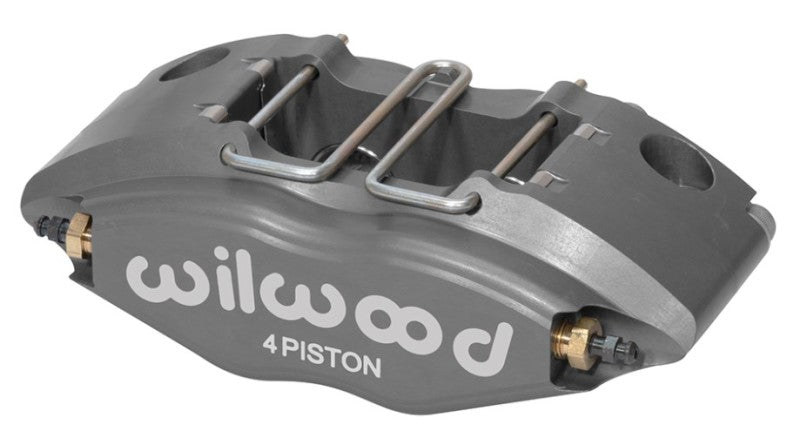

Wilwood Caliper-Powerlite, 1.25" Pistons, .790"/.860" Disc
Powerlite Radial Mount
Powerlite Radial Mount
The Powerlite four piston radial mount caliper starts at 2.26 pounds with a sleek profile, superior strength, lightweight and durable in higher temperature situations. Easily adapted to a wide range of sports, rally, and off road driving applications.
Strength comes from a combination of process and design. The process of stress-flow forging re-aligns the metal's grain structure within the contour of the caliper body. This eliminates the stresses and interruptions to the internal grain structure that occur when machining a straight block billet. The FEA generated radial transition design eliminates steps and shoulders in the area between the piston housing body and the caliper bridges. Incorporating a radius in this critical area substantially increases resistance to deflection and caliper separation under load.
The Powerlite uses a new 7912 type brake pad that is supported from the top by Quick-clip pad retainers. This eliminates the need for a pad support step in the bottom of the caliper and adds additional clearance for mounting closer to the hub on small wheel and rotor applications. The pad radius matches to rotor diameters between 9.45" (240,0 mm) and 11.75" (298,5 mm), and the caliper fits easily inside many 13.00" (330,2) wheel applications. The Quick-Clips also accommodate easy pad access without caliper removal. Brake pad compounds are available for the full range of sport and competition applications.
Specifications
| Pistons | |
|---|---|
| Piston Count: | 4 |
| Piston Area (in²): | 2.46 |
| Piston Type: | Stainless |
| Dust Boot: | No |
| Rotor Dimensions | |
| Rotor Width(in): | 0.86 |
| Rotor Diameter(in): | 11 |
| Pad Dimensions | |
| Pad Area (in²): | 5 |
| Pad Volume (in³): | 1.8 |
| Duty Rating & Material | |
| Material: | Aluminum |
| Weight(Lbs): | 2.8 |
| Colors & Finish | |
| Color: | Ano |
| Finish: | Type III Ano |
| Mounting | |
|---|---|
| Mount Center(in): | 5.08 |
| Mount Side: | Universal |
| Mount Type: | Radial |
| Rotor Compatibility | |
|---|---|
| Rotor Width(in): | 0.86 |
| Maximum Rotor Width(in): | 0.86 |
| Minimum Rotor Width(in): | 0.79 |
| Maximum Rotor Diameter(in): | 11 |
| Minimum Rotor Diameter(in): | 9.45 |
| Brake Pad Specifications | |
|---|---|
| Brake Pad Type 1: | 7912 |
| Brake Pad Type 2: | N-A |
| Brake Pad Type 3: | N-A |
| Total Pad Area (in²): | 5 |
| Total Pad Volume (in³): | 1.8 |
| Piston Specifications | |
|---|---|
| Piston 1 Bore(in): | 1.25 |
| Piston 2 Bore(in): | 1.25 |
| Total Piston Area (in²): | 2.46 |
| Mounting Specifications | |
|---|---|
| Mount Type: | Radial |
| Mount Side: | Universal |
| Mount Center(in): | 5.08 |
| Mount Hole Size(in): | 0.4 |
| Mount Height(in): | 1.56 |
| Inlet Thread Size: | 1/8-27 NPT |
