Wilwood Caliper-Kart, 1.00" Pistons, .50" Disc
Wilwood Caliper-Kart, 1.00" Pistons, .50" Disc
Out of stock
Not sure this is the right part? Ask us to check fitment. Include your year, make, model, engine and manufacturer part number.
Need this part?
This item is currently unavailable. Ask us about availability or help finding a suitable replacement.
Shipping & returns
This selection is unavailable. Ask us to confirm availability and timing.
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policyBillet Go-Kart

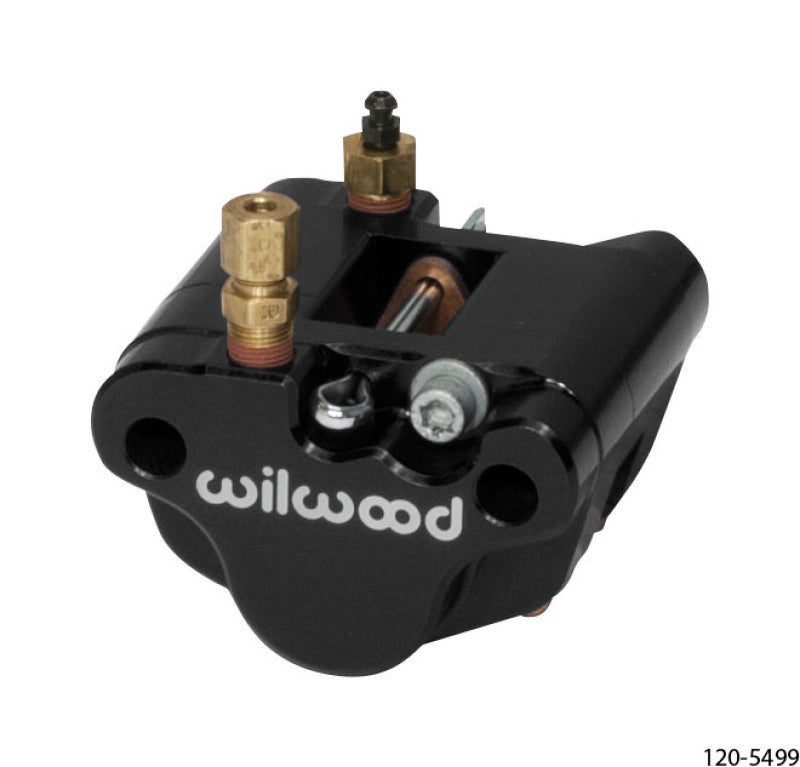

Our Kart/Jr. Dragster Caliper is designed specifically for racing. A unique self retracting and adjusting piston system has been incorporated which enables the piston to retract as the brake line pressure is reduced. The caliper can be mounted on either side of the vehicle and comes in three rotor widths. At just 1.20 pounds, the caliper comes with high performance, high friction brake pads. Additional features include deep cup stainless steel piston for reduced heat transfer, cotter pin, pad retainer, internal fluid passage and blue anodized finish. A specifically designed master cylinder is also available for use with this caliper.
Specifications
| Pistons | |
|---|---|
| Piston Count: | 2 |
| Piston Area (in²): | 0.79 |
| Piston Type: | Stainless |
| Dust Boot: | No |
| Rotor Dimensions | |
| Rotor Width(in): | 0.5 |
| Rotor Diameter(in): | 8.75 |
| Pad Dimensions | |
| Pad Area (in²): | 1.88 |
| Pad Volume (in³): | 0.34 |
| Duty Rating & Material | |
| Material: | Aluminum |
| Weight(Lbs): | 1.5 |
| Colors & Finish | |
| Color: | Black |
| Finish: | Black Anodize |
| Mounting | |
|---|---|
| Mount Center(in): | 2.25 |
| Mount Side: | Universal |
| Mount Type: | Body |
| Rotor Compatibility | |
|---|---|
| Rotor Width(in): | 0.5 |
| Maximum Rotor Width(in): | 0.5 |
| Minimum Rotor Width(in): | 0.38 |
| Maximum Rotor Diameter(in): | 8.75 |
| Minimum Rotor Diameter(in): | 8 |
| Brake Pad Specifications | |
|---|---|
| Brake Pad Type 1: | 4308 |
| Brake Pad Type 2: | N-A |
| Brake Pad Type 3: | N-A |
| Total Pad Area (in²): | 1.88 |
| Total Pad Volume (in³): | 0.34 |
| Mounting Specifications | |
|---|---|
| Mount Type: | Body |
| Mount Side: | Universal |
| Mount Center(in): | 2.25 |
| Mount Hole Size(in): | 0.39 |
| Inlet Thread Size: | 1/8-27 NPT |
