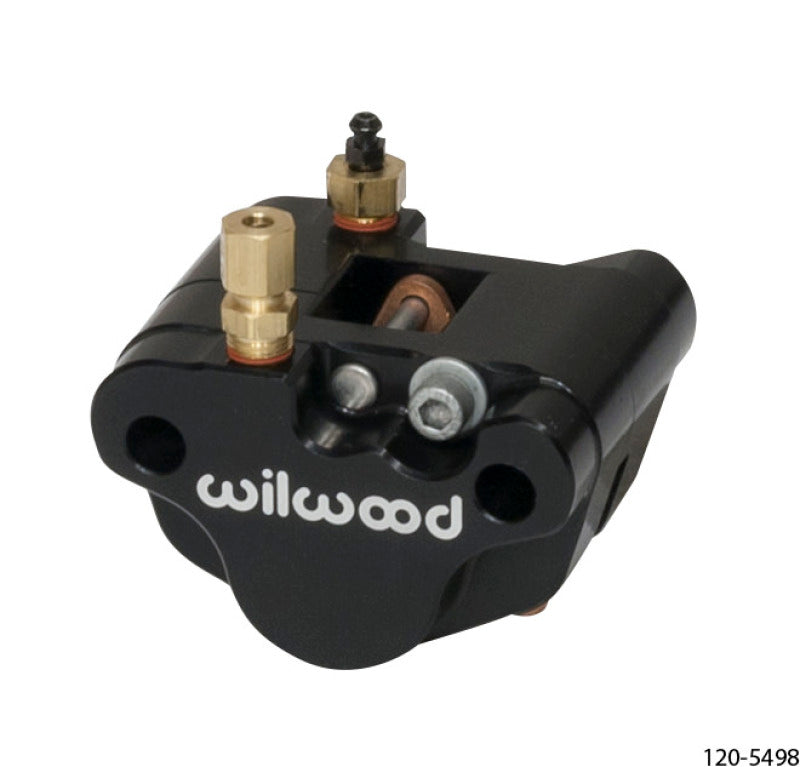

Wilwood Caliper-Kart, 1.00" Pistons, .125" Disc
Wilwood Caliper-Kart, 1.00" Pistons, .125" Disc
Shipping calculated at checkout.
To United StatesChange
Final options and totals are confirmed at checkout.
68 in stock
Shipping & returns
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policyReturns
Need help with a return? Request authorization within 30 days of delivery for eligible unused, uninstalled items. See details for exclusions and applicable fees.
Read the full return policyReturn details & how to start
Request return authorization (RMA) within 30 days of delivery for eligible items. Keep items unused and uninstalled, with original packaging and accessories. Electronics, liquids, special orders and other categories are excluded.
Email sales@frsport.com with RETURN and your order number in the subject to request an RMA. Please wait for return authorization before sending your item back.
Wrong part/size or change of mind: a 20% return processing fee applies, plus applicable shipping costs.
Original shipping is non-refundable. For orders shipped free, the actual outbound shipping cost is deducted from the refund. Return shipping is prepaid by the customer.
After payment capture, cancellations and refunds generally incur a 5% processing fee, except for our error, confirmed defects or confirmed carrier loss. The 5% and 20% fees do not stack; only the greater applicable fee applies. Store credit waives the 5% fee, but applicable return fees remain.
Missing, incorrect or transit-damaged items: report within 3 business days of receipt with photos of the product and packaging.
For defective items, contact us for help with the manufacturer's warranty process. The manufacturer decides the claim.
Specifications
Product details shared across all variants.
- Product type
- Disc Brake Caliper Piston
- Category
- Brake Calipers
- Item condition
- New
- Manufacturer type
- Aftermarket
- Shipping dimensions (L × W × H)
- Shipping weight
- 1.5 lb
- Barcode
- 889545004168
Billable shipping weight; may include dimensional weight.
Billet Go-Kart
Our Kart/Jr. Dragster Caliper is designed specifically for racing. A unique self retracting and adjusting piston system has been incorporated which enables the piston to retract as the brake line pressure is reduced. The caliper can be mounted on either side of the vehicle and comes in three rotor widths. At just 1.20 pounds, the caliper comes with high performance, high friction brake pads. Additional features include deep cup stainless steel piston for reduced heat transfer, cotter pin, pad retainer, internal fluid passage and blue anodized finish. A specifically designed master cylinder is also available for use with this caliper.
Specifications
| Pistons | |
|---|---|
| Piston Count: | 2 |
| Piston Area (in²): | 0.79 |
| Piston Type: | Stainless |
| Dust Boot: | No |
| Rotor Dimensions | |
| Rotor Width(in): | 0.12 |
| Rotor Diameter(in): | 8.75 |
| Pad Dimensions | |
| Pad Area (in²): | 1.88 |
| Pad Volume (in³): | 0.34 |
| Duty Rating & Material | |
| Material: | Aluminum |
| Weight(Lbs): | 1.5 |
| Colors & Finish | |
| Color: | Black |
| Finish: | Black Anodize |
| Mounting | |
|---|---|
| Mount Center(in): | 2.25 |
| Mount Side: | Universal |
| Mount Type: | Body |
| Rotor Compatibility | |
|---|---|
| Rotor Width(in): | 0.12 |
| Maximum Rotor Width(in): | 0.12 |
| Minimum Rotor Width(in): | 0.1 |
| Maximum Rotor Diameter(in): | 8.75 |
| Minimum Rotor Diameter(in): | 8 |
| Brake Pad Specifications | |
|---|---|
| Brake Pad Type 1: | 4308 |
| Brake Pad Type 2: | N-A |
| Brake Pad Type 3: | N-A |
| Total Pad Area (in²): | 1.88 |
| Total Pad Volume (in³): | 0.34 |
| Piston Specifications | |
|---|---|
| Piston 1 Bore(in): | 1 |
| Total Piston Area (in²): | 0.79 |
| Mounting Specifications | |
|---|---|
| Mount Type: | Body |
| Mount Side: | Universal |
| Mount Center(in): | 2.25 |
| Mount Hole Size(in): | 0.39 |
| Inlet Thread Size: | 1/8-27 NPT |
