Wilwood Caliper-PS 1-RH, 1.00" Pistons, .200" Disc *Discontinued
Wilwood Caliper-PS 1-RH, 1.00" Pistons, .200" Disc *Discontinued
Shipping calculated at checkout.
To United StatesChange
Final options and totals are confirmed at checkout.
68 in stock
Not sure this is the right part? Ask us to check fitment. Include your year, make, model, engine and manufacturer part number.
Shipping & returns
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policyPS-1

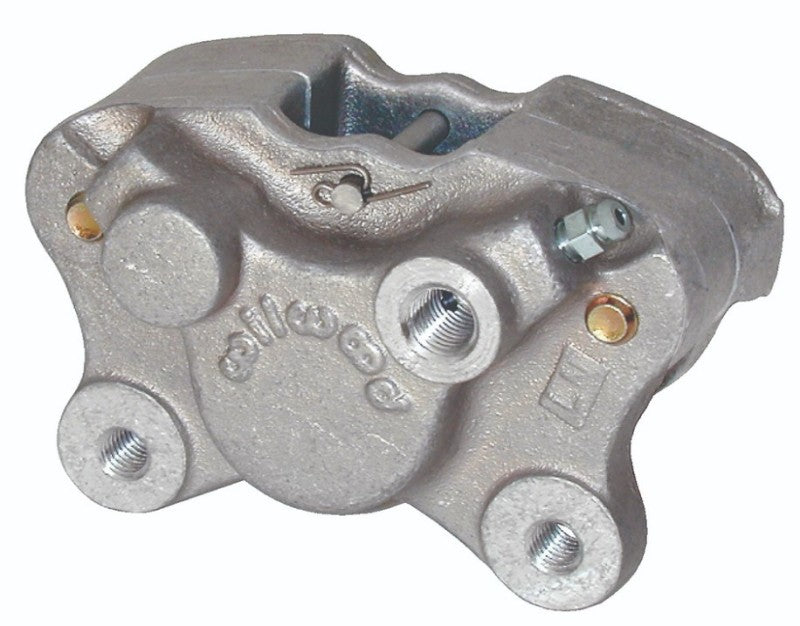

The PS-1 Caliper is compact, lightweight (.93 pounds) and combines the strength of cast aluminum construction with a sleek low profile design. This caliper utilizes two stainless steel deep cup pistons to minimize heat transfer from the .30" thick pad to the brake fluid while employing high temperature square piston seals to control piston retraction. Internal crossover brake fluid passages eliminate the use of external crossover tubes. The PS-1 fits rotors with diameters ranging from 6.00" to 9.00", thickness sizes from .15" to .20".
Specifications
| Pistons | |
|---|---|
| Piston Count: | 2 |
| Piston Area (in²): | 0.79 |
| Piston Type: | Stainless |
| Dust Boot: | No |
| Rotor Dimensions | |
| Rotor Width(in): | 0.19 |
| Rotor Diameter(in): | 9 |
| Pad Dimensions | |
| Pad Area (in²): | 2 |
| Pad Volume (in³): | 0.36 |
| Duty Rating & Material | |
| Material: | Aluminum |
| Weight(Lbs): | 1.1 |
| Colors & Finish | |
| Color: | Clear |
| Finish: | Clear Anodize |
| Mounting | |
|---|---|
| Mount Center(in): | 2.25 |
| Mount Side: | Right Hand |
| Mount Type: | Lug |
| Rotor Compatibility | |
|---|---|
| Rotor Width(in): | 0.19 |
| Maximum Rotor Width(in): | 0.2 |
| Minimum Rotor Width(in): | 0.15 |
| Maximum Rotor Diameter(in): | 9 |
| Minimum Rotor Diameter(in): | 6 |
| Brake Pad Specifications | |
|---|---|
| Brake Pad Type 1: | 4108 |
| Brake Pad Type 2: | N-A |
| Brake Pad Type 3: | N-A |
| Total Pad Area (in²): | 2 |
| Total Pad Volume (in³): | 0.36 |
| Mounting Specifications | |
|---|---|
| Mount Type: | Lug |
| Mount Side: | Right Hand |
| Mount Center(in): | 2.5 |
| Mount Hole Size(in): | 0.32 |
| Mount Height(in): | 1.22 |
| Inlet Thread Size: | 1/8-27 NPT |
