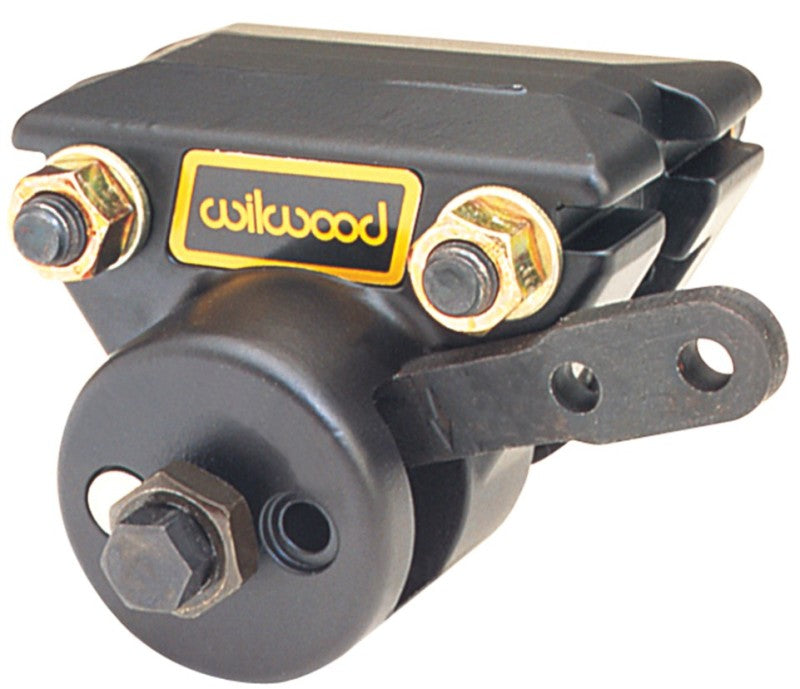

Wilwood Caliper-Mechanical Spot, LH, 1.62" Bore, .50" Disc
Wilwood Caliper-Mechanical Spot, LH, 1.62" Bore, .50" Disc
Out of stock
Not sure this is the right part? Ask us to check fitment. Include your year, make, model, engine and manufacturer part number.
Need this part?
This item is currently unavailable. Ask us about availability or help finding a suitable replacement.
Shipping & returns
This selection is unavailable. Ask us to confirm availability and timing.
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policyMech Spot Caliper
Wilwood's single piston floating Mechanical Spot Caliper is compact,lightweight and widely used in Parking Brake, Karting, Sport Utility Vehicles and Light Industrial applications. Its two position, cam-actuated lever permits right or left, front or rear mounting, and accommodates two settings for leverage adjustment.The 1.2 pound Mechanical Spot fits rotors with diameters from 6.00" to 13.00", thickness from .25" to .81", and is supplied with pads installed. The caliper is available black or polished finishes.
Specifications
| Pistons | |
|---|---|
| Piston Count: | 0 |
| Piston Area (in²): | 0.00 |
| Piston Type: | N/A |
| Dust Boot: | No |
| Rotor Dimensions | |
| Rotor Width(in): | 0.5 |
| Rotor Diameter(in): | 13 |
| Pad Dimensions | |
| Pad Area (in²): | 0.9 |
| Pad Volume (in³): | 0.31 |
| Duty Rating & Material | |
| Material: | Aluminum |
| Weight(Lbs): | 1.7 |
| Colors & Finish | |
| Color: | Black |
| Finish: | Black E-Coat |
| Mounting | |
|---|---|
| Mount Center(in): | 2.95 |
| Mount Side: | Left Hand |
| Mount Type: | Floating |
| Rotor Compatibility | |
|---|---|
| Rotor Width(in): | 0.5 |
| Maximum Rotor Width(in): | 0.5 |
| Minimum Rotor Width(in): | 0.44 |
| Maximum Rotor Diameter(in): | 13 |
| Minimum Rotor Diameter(in): | 6 |
| Brake Pad Specifications | |
|---|---|
| Brake Pad Type 1: | 4209 |
| Brake Pad Type 2: | N-A |
| Brake Pad Type 3: | N-A |
| Total Pad Area (in²): | 0.9 |
| Total Pad Volume (in³): | 0.31 |
| Mounting Specifications | |
|---|---|
| Mount Type: | Floating |
| Mount Side: | Left Hand |
| Mount Center(in): | 2.95 |
| Inlet Thread Size: | N-A |
