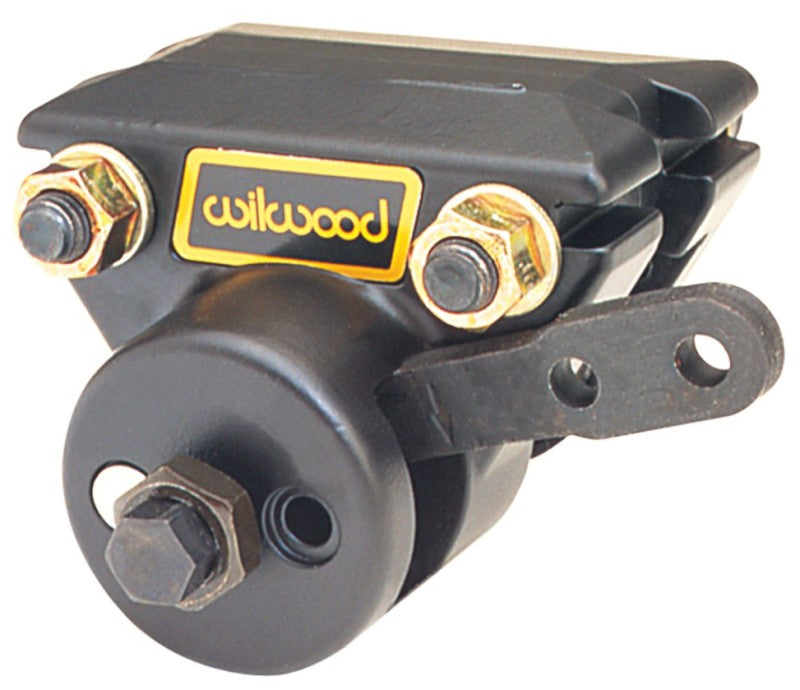

Wilwood Caliper-Mechanical Spot, LH, 1.62" Bore, .81" Disc
Mech Spot Caliper
Wilwood's single piston floating Mechanical Spot Caliper is compact,lightweight and widely used in Parking Brake, Karting, Sport Utility Vehicles and Light Industrial applications. Its two position, cam-actuated lever permits right or left, front or rear mounting, and accommodates two settings for leverage adjustment.The 1.2 pound Mechanical Spot fits rotors with diameters from 6.00" to 13.00", thickness from .25" to .81", and is supplied with pads installed. The caliper is available black or polished finishes.
Specifications
| Pistons | |
|---|---|
| Piston Count: | 0 |
| Piston Area (in²): | 0.00 |
| Piston Type: | N/A |
| Dust Boot: | No |
| Rotor Dimensions | |
| Rotor Width(in): | 0.81 |
| Rotor Diameter(in): | 13 |
| Pad Dimensions | |
| Pad Area (in²): | 0.9 |
| Pad Volume (in³): | 0.31 |
| Duty Rating & Material | |
| Material: | Aluminum |
| Weight(Lbs): | 1.7 |
| Colors & Finish | |
| Color: | Black |
| Finish: | Black E-Coat |
| Mounting | |
|---|---|
| Mount Center(in): | 2.95 |
| Mount Side: | Left Hand |
| Mount Type: | Floating |
| Rotor Compatibility | |
|---|---|
| Rotor Width(in): | 0.81 |
| Maximum Rotor Width(in): | 0.81 |
| Minimum Rotor Width(in): | 0.75 |
| Maximum Rotor Diameter(in): | 13 |
| Minimum Rotor Diameter(in): | 6 |
| Brake Pad Specifications | |
|---|---|
| Brake Pad Type 1: | 4209 |
| Brake Pad Type 2: | N-A |
| Brake Pad Type 3: | N-A |
| Total Pad Area (in²): | 0.9 |
| Total Pad Volume (in³): | 0.31 |
| Mounting Specifications | |
|---|---|
| Mount Type: | Floating |
| Mount Side: | Left Hand |
| Mount Center(in): | 2.95 |
| Inlet Thread Size: | N-A |
Wilwood Caliper-Mechanical Spot, LH, 1.62" Bore, .81" Disc
Sale price$184.96 USD
Regular price$199.76 USD
