Wilwood Caliper-DPC56-Black,1.25" Piston,1.04" Disc *Discontinued
Wilwood Caliper-DPC56-Black,1.25" Piston,1.04" Disc *Discontinued
Shipping calculated at checkout.
To United StatesChange
Final options and totals are confirmed at checkout.
Low stock: 2 left
Shipping & returns
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policyReturns
Need help with a return? Request authorization within 30 days of delivery for eligible unused, uninstalled items. See details for exclusions and applicable fees.
Read the full return policyReturn details & how to start
Request return authorization (RMA) within 30 days of delivery for eligible items. Keep items unused and uninstalled, with original packaging and accessories. Electronics, liquids, special orders and other categories are excluded.
Email sales@frsport.com with RETURN and your order number in the subject to request an RMA. Please wait for return authorization before sending your item back.
Wrong part/size or change of mind: a 20% return processing fee applies, plus applicable shipping costs.
Original shipping is non-refundable. For orders shipped free, the actual outbound shipping cost is deducted from the refund. Return shipping is prepaid by the customer.
After payment capture, cancellations and refunds generally incur a 5% processing fee, except for our error, confirmed defects or confirmed carrier loss. The 5% and 20% fees do not stack; only the greater applicable fee applies. Store credit waives the 5% fee, but applicable return fees remain.
Missing, incorrect or transit-damaged items: report within 3 business days of receipt with photos of the product and packaging.
For defective items, contact us for help with the manufacturer's warranty process. The manufacturer decides the claim.
Specifications
- Shipping dimensions (L × W × H)
- Shipping weight
- 4.1 lb
- Barcode
- 889545071078
Billable shipping weight; may include dimensional weight.

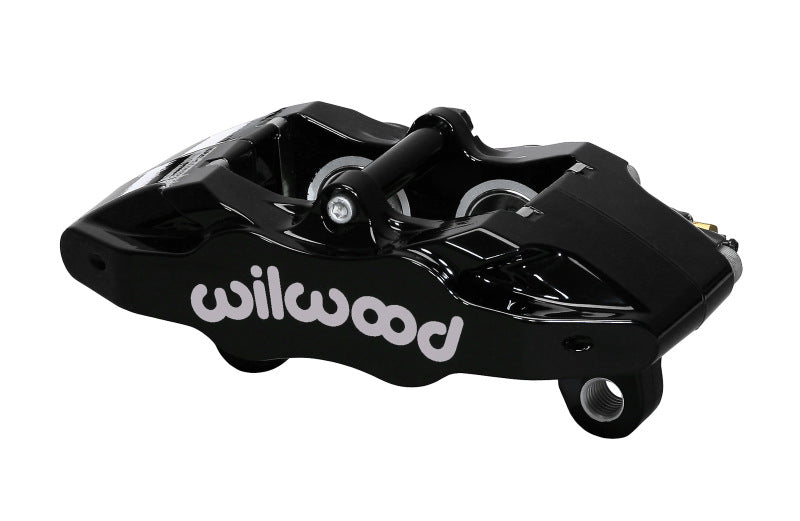

DPC56 rear calipers are engineered as a high performance street and custom replacement for Corvettes and hot rods using Corvette suspension. DPC56 calipers add high-tech styling and provide the positive response and balanced pad loading provided by a fixed mount, four piston caliper. The DPC56 is a direct bolt-on replacement for the OE calipers on all models of the C5 from 1997 to 2004, and all base model C6’s from 2005 to 2013 using 12.00” diameter rear rotors. The calipers attach directly to the Corvette spindle without the need for brackets or adapters and accept all types of OE banjo bolt style brake hoses.
Using modern computer modeling and design technology, the DPC56 is based on the top performing DynaPro low profile caliper series. These calipers feature an ultra-high strength forged aluminum body, stainless steel pistons, internal piston damping springs, internal bore seals, stainless steel bridge wear plates, and a single screw bleed system. All DPC56 calipers accept the same type 4812 12mm thick brake pads as used in all low profile DynaPro series calipers.
The piston volume of the DPC56 is matched to the piston volume found in the OE calipers. This makes it fully compatible with the output of the OE master cylinder and the ABS system. Front to rear brake bias and pedal travel remain as stock. For custom hot rod builds, this caliper volume is also easily matched to other styles of manual or power brake pedals with proper master cylinder sizing.
Specifications
Pistons
Piston Count: 4
Piston Area (in²): 2.46
Piston Type: Stainless
Dust Boot: No
Rotor Dimensions
Rotor Width(in): 1.04
Rotor Diameter(in): 12
Pad Dimensions
Pad Area (in²): 5.1
Pad Volume (in³): 1.71
Duty Rating & Material
Material: Aluminum
Weight(Lbs): 6.3
Colors & Finish
Color: Black
Finish: Black Powder Coat
Mounting
Mount Center(in): 5.04
Mount Side: Universal
Mount Type: Lug
Rotor Compatibility
Rotor Width(in): 1.04
Maximum Rotor Width(in): 1.04
Minimum Rotor Width(in): 0.98
Maximum Rotor Diameter(in): 12
Minimum Rotor Diameter(in): 12
Piston Specifications
Piston 1 Bore(in): 1.25
Piston 2 Bore(in): 1.25
Total Piston Area (in²): 2.46
Brake Pad Specifications
Brake Pad Type: 1 4812
Brake Pad Type: 2 N-A
Brake Pad Type: 3 N-A
Total Pad Area (in²): 5.1
Total Pad Volume (in³): 1.71
Mounting Specifications
Mount Type: Lug
Mount Side: Universal
Mount Center(in): 5.04
Inlet Thread Size: M10 x 1.00
