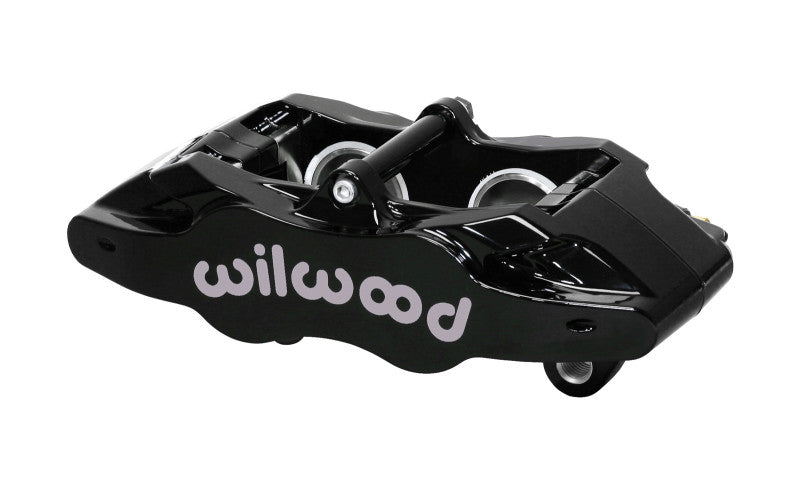

Wilwood Caliper-SLC56 - Black, 1.62" Piston, 1.25" Disc

SLC56 front calipers are engineered as a high performance street and custom replacement for Corvettes and hot rods using Corvette suspension. SLC56 calipers add high-tech styling and provide the positive response and balanced pad loading provided by a fixed mount, four piston caliper. The SLC56 is a direct bolt-on replacement for the OE calipers on all models of the C5 from 1997 to 2004, and all base model C6’s from 2005 to 2013 using 12.8” diameter front rotors. The calipers attach directly to the Corvette spindle without the need for brackets or adapters and accept all types of OE banjo bolt style brake hoses.

Using modern computer modeling and design technology, the SLC56 is based on the top performing Superlite caliper series. These calipers feature an ultra-high strength forged aluminum body, stainless steel pistons, internal piston damping springs, internal bore seals, stainless steel bridge wear plates, and a single screw bleed system. All SLC56 calipers accept the same type 7416 16mm thick brake pads as used in all narrow profile Superlite series calipers.

The piston volume of the SLC56 is matched to the piston volume found in the OE calipers. This makes it fully compatible with the output of the OE master cylinder and the ABS system. Front to rear brake bias and pedal travel remain as stock. For custom hot rod builds, this caliper volume is also easily matched to other styles of manual or power brake pedals with proper master cylinder sizing.

Features:

Rotor
Piston Count: 4
Piston Area (in²): 4.12
Piston Type: Stainless
Dust Boot: No

Rotor Dimensions
Rotor Width(in): 1.25
Rotor Diameter(in): 12.8

Pad Dimensions
Pad Area (in²): 8.2
Pad Volume (in³): 3.8

Duty Rating & Material
Material: Aluminum
Weight(Lbs): 6.3

Colors & Finish
Color: Black
Finish: Black Powder Coat
