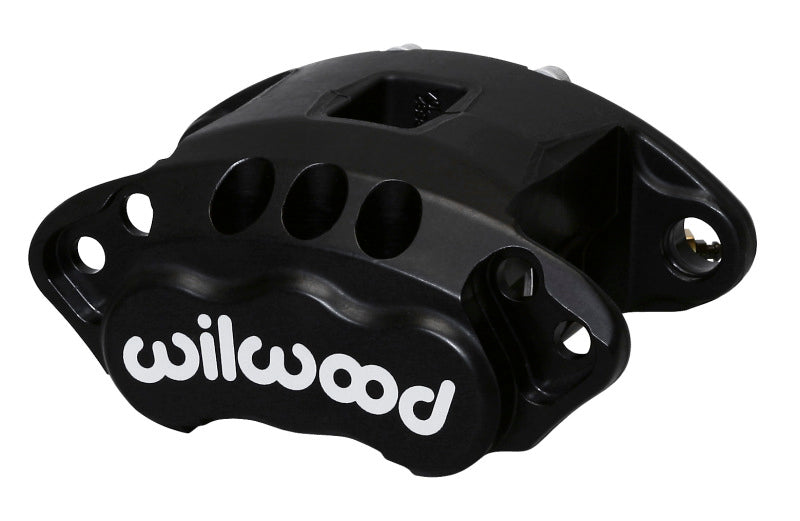

Wilwood Caliper-GM D154-R,2.50" Piston,1.04" Disc *Discontinued
Wilwood Caliper-GM D154-R,2.50" Piston,1.04" Disc *Discontinued
Shipping calculated at checkout.
To United StatesChange
Final options and totals are confirmed at checkout.
128 in stock
Not sure this is the right part? Ask us to check fitment. Include your year, make, model, engine and manufacturer part number.
Shipping & returns
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policyWilwood's newest race caliper, the D154-R starts with a forged aluminum Type III hard anodized body with stainless steel piston. With a choice of 2.50" or 2.00" pistons and covering rotors from .81" to 1.04" thickness up to 12.19" diameter. Caliper fluid inlet port centered directly behind the piston eliminates any interference with slide pins. Lower deflection rate and higher volumetric efficiency than all the competitions' heavier cast models, D154-R calipers with a 2.50" piston weighs only 3.3 pounds and use standard metric D154 pads. Caliper mounting uses stock height and offset.
| Piston Count: | 1 |
| Piston Area (in²): | 4.90 |
| Piston Type: | Stainless |
| Dust Boot: | No |
| Rotor Width(in): | 1.04 |
| Rotor Diameter(in): | 12.19 |
| Pad Area (in²): | 8.7 |
| Pad Volume (in³): | 2.9 |
| Material: | Aluminum |
| Weight(Lbs): | 3.3 |
| Color: | Ano |
| Finish: | Type III Ano |
| Mount Center(in): | 5.46 |
| Mount Side: | Universal |
| Mount Type: | Floating |
