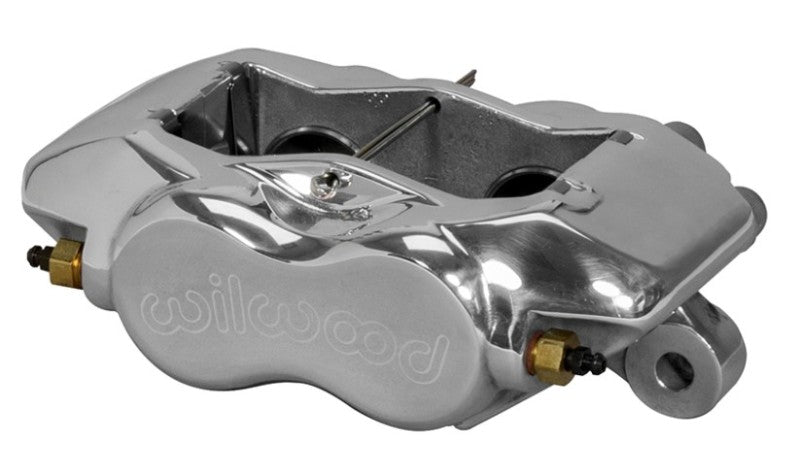

Wilwood Caliper-FDLI, Polished, 1.75" Pistons, .81" Disc

Forged Dynalite Internal Polished

The Forged Billet Dynalite Internal is the next generation enhancement of the venerable Forged Dynalite series calipers. Designed with a single split bridge and spacer less design to enhance strength and appearance. These latest applied developments and innovations in caliper design and manufacturing processes have resulted in substantial improvements in strength and performance over all comparable models. This new spacer-less design of the Forged Dynalite series of calipers, makes this the stiffest and most visual pleasing design so far.

The Forged Billet Dynalite Internal is the strongest caliper in the class, with weights starting at 3.00 pounds. The process of stress-flow forging re-aligns the metal's grain structure within the contour of the caliper body. This process eliminates the breaks and interruptions to the internal grain structure that occur when machining a straight block billet. The FEA generated radial transition design eliminates steps and shoulders in the area between the piston housing body and the caliper bridges. Incorporating a radius in this transition area substantially increases resistance to deflection and caliper separation under load. Structural deflection and volume displacement tests have proven the Forged Dynalite to outperform all existing styles of this popular caliper size.

Specifications

Pistons

Piston Count: 4

Piston Area (in²): 4.80

Piston Type: Stainless

Dust Boot: No



Rotor Dimensions

Rotor Width (in): 0.81

Rotor Diameter(in): 13.06



Pad Dimensions

Pad Area (in²): 6.36

Pad Volume (in³): 2.1



Duty Rating & Material

Material: Aluminum

Weight(Lbs): 3.36



Colors & Finish

Color: Polished

Finish: Polish



Mounting

Mount Center(in): 5.25

Mount Side: Universal

Mount Type: Lug



Rotor Compatibility

Rotor Width (in): 0.81

Maximum Rotor Width (in): 0.83

Minimum Rotor Width (in): 0.75

Maximum Rotor Diameter(in): 13.06

Minimum Rotor Diameter(in): 10



Piston Specifications

Piston 1 Bore (in): 1.75

Piston 2 Bore (in): 1.75

Total Piston Area (in²): 4.80



Brake Pad Specifications

Brake Pad Type 1: 7112

Brake Pad Type 2: N-A

Brake Pad Type 3: N-A

Total Pad Area (in²): 6.36

Total Pad Volume (in³): 2.1



Mounting Specifications

Mount Type: Lug

Mount Side: Universal

Mount Center(in): 5.25

Mount Hole Size(in): 0.39

Mount Height(in): 2.03

Inlet Thread Size: 1/8-27 NPT
