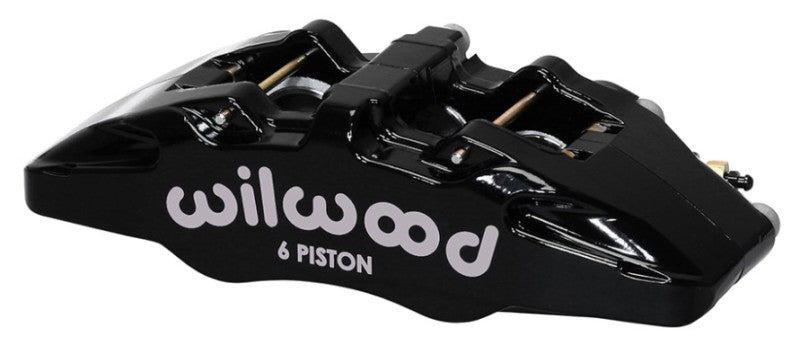

Wilwood Caliper-Forged DP6A, 5.25" mt.-L/H, 1.62/1.38"/1.38" Pistons, 1.10"
Forged Dynapro 6A Lug Mount
Wilwood's newest DynaPro DP6A Calipers combine pure-bred racing technology with contemporary design to deliver superior braking and high-tech style on a wide range of custom, show, and competition vehicles. This newest model in the DynaPro series features a reinforced triple bridge construction, with five high strength steel bridge bolts, making it the strongest and stiffest DP6 caliper ever built. Offers direct interchange with all 5.25" pattern lug mount DynaPro and Dynalite calipers. With Forged aluminum, six piston differential bore body and stainless steel pistons with high temperature seals. DP6A calipers accommodate rotors up to 13"inch diameter and widths from .38" to 1.10". DP6A calipers are available in gloss black or red powder coat, Type III Ano, or Wilwood's Quick-Silver nickel plating.
Specifications
| Pistons | |
|---|---|
| Piston Count: | 6 |
| Piston Area (in²): | 5.06 |
| Piston Type: | Stainless |
| Dust Boot: | No |
| Rotor Dimensions | |
| Rotor Width(in): | 1.1 |
| Rotor Diameter(in): | 13 |
| Pad Dimensions | |
| Pad Area (in²): | 7.3 |
| Pad Volume (in³): | 2.4 |
| Duty Rating & Material | |
| Material: | Aluminum |
| Weight(Lbs): | 5.25 |
| Colors & Finish | |
| Color: | Black |
| Finish: | Black Powder Coat |
| Mounting | |
|---|---|
| Mount Center(in): | 5.25 |
| Mount Side: | Left Hand |
| Mount Type: | Lug |
| Rotor Compatibility | |
|---|---|
| Rotor Width(in): | 1.1 |
| Maximum Rotor Width(in): | 1.13 |
| Minimum Rotor Width(in): | 1.04 |
| Maximum Rotor Diameter(in): | 13 |
| Minimum Rotor Diameter(in): | 10 |
| Piston Specifications | |
|---|---|
| Piston 1 Bore(in): | 1.62 |
| Piston 2 Bore(in: | 1.38 |
| Piston 3 Bore(in): | 1.38 |
| Total Piston Area (in²): | 5.06 |
| Brake Pad Specifications | |
|---|---|
| Brake Pad Type 1: | 6712 |
| Brake Pad Type 2: | N-A |
| Brake Pad Type 3: | N-A |
| Total Pad Area (in²): | 7.3 |
| Total Pad Volume (in³): | 2.4 |
| Mounting Specifications | |
|---|---|
| Mount Type: | Lug |
| Mount Side: | Left Hand |
| Mount Center(in): | 5.25 |
| Mount Hole Size(in): | 0.39 |
| Mount Height(in): | 2.03 |
| Inlet Thread Size: | 1/8-27 NPT |
