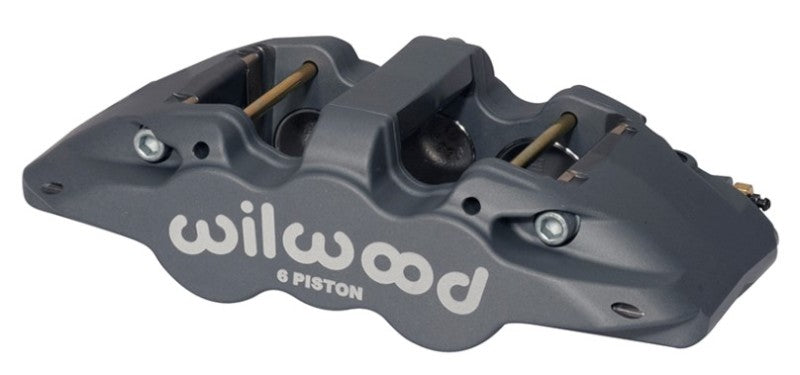

Wilwood Caliper-Aero6-R/H - Black Anodize (.80 Thk Pad), 1.62/1.12/1.12"
Aero6 Radial Mount
The new Aero6 forged six piston caliper delivers heavy duty stopping power for the road or track. The caliper incorporates race technology into a body design with widespread adaptability. Radial mounting, multiple options for piston volume, and a rotor diameter ranging from 12.88" to 15.00" give this caliper the versatility necessary to suit all types of heavy weight braking requirements. The new Aero4 is the latest innovation to the W4A / W6A series of calipers. It has been redesigned with internal fluid ports that eliminate the external fluid cross-over tubes and massive center bridge assembly.
The body of Aero series is stress-flow forged from a premium grade aluminum alloy billet. Stress-flow forging realigns the metal's internal grain structure to flow within the contour of the caliper body. This process eliminates the stresses and interruptions to the internal grain structure that occur when machining a straight block billet. The results are a caliper with superior clamping efficiency and ultimate strength against fatigue, stresses, and distortion under load.
Specifications
| Pistons | |
|---|---|
| Piston Count: | 6 |
| Piston Area (in²): | 4.04 |
| Piston Type: | Stainless |
| Dust Boot: | No |
| Rotor Dimensions | |
| Rotor Width(in): | 1.25 |
| Rotor Diameter(in): | 15 |
| Pad Dimensions | |
| Pad Area (in²): | 11.1 |
| Pad Volume (in³): | 6.6 |
| Duty Rating & Material | |
| Material: | Aluminum |
| Colors & Finish | |
| Color: | Black |
| Finish: | Black Anodize |
| Mounting | |
|---|---|
| Mount Center(in): | 7.09 |
| Mount Side: | Right Hand |
| Mount Type: | Radial |
| Rotor Compatibility | |
|---|---|
| Rotor Width(in): | 1.25 |
| Maximum Rotor Width(in): | 1.28 |
| Minimum Rotor Width(in): | 1.1 |
| Maximum Rotor Diameter(in): | 15 |
| Minimum Rotor Diameter(in): | 12.19 |
| Brake Pad Specifications | |
|---|---|
| Brake Pad Type 1: | 6620 |
| Brake Pad Type 2: | N-A |
| Brake Pad Type 3: | N-A |
| Total Pad Area (in²): | 11.1 |
| Total Pad Volume (in³): | 6.6 |
| Piston Specifications | |
|---|---|
| Piston 1 Bore(in): | 1.62 |
| Piston 2 Bore(in): | 1.12 |
| Piston 3 Bore(in): | 1.12 |
| Total Piston Area (in²): | 4.04 |
| Mounting Specifications | |
|---|---|
| Mount Type: | Radial |
| Mount Side: | Right Hand |
| Mount Center(in): | 7.09 |
| Mount Hole Size(in): | 0.45 |
| Mount Height(in): | 2.09 |
| Inlet Thread Size: | 1/8-27 NPT |
