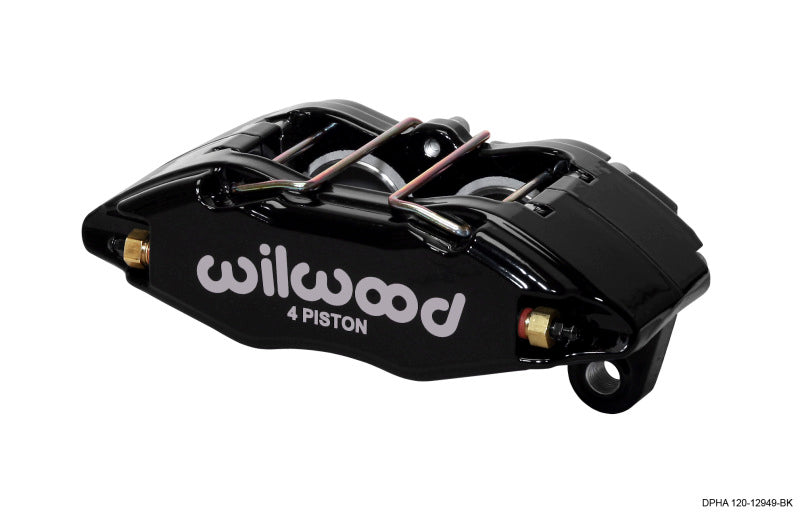

Forged DPHA Caliper for Honda/Acura
The Forged DynaPro Honda/Acura (DPHA) caliper represents the newest generation of calipers designed exclusively as a direct bolt-on for Honda and Acura models originally equipped with 262mm diameter rotors. These calipers bolt directly to the stock mounts on factory spindles, fit over the OE 262mm diameter rotor, accept the OE brake hose, and clear many factory aluminum 15" wheels. Designed around Wilwood's proven DynaPro series four piston calipers, the forged billet bodied DPHA caliper delivers high-strength clamping force and positive stopping power. Four stainless steel pistons provide fully balanced pad loading, along with the corrosion resistance and thermal retardant qualities of the stainless alloy that will keep your calipers cooler and running trouble free for many more miles. Calipers work perfectly with most OE master cylinders and will maintain ABS function. DPHA calipers are available with either black or red high-gloss, high-temp, brake fluid resistant sealed powder coat and feature Wilwood's signature logo.
Wilwood performance aftermarket brake components are loaded with the features and technology built from decades of domination in world motorsports, and the proven reliability of Zero PPM defect quality supply to leading OE manufacturers around the world. These components will not only optimize the braking performance, it will deliver mile after mile of reliable performance and service life on your Honda/Acura.
| Pistons |
|---|
| Piston Count |
4 |
| Piston Area (in²) |
4.12 |
| Piston Type |
Stainless |
| Dust Boot |
No |
| Rotor Dimensions |
|---|
| Rotor Width(in) |
0.83 |
| Rotor Diameter(in) |
10.32 |
| Pad Dimensions |
|---|
| Pad Area (in²) |
6.36 |
| Pad Volume (in³) |
2.1 |
| Duty Rating & Material |
|---|
| Material |
Aluminum |
| Weight(Lbs) |
3.9 |
| Colors & Finish |
|---|
| Color |
Black |
| Finish |
Black Powder Coat |
| Piston Specifications |
|---|
| Piston 1 Bore(in) |
1.62 |
| Piston 2 Bore(in |
1.62 |
| Piston 3 Bore(in) |
|
| Piston 4 Bore(in) |
|
| Total Piston Area (in²) |
4.12 |
| Rotor Compatibility |
|---|
| Rotor Width(in) |
0.83 |
| Maximum Rotor Width(in) |
0.83 |
| Minimum Rotor Width(in) |
0.78 |
| Maximum Rotor Diameter(in) |
10.32 |
| Minimum Rotor Diameter(in) |
10.32 |
| Brake Pad Specifications |
|---|
| Brake Pad Type 1 |
7812 |
| Brake Pad Type 2 |
N-A |
| Brake Pad Type 3 |
N-A |
| Total Pad Area (in²) |
6.36 |
| Total Pad Volume (in³) |
2.1 |
| Mount |
| Mounting Specifications |
|---|
| Mount Type |
Lug |
| Mount Side |
Universal |
| Mount Center(in) |
5.51 |
| Mount Hole Size(in) |
0.47 |
| Mount Height(in) |
2.37 |
| Inlet Thread Size |
M10 x 1.50 |
