Wilwood Caliper,SC10,1.06 Dual Bore w/ Pads *Discontinued
Wilwood Caliper,SC10,1.06 Dual Bore w/ Pads *Discontinued
sku: 10DBD | mpn: 120-11644
Regular price
$148.14
Regular price
Sale price
$148.14
Shipping calculated at checkout.
Low stock: 10 left
Emissions
This is not an emissions item.
Quantity
Couldn't load pickup availability
- Ships Worldwide
- Easy Returns
- Fast Shipping

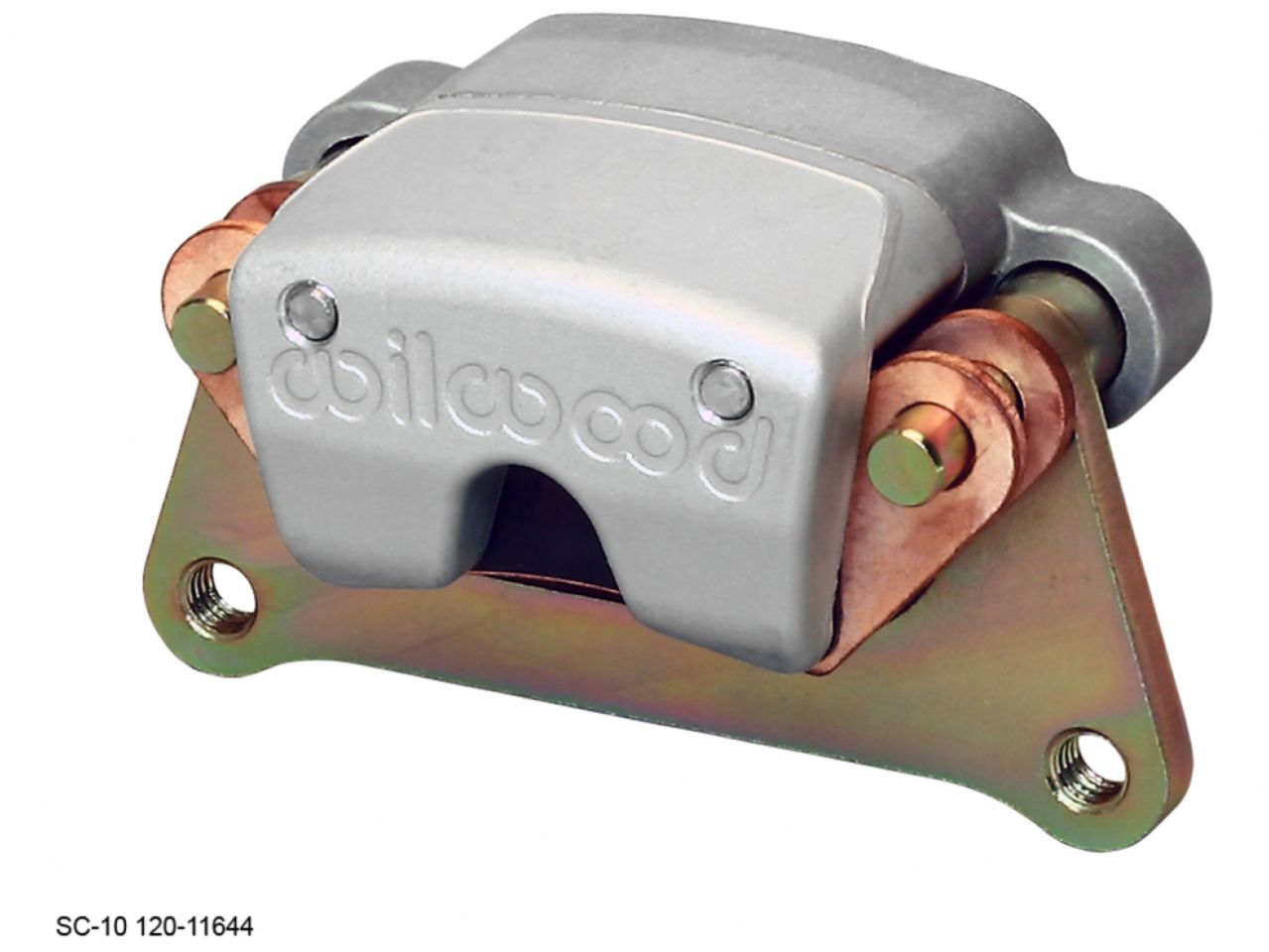

SC10 2 Piston
Designed, engineered and manufactured in the U.S.A., this floating die cast aluminum caliper is a strong, compact, inexpensive answer to the braking needs of recreational, agricultural and industrial vehicles. Features of this dual piston design with 1.06" bore size, dual inlet/ outlet fittings for versatility in mounting position by swapping the bleed screw and banjo bolt inlet. Inlets are threaded 10mm x 1.00. Sintered metallic brake pads and brackets are included.
Specifications| Piston Count: | 2 |
| Piston Area (in²): | 1.06 |
| Piston Type: | 1.06 |
| Dust Boot: | No |
| Rotor Width(in): | 0.25 |
| Rotor Diameter(in): | 9 |
| Material: | Aluminum |
| Weight(Lbs): | 1.8 |
| Color: | Clear |
| Finish: | Clear Anodize |
| Mount Center(in): | 4.3 |
| Mount Side: | Universal |
| Mount Type: | Floating |
