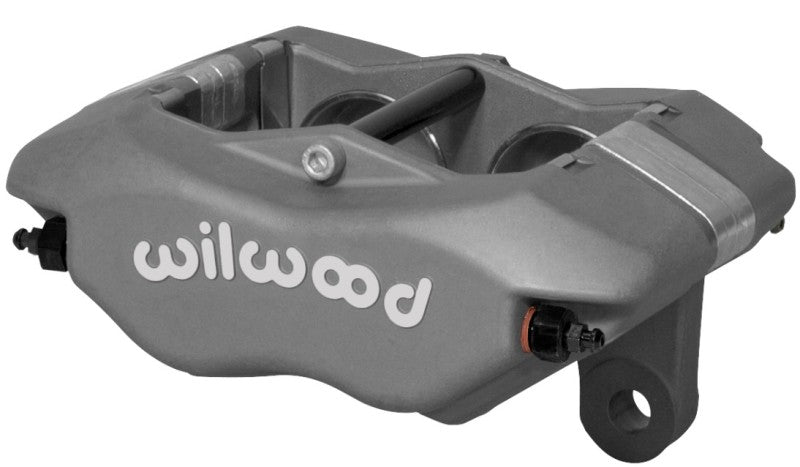

Wilwood Caliper-FNDL, 3.50" mt., 1.12" Pistons, .81" Disc

SKU: 04N7U | MPN:  120-11578
In stock
Sale price$166.77 USD Regular price$180.11 USD
Save $13.34

Forged Narrow Dynalite

Wilwood's new Forged Narrow Mount Dynalite (FNDL) calipers are ideal for and widely used in many competition applications including late models,modifieds, sprints, off road and road racing. Computer generated design and stress analysis technology, is the latest innovation from Wilwood providing substantial improvements in strength and performance over all comparable caliper models.Forged Narrow Mount Dynalites are the strongest calipers in the class. FNDL calipers are a direct replacement for all previous Wilwood NDL's and similar competitive brands with 3.50" centered mounting tabs. A total of five bolts provide superior bridge strength and positive retention of the top loaded 7816 or 7216 type brake pads. The full range of PolyMatrix pad compounds is available to match the brake response and heat range requirements of any competition application.

The process of stress-flow forging re-aligns the metal's grain structure within the contour of the caliper body. This process eliminates the breaks and interruptions to the internal grain structure that occur when machining a straight block billet. The FEA generated radial transition design eliminates steps and shoulders in the area between the piston housing body and the caliper bridges. Incorporating a radius in this transition area substantially increases resistance to deflection and caliper separation under load. Structural deflection and volume displacement tests have proven the Forged Narrow Mount Dynalite to outperform all existing styles of this popular caliper size.

The superior strength of this innovative design is combined with proven performance features from Wilwood's earlier designs. Each caliper is equipped with Wilwood's SRS stainless steel bridge plates. The SRS plates eliminate the bridge wear caused by pad gouging and extend the service life of the caliper body. The spring-loading action of the SRS plates also eliminates pad rattle and dampens the vibration harmonics that contribute to squeal under braking. Other standard Wilwood features include high temperature seals and stainless steel pistons to eliminate corrosion and retard heat transfer from the pads. Internal fluid passages eliminate the need for external tubes. Four corner bleed screws assure simple and effective air evacuation from the system and allow one caliper to be mounted in any front, rear, right, or left position. To round out the package, Legacy FNDL calipers are finished in Wilwood's exclusive Black Anodize, newer production units feature Type III Gray Anodize coating. Polished units are also available in select piston sizes and rotor widths.

Specifications

Pistons
Piston Count: 4
Piston Area (in²): 1.98
Piston Type: Stainless
Dust Boot: No
Rotor Dimensions
Rotor Width(in): 0.81
Rotor Diameter(in): 12.72
Pad Dimensions
Pad Area (in²): 6.36
Pad Volume (in³): 3
Duty Rating & Material
Material: Aluminum
Weight(Lbs): 4.1
Colors & Finish
Color: Ano
Finish: Type III Ano

Mounting
Mount Center(in): 3.5
Mount Side: Universal
Mount Type: Lug
Rotor Compatibility
Rotor Width(in): 0.81
Maximum Rotor Width(in): 0.81
Minimum Rotor Width(in): 0.75
Maximum Rotor Diameter(in): 12.72
Minimum Rotor Diameter(in): 11.75

Brake Pad Specifications
Brake Pad Type 1: 7816
Brake Pad Type 2: 7216
Brake Pad Type 3: N-A
Total Pad Area (in²): 6.36
Total Pad Volume (in³): 3
Piston Specifications
Piston 1 Bore(in): 1.12
Piston 2 Bore(in): 1.12
Total Piston Area (in²): 1.98

Mounting Specifications
Mount Type: Lug
Mount Side: Universal
Mount Center(in): 3.5
Mount Hole Size(in): 0.45
Mount Height(in): 2.85
Inlet Thread Size: 1/8-27 NPT
