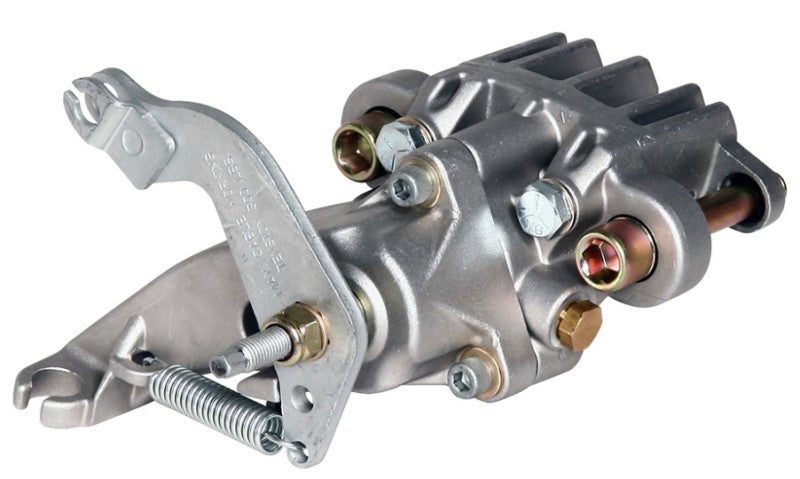

Wilwood HM5 Hydra-Mechanical

HM5 Hydra-Mechanical

Wilwood's HM series Hydra-Mechanical calipers are the perfect rear caliper for utilty vehicles. HM calipers offer options of both left-hand and right-hand units, with piston sizing of either 1.00" or 1.19. HM calipers utilizes a cost effective die cast construction with advanced design and manufacturing techniques which results in a rigid, lightweight and durable caliper.

Specifications

Pistons

Piston Count: 1

Piston Area (in²): 1.06

Piston Type: Stainless

Dust Boot: Yes



Rotor Dimensions

Rotor Width (in): 0.19

Rotor Diameter(in): 11.2



Pad Dimensions

Pad Area (in²): 1.7

Pad Volume (in³): 0.26



Duty Rating & Material

Material: Aluminum

Weight(Lbs): 2.4



Colors & Finish

Color: Clear

Finish: Clear Anodize



Mounting

Mount Center(in): 3

Mount Side: Left Hand

Mount Type: Floating



Rotor Compatibility

Rotor Width (in): 0.19

Maximum Rotor Width (in): 0.19

Minimum Rotor Width (in): 0.15

Maximum Rotor Diameter(in): 11.2

Minimum Rotor Diameter(in): 6



Brake Pad Specifications

Brake Pad Type 1: 6407

Brake Pad Type 2: N-A

Brake Pad Type 3: N-A

Total Pad Area (in²): 1.7

Total Pad Volume (in³): 0.26



Piston Specifications

Piston 1 Bore (in): 1.19

Total Piston Area (in²): 1.06



Mounting Specifications

Mount Type: Floating

Mount Side: Left Hand

Mount Center(in): 3

Mount Hole Size(in): 0.67

Inlet Thread Size: M10 x 1.00
