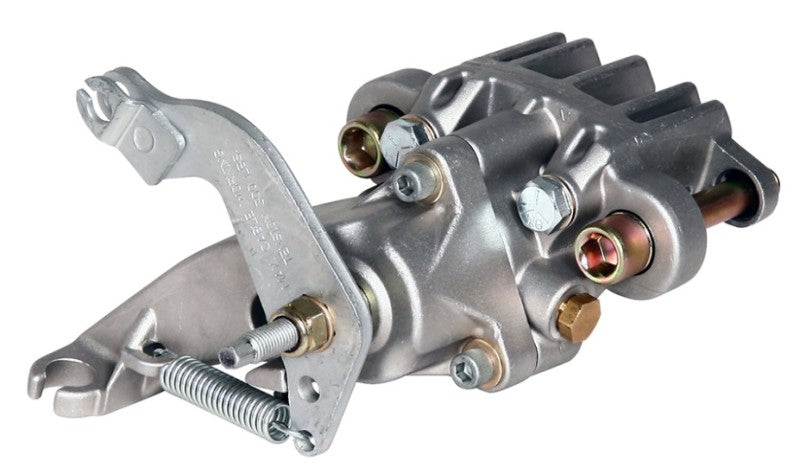

HM5 Hydra-Mechanical
Wilwood's HM series Hydra-Mechanical calipers are the perfect rear caliper for utilty vehicles. HM calipers offer options of both left-hand and right-hand units, with piston sizing of either 1.00" or 1.19. HM calipers utilizes a cost effective die cast construction with advanced design and manufacturing techniques which results in a rigid, lightweight and durable caliper.
Specifications
| Pistons |
|---|
| Piston Count: |
1 |
| Piston Area (in²): |
1.06 |
| Piston Type: |
Stainless |
| Dust Boot: |
Yes |
| Rotor Dimensions |
|---|
| Rotor Width(in): |
0.19 |
| Rotor Diameter(in): |
11.2 |
| Pad Dimensions |
|---|
| Pad Area (in²): |
1.7 |
| Pad Volume (in³): |
0.26 |
| Duty Rating & Material |
|---|
| Material: |
Aluminum |
| Weight(Lbs): |
2.4 |
| Colors & Finish |
|---|
| Color: |
Clear |
| Finish: |
Clear Anodize |
| Mounting |
|---|
| Mount Center(in): |
3 |
| Mount Side: |
Right Hand |
| Mount Type: |
Floating |
| Rotor Compatibility |
|---|
| Rotor Width(in): |
0.19 |
| Maximum Rotor Width(in): |
0.19 |
| Minimum Rotor Width(in): |
0.15 |
| Maximum Rotor Diameter(in): |
11.2 |
| Minimum Rotor Diameter(in): |
6 |
| Brake Pad Specifications |
|---|
| Brake Pad Type 1: |
6407 |
| Brake Pad Type 2: |
N-A |
| Brake Pad Type 3: |
N-A |
| Total Pad Area (in²): |
1.7 |
| Total Pad Volume (in³): |
0.26 |
| Piston Specifications |
|---|
| Piston 1 Bore(in): |
1.19 |
| Total Piston Area (in²): |
1.06 |
| Mounting Specifications |
|---|
| Mount Type: |
Floating |
| Mount Side: |
Right Hand |
| Mount Center(in): |
3 |
| Mount Hole Size(in): |
0.67 |
| Inlet Thread Size: |
M10 x 1.00 |
