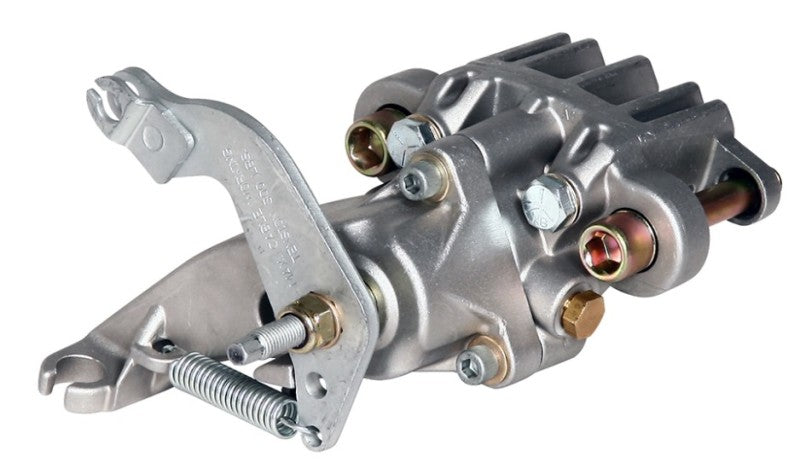

Wilwood Caliper,HM4,1.00,.188 Rotor,R/H,Inverted
Wilwood Caliper,HM4,1.00,.188 Rotor,R/H,Inverted
Out of stock
Not sure this is the right part? Ask us to check fitment. Include your year, make, model, engine and manufacturer part number.
Need this part?
This item is currently unavailable. Ask us about availability or help finding a suitable replacement.
Shipping & returns
This selection is unavailable. Ask us to confirm availability and timing.
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policyHM4 Hydra-Mechanical
Wilwood's HM series Hydra-Mechanical calipers are the perfect rear caliper for utilty vehicles. HM calipers offer options of both left-hand and right-hand units, with piston sizing of either 1.00" or 1.19. HM calipers utilizes a cost effective die cast construction with advanced design and manufacturing techniques which results in a rigid, lightweight and durable caliper.
Specifications
Pistons
Piston Count: 1
Piston Area (in²): 0.79
Piston Type: Stainless
Dust Boot: Yes
Rotor Dimensions
Rotor Width (in): 0.19
Rotor Diameter(in): 11.2
Pad Dimensions
Pad Area (in²): 1.7
Pad Volume (in³): 0.26
Duty Rating & Material
Material: Aluminum
Weight(Lbs): 2.7
Colors & Finish
Color: Clear
Finish: Clear Anodize
Mounting
Mount Center(in): 3
Mount Side: Right Hand
Mount Type: Floating
Rotor Compatibility
Rotor Width (in): 0.19
Maximum Rotor Width (in): 0.19
Minimum Rotor Width (in): 0.15
Maximum Rotor Diameter(in): 11.2
Minimum Rotor Diameter(in): 6
Piston Specifications
Piston 1 Bore (in): 1
Total Piston Area (in²): 0.79
Brake Pad Specifications
Brake Pad Type 1: 6407
Brake Pad Type 2: N-A
Brake Pad Type 3: N-A
Total Pad Area (in²): 1.7
Total Pad Volume (in³): 0.26
Mounting Specifications
Mount Type: Floating
Mount Side: Right Hand
Mount Center(in): 3
Mount Hole Size(in): 0.67
Inlet Thread Size: M10 x 1.00
