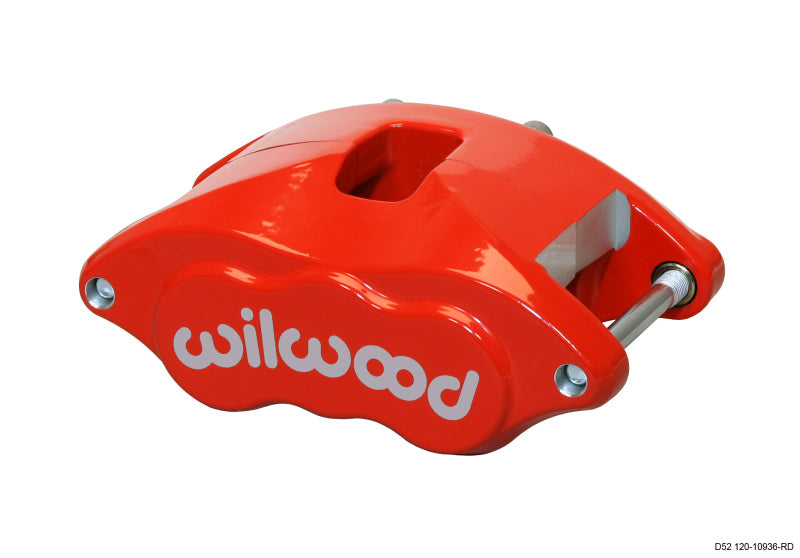

Wilwood Caliper-D52-Red, 2.00/2.00" Pistons, 1.28" Disc *Discontinued
Wilwood Caliper-D52-Red, 2.00/2.00" Pistons, 1.28" Disc *Discontinued
Shipping calculated at checkout.
To United StatesChange
Final options and totals are confirmed at checkout.
120 in stock
Not sure this is the right part? Ask us to check fitment. Include your year, make, model, engine and manufacturer part number.
Shipping & returns
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policyD52 Dual Piston Floater
The D52 caliper is a direct bolt-on 2 piston replacement for the factory original single calipers on many 1968-96 GM Passenger Vehicles and Trucks. Forged billet aluminum bodies, stainless steel pistons, and competition style high-temperature seals put and end to the rust, bore pitting, and seal failures that plague the OE caliper design. D52 calipers provide low-maintenance performance and a huge weight savings with high temperature reliability for the street and track.
D52 calipers mount in the stock location over stock rotors, use the original style OE D52 brake pads and an OE 7/16-20 banjo bolt brake line. Calipers can be used with most wheels that clear the OE calipers. The rear calipers with 1.25" piston provide 2.46 cubic inches of piston area per caliper, to maintain the original front to rear brake bias and use of the OE master cylinder. D52 Calipers come hardened slide pins.
Specifications
| Piston Count: | 2 |
| Piston Area (in²): | 6.28 |
| Piston Type: | Stainless |
| Dust Boot: | No |
| Rotor Width(in): | 1.28 |
| Rotor Diameter(in): | 12.19 |
| Pad Area (in²): | 10 |
| Pad Volume (in³): | 3.9 |
| Material: | Aluminum |
| Weight(Lbs): | 5.5 |
| Color: | Red |
| Finish: | Red Powder Coat |
| Mount Center(in): | 7.06 |
| Mount Side: | Universal |
| Mount Type: | Floating |
| Rotor Width(in): | 1.28 |
| Maximum Rotor Width(in): | 1.28 |
| Minimum Rotor Width(in): | 1.19 |
| Maximum Rotor Diameter(in): | 12.19 |
| Minimum Rotor Diameter(in): | 11 |
| Brake Pad Type 1: | D52 |
| Brake Pad Type 2: | N-A |
| Brake Pad Type 3: | N-A |
| Total Pad Area (in²): | 10 |
| Total Pad Volume (in³): | 3.9 |
| Piston 1 Bore(in): | 2 |
| Piston 2 Bore(in): | 2 |
| Total Piston Area (in²): | 6.28 |
| Mount Type: | Floating |
| Mount Side: | Universal |
| Mount Center(in): | 7.06 |
| Mount Hole Size(in): | 0.69 |
| Mount Height(in): | 0.77 |
| Inlet Thread Size: | 7/16-20 |
