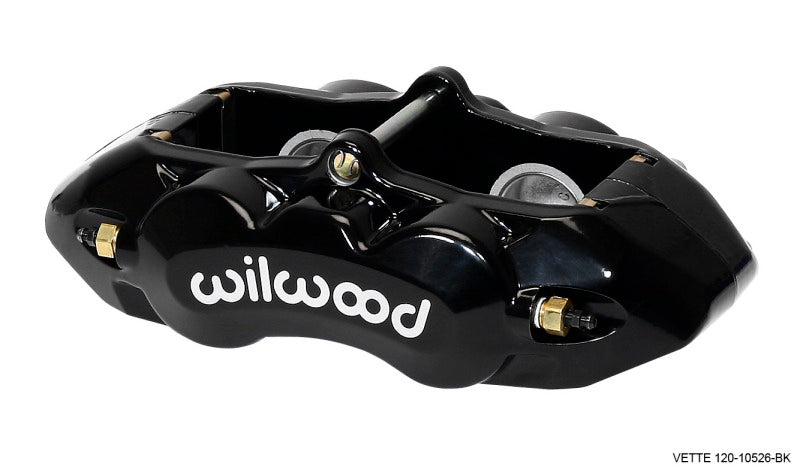

D8-4 rear calipers are a direct bolt-on replacement for the OE factory rear calipers on all 1965-82 Corvettes. Forged billet aluminum bodies, stainless steel pistons, and high temperature seals put an end to the rust, bore pitting, and seal failures that plague the original cast iron caliper design.
D8-4 calipers mount in the stock location over stock rotors and use the original type D8 brake pads. These calipers fit inside 1967 and later production steel rally wheels and most of the later model alloy wheels. Original steel "JK" code wheels from 1965-66, and some aftermarket alloy replica wheels, will requires a 3/16" or thicker wheel spacer for clearance.
D8-4 calipers use the same overall piston volumes as the original calipers. Other than a new flexline with an 1/8"-27 NPT end for the new aluminum caliper, no other changes such as master cylinder output or front to rear bias adjustment are necessary.
Specifications
| Pistons |
|---|
| Piston Count: |
4 |
| Piston Area (in²): |
3.00 |
| Piston Type: |
Stainless |
| Dust Boot: |
No |
| Rotor Dimensions |
|---|
| Rotor Width(in): |
1.25 |
| Rotor Diameter(in): |
11.75 |
| Pad Dimensions |
|---|
| Pad Area (in²): |
|
| Pad Volume (in³): |
3.9 |
| Duty Rating & Material |
|---|
| Material: |
Aluminum |
| Weight(Lbs): |
6.3 |
| Colors & Finish |
|---|
| Color: |
Black |
| Finish: |
Black Powder Coat |
| Mounting |
|---|
| Mount Center(in): |
5.16 |
| Mount Side: |
Universal |
| Mount Type: |
Lug |
| Rotor Compatibility |
|---|
| Rotor Width(in): |
1.25 |
| Maximum Rotor Width(in): |
1.25 |
| Minimum Rotor Width(in): |
1.17 |
| Maximum Rotor Diameter(in): |
11.75 |
| Minimum Rotor Diameter(in): |
11.75 |
| Brake Pad Specifications |
|---|
| Brake Pad Type 1: |
D8 |
| Brake Pad Type 2: |
N-A |
| Brake Pad Type 3: |
N-A |
| Total Pad Volume (in³): |
3.9 |
| Piston Specifications |
|---|
| Piston 1 Bore(in): |
1.38 |
| Piston 2 Bore(in): |
1.38 |
| Total Piston Area (in²): |
3.00 |
| Mounting Specifications |
|---|
| Mount Type: |
Lug |
| Mount Side: |
Universal |
| Mount Center(in): |
5.16 |
| Mount Hole Size(in): |
0.47 |
| Mount Height(in): |
2.99 |
| Inlet Thread Size: |
1/8-27 NPT |
