Whiteline Sway Bar- Vehicle Kit

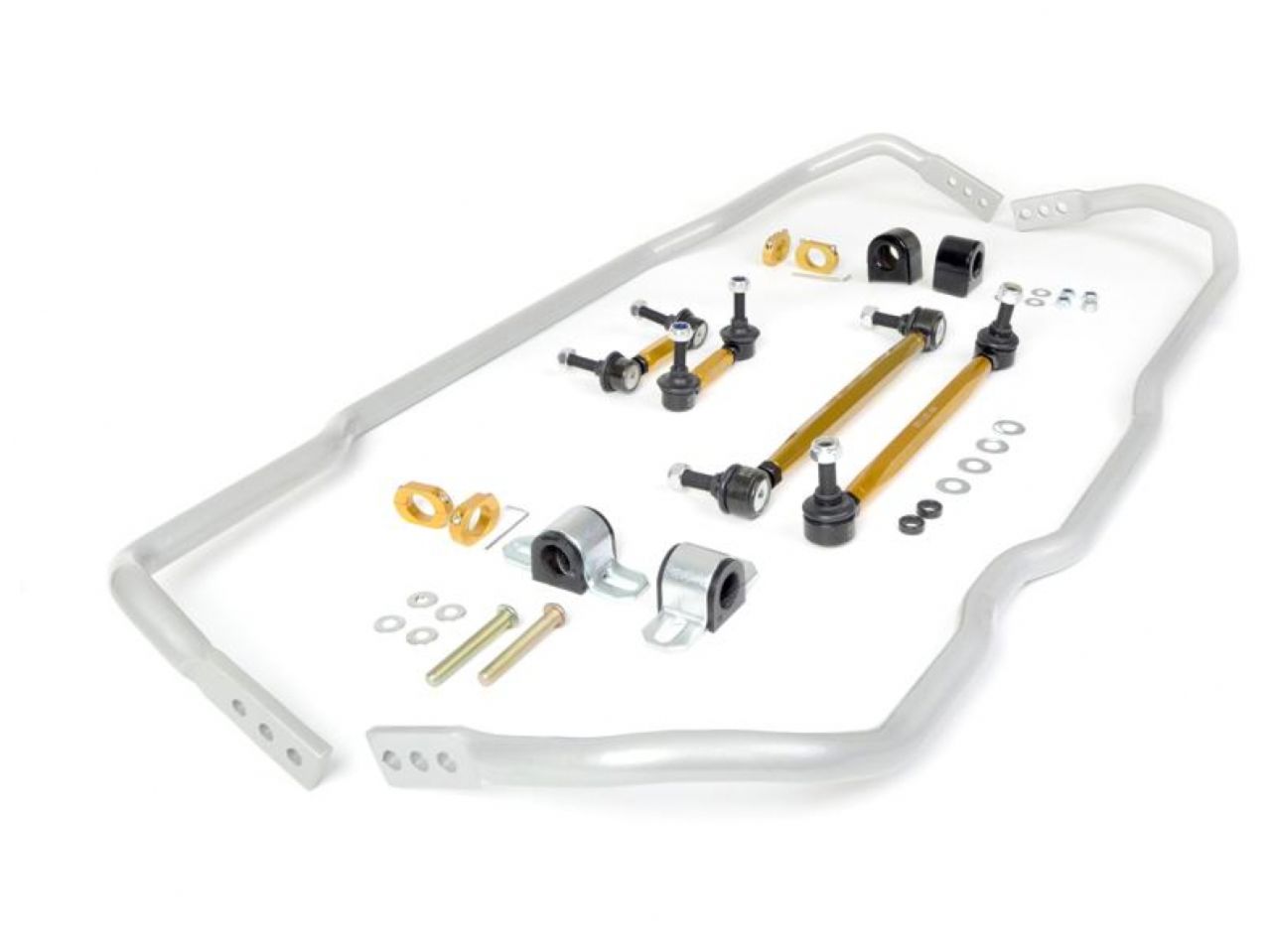

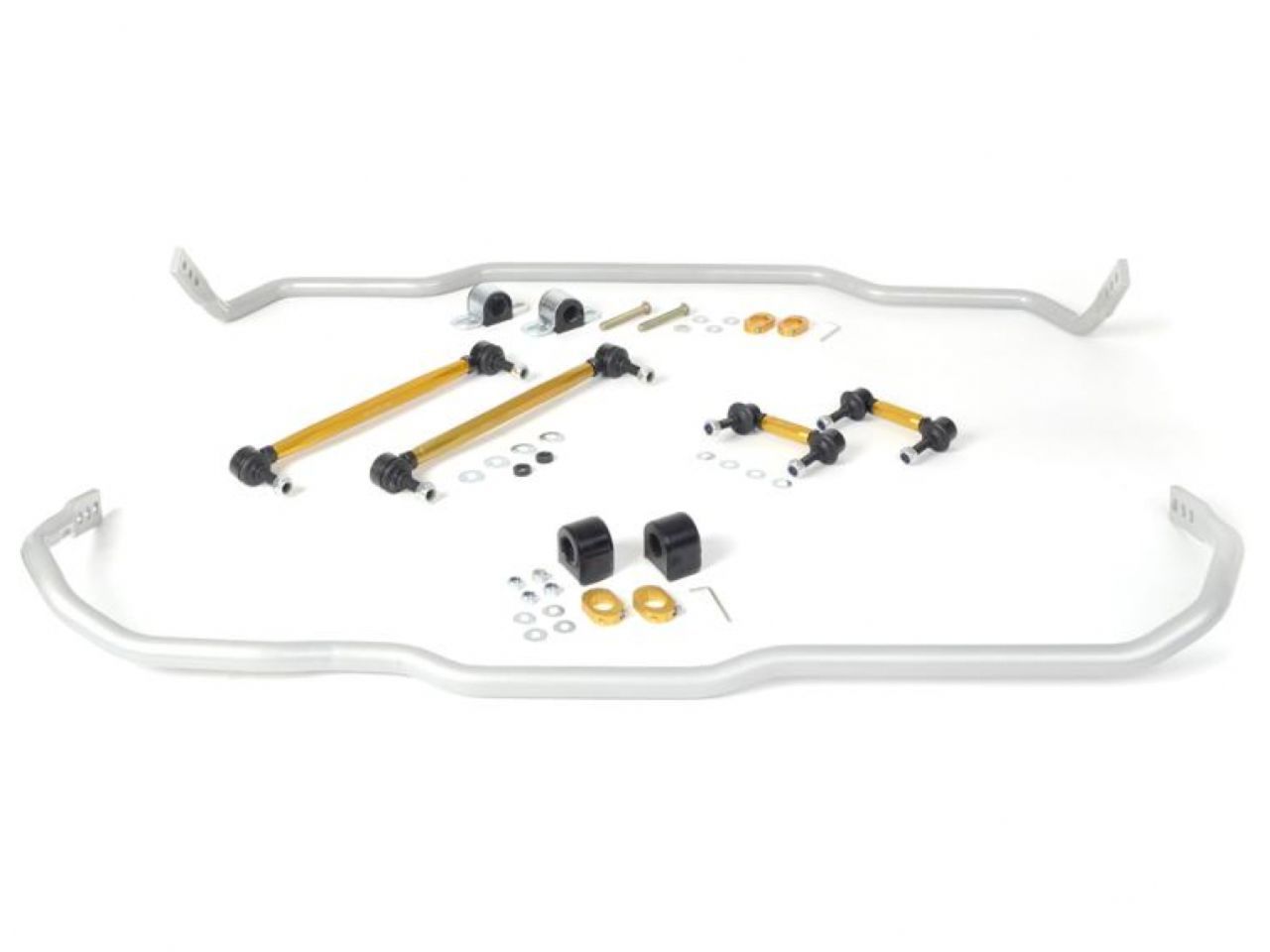

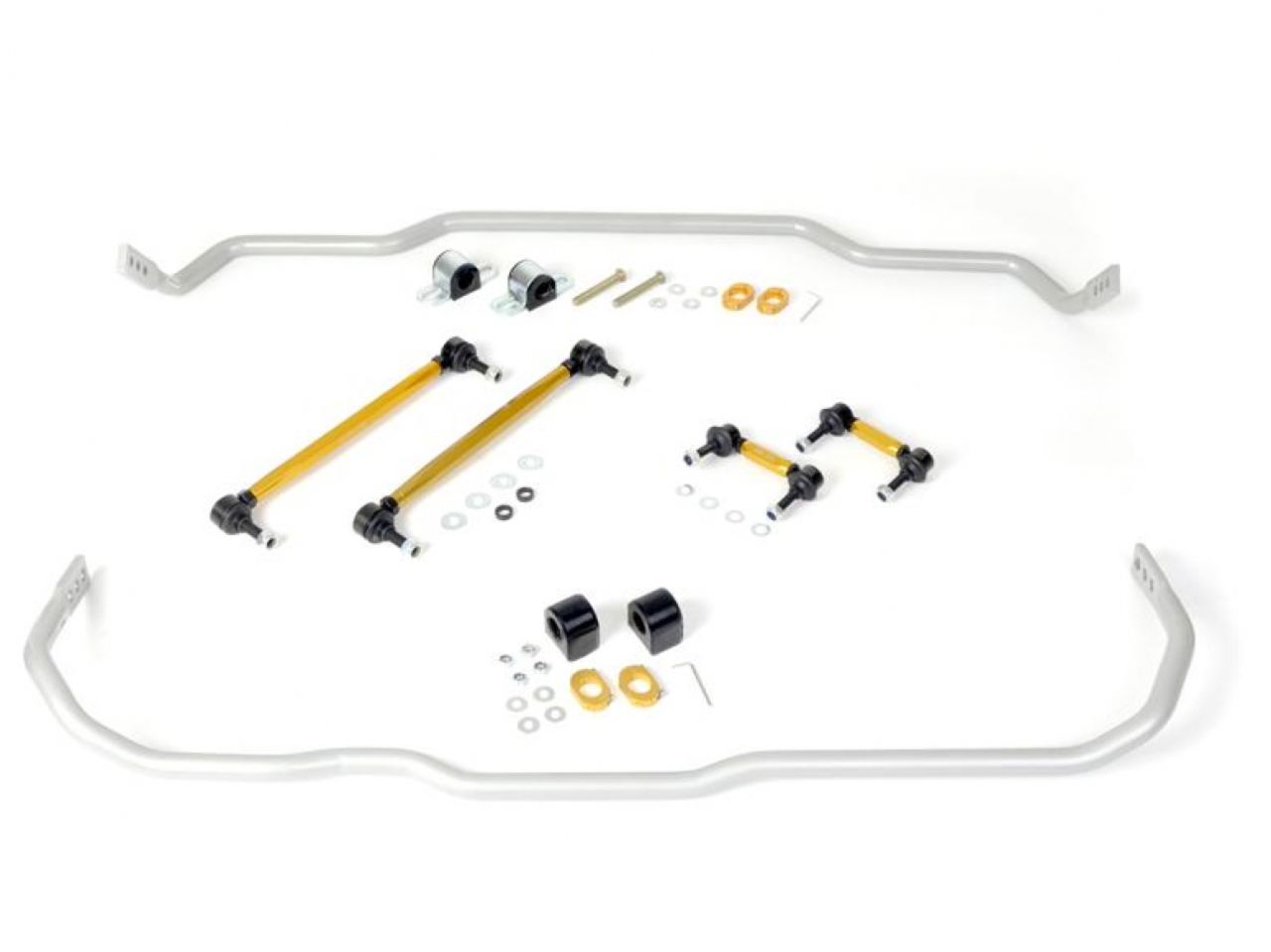

Engineered to 'Activate More Grip', BWK002 is a packaged solution designed to improve performance and enhance the driving experience of your vehicle. Boasting a 24mm 3 point adjustable front sway bar and 24mm 3 point adjustable rear sway bar, the kit is completed with high quality sway bar links and mounting accessories that ensure optimum performance and ease of installation. Achieve perfect balance and precise tuning with this Whiteline Sway Bar Kit.
SWAY BAR -VEHICLE KIT
Performance
Dramatically improve the handling and performance of your vehicle with Adjustable Sway Bars by Whiteline. Engineered to "Activate More Grip", sway bars are principally designed to reduce body roll or sway. By reducing body roll, lateral loads are spread more evenly across the tires thereby increasing cornering grip and improving outright performance. In fact, benefits extend to improvements in handling, safety and tyre wear without affecting ride quality or comfort.
Size
Larger diameter sway bars offer a higher torsional resistance which in turn increases overall roll stiffness. The stiffer the bar, the more force required to move the left and right hand wheels relative to each other, essentially increasing the amount of force required to make the body roll. Bar size (stiffness) also allows for corrections to understeer or oversteer tendencies depending on vehicle type or how the vehicle is being used.
Adjustable
Take control with multi-point adjustable sway bars which allow the driver to fine tune vehicle characteristics to suit their driving preference or conditions. Whether it's street or sport, dial in more balance and predictability with Whiteline multi-point adjustable sway bars.
Finish
Whiteline Silver powder coating is an electrostatically applied coating that is cured under heat creating a hard skin that is much tougher than conventional paint. Whiteline source the highest quality finishes available to ensure our products are built to withstand the toughest conditions and resist corrosion for years to come.
Forged Ends
A process of stamping and forming each end of the sway bar into a blade design. This feature ensures maximum strength and longevity and allows for multiple adjustment points to be added to each sway bar.
Fitting Kit
Whiteline sway bar mounts utilise the latest technology synthetic elastomer combined with effective designs such as the internal bore knurling and grease retention lips for optimum lubrication & performance.
Lateral Locks
Lateral locks are a DIY product that can be utilized on both factory or Whiteline sway bars. Lateral locks are easily to install and mount directly next to the sway bar mounting points to prevent shifting or sideways movement of the sway bar under lateral (cornering) loads. This results in improved sway bar effectiveness whilst preventing fouling of the sway bar on near by chassis and steering components.
Vehicle Fitments:
Year | Make | Model | Submodel |
---|---|---|---|
2010 | Audi | A3 | 100 Aniversario |
2006 - 2011 | Audi | A3 | Attraction Plus |
2006 - 2013 | Audi | A3 | Base, Attraction, S Line, Ambiente |
2009 - 2013 | Audi | A3 | Cabrio |
2007 | Audi | A3 | LE, X Aniversario |
2013 | Audi | A3 | Sportback |
2010 - 2013 | Audi | A3 | TDI |
2006 - 2013 | Audi | A3 Quattro | Base |
2008 - 2009 | Audi | TT | Base |
2008 - 2015 | Audi | TT Quattro | Base |
2012 - 2013 | Audi | TT Quattro | Premium Plus, Prestige |
2011 - 2014 | Audi | TT Quattro | RS |
2009 - 2015 | Audi | TT Quattro | S |
2014 | Audi | TT Quattro | S Line |
2017 | Volkswagen | Beetle | #PinkBeetle, Pink |
2016 | Volkswagen | Beetle | Allstar, R-Line S, R-Line SE |
2012 - 2015 | Volkswagen | Beetle | Base |
2015 - 2017 | Volkswagen | Beetle | Classic |
2018 | Volkswagen | Beetle | Coast |
2014 - 2015 | Volkswagen | Beetle | Comfortline TDI |
2012 - 2016 | Volkswagen | Beetle | Comfortline, Turbo |
2019 | Volkswagen | Beetle | Final Edition, Final Edition SEL, Final Edition SE |
2015 - 2016 | Volkswagen | Beetle | Fleet Edition |
2014 | Volkswagen | Beetle | GSR, Highline TDI |
2012 - 2014 | Volkswagen | Beetle | Highline |
2012 | Volkswagen | Beetle | Premiere |
2016 - 2017 | Volkswagen | Beetle | R-Line SEL, Denim, SEL |
2016 - 2019 | Volkswagen | Beetle | SE, S, Wolfsburg Edition, Dune |
2012 - 2017 | Volkswagen | Beetle | Sport |
2012 - 2018 | Volkswagen | Beetle | Sportline |
2013 - 2015 | Volkswagen | Beetle | TDI, R-Line |
2015 - 2018 | Volkswagen | Beetle | Trendline |
2013 | Volkswagen | Beetle | X-Box, Fender |
2014 | Volkswagen | CC | 4 Motion |
2013 - 2016 | Volkswagen | CC | Base |
2015 | Volkswagen | CC | Execline, Executive 4 Motion |
2012 - 2015 | Volkswagen | CC | Executive |
2011 - 2014 | Volkswagen | CC | Highline V6 |
2011 - 2016 | Volkswagen | CC | Highline, Sportline, R-Line |
2012 - 2013 | Volkswagen | CC | Lux |
2012 | Volkswagen | CC | Lux Plus, Lux Limited |
2009 - 2011 | Volkswagen | CC | Luxury, VR6 4Motion |
2016 - 2017 | Volkswagen | CC | R-Line Executive |
2009 - 2017 | Volkswagen | CC | Sport |
2016 | Volkswagen | CC | V6 Executive 4Motion, Trend |
2013 | Volkswagen | CC | VR6 4Motion Executive, Sport Plus |
2009 - 2010 | Volkswagen | CC | VR6 Sport, VR6 |
2017 | Volkswagen | CC | Wolfsburg Edition, Edicion Especial, Turbo |
2007 - 2008 | Volkswagen | Eos | 2.0T |
2007 | Volkswagen | Eos | 3.2 |
2007 - 2010 | Volkswagen | Eos | Base |
2009 - 2014 | Volkswagen | Eos | Comfortline |
2012 - 2015 | Volkswagen | Eos | Executive |
2010 - 2014 | Volkswagen | Eos | Highline |
2008 - 2016 | Volkswagen | Eos | Komfort |
2008 - 2013 | Volkswagen | Eos | Lux |
2013 - 2014 | Volkswagen | Eos | Sport |
2009 | Volkswagen | Eos | Trendline |
2008 | Volkswagen | Eos | VR6, Turbo |
2015 | Volkswagen | Eos | Wolfsburg Edition, Final Edition |
2010 - 2014 | Volkswagen | Golf | Base |
2012 - 2014 | Volkswagen | Golf | Comfortline TDI, Highline TDI |
2004 - 2014 | Volkswagen | Golf | Comfortline, Trendline |
2004 | Volkswagen | Golf | GL TDI |
2004 - 2006 | Volkswagen | Golf | GLS, Europa, GLS TDI, GTI 1.8T, GL |
2004 - 2013 | Volkswagen | Golf | GTI |
2004 - 2005 | Volkswagen | Golf | GTI VR6 |
2010 - 2012 | Volkswagen | Golf | Highline |
2012 - 2013 | Volkswagen | Golf | R |
2011 - 2013 | Volkswagen | Golf | Sportline |
2005 - 2014 | Volkswagen | Golf | TDI |
2011 | Volkswagen | Golf | TDI Comfortline, TDI Highline |
2014 | Volkswagen | Golf | Trendline TDI |
2006 - 2013 | Volkswagen | GTI | Base |
2014 | Volkswagen | GTI | Driver's Edition, Wolfsburg Edition |
2007 | Volkswagen | GTI | Fahrenheit |
2006 - 2008 | Volkswagen | Jetta | 2.0T |
2005 - 2008 | Volkswagen | Jetta | 2.5 |
2006 | Volkswagen | Jetta | 475 Aniversario, Soccer 2, Winter 2, Soccer 1, Winter 1, Value Edition |
2010 - 2018 | Volkswagen | Jetta | Base |
2010 | Volkswagen | Jetta | City, Clasico, TDI Cup Edition |
2014 | Volkswagen | Jetta | Comfort, Comfort TDI |
2012 - 2015 | Volkswagen | Jetta | Comfortline TDI, Highline TDI |
2005 - 2010 | Volkswagen | Jetta | Europa |
2015 - 2016 | Volkswagen | Jetta | GLI SE, GLI Autobahn, GLI SEL |
2005 | Volkswagen | Jetta | GLS TDI, GL, GLS, GL TDI, Summer Edition, Special Edition, Limited Edition |
2009 - 2017 | Volkswagen | Jetta | Highline |
2013 - 2016 | Volkswagen | Jetta | Hybrid |
2013 - 2014 | Volkswagen | Jetta | Hybrid Highline, Hybrid SE, Hybrid SEL, Hybrid Comfortline, Hybrid Trendline |
2014 - 2016 | Volkswagen | Jetta | Hybrid SEL Premium |
2018 | Volkswagen | Jetta | SE Sport |
2016 | Volkswagen | Jetta | SEL Premium, Live |
2008 - 2018 | Volkswagen | Jetta | SEL, SE, S |
2011 - 2018 | Volkswagen | Jetta | Sport |
2011 - 2014 | Volkswagen | Jetta | Style, Active |
2005 - 2016 | Volkswagen | Jetta | TDI |
2011 | Volkswagen | Jetta | TDI Comfortline, TDI Highline, Bicentenario |
2012 - 2014 | Volkswagen | Jetta | TDI Premium |
2015 | Volkswagen | Jetta | TDI SE, TDI SEL, Trendline TDI, TDI S |
2005 - 2018 | Volkswagen | Jetta | Trendline, GLI, Comfortline, Sportline |
2007 - 2018 | Volkswagen | Jetta | Wolfsburg Edition |
2006 - 2009 | Volkswagen | Passat | 3.6, 2.0T |
2008 - 2010 | Volkswagen | Passat | Base, Komfort |
2005 | Volkswagen | Passat | GLX 4 Motion, 1.8T, GLS, V6 4Motion, V6, GLS TDI, GL, GLX, GLS 4 Motion, GL TDI |
2010 | Volkswagen | Passat | Highline V6 |
2009 - 2010 | Volkswagen | Passat | Trendline, Comfortline, Highline |
2008 | Volkswagen | Passat | Turbo, VR6, Lux |
2006 - 2007 | Volkswagen | Passat | Value Edition |
2007 | Volkswagen | Passat | Wolfsburg Edition |
2006 - 2008 | Volkswagen | Rabbit | 2.5 |
2008 - 2009 | Volkswagen | Rabbit | S |
2009 | Volkswagen | Rabbit | Trendline, Comfortline |
2009 - 2017 | Volkswagen | Tiguan | Highline, Comfortline, Trendline, Base, Track & Fun, SEL, S |
2009 - 2013 | Volkswagen | Tiguan | Native |
2014 - 2016 | Volkswagen | Tiguan | R-Line |
2009 - 2016 | Volkswagen | Tiguan | SE |
2017 | Volkswagen | Tiguan | Sport |
2012 - 2017 | Volkswagen | Tiguan | Sport & Style |
2010 - 2017 | Volkswagen | Tiguan | Wolfsburg Edition |
2017 | Volkswagen | Tiguan Limited | Base |
