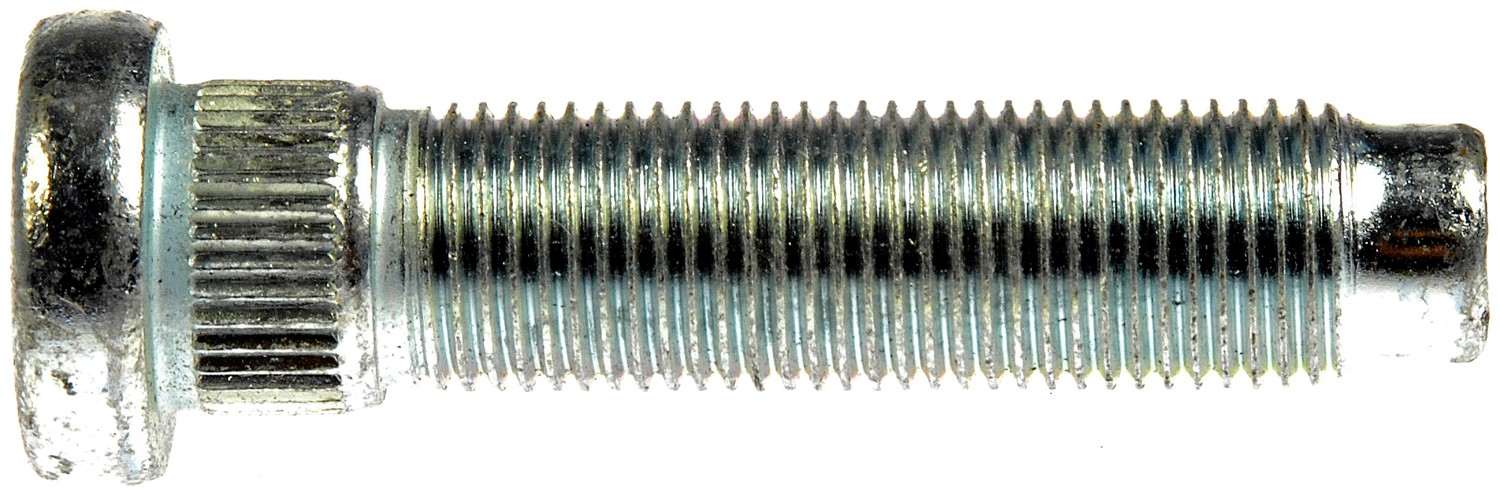

Dorman Wheel Studs 10/BX

Dorman's Wheel Studs are produced to strict engineering quality standards. Our engineers design these parts with tight tolerance on specific part characteristics to ensure proper fit and function, this design provides assurance your wheels will be tight every time they are removed and installed.

• Direct replacement for a proper fit every time
• Corrosion resistant
• Double-ended studs as well as serrated bolts, and wheel bolts available
• Over-length and under-length studs available for convenience and ease of installation

Application Summary: Dodge Ram 1500 2008-07, Dodge Ram 2500 2008-03, Dodge Ram 3500 2008-03, Dodge Ram 4000 2005

Product Specifications:

Head Diameter:  23.2 mm

Knurl Diameter (In): 0.645 In.

Package Contents: 10 Studs

Quick-Start Nose:  Yes

SAE or Metric:  SAE

Shoulder Length (In):  0.459 In.

Stud Material:  SteelStyle:Serrated Stud

Thread Diameter:  9/16

Thread Handling:  Right Hand Thread

Thread Length (In):  44.4 mm

Thread Size:  9/16-18

Threads Per Inch:  18

Under Head Length:  2.52 In.

Vehicle Fitments:
