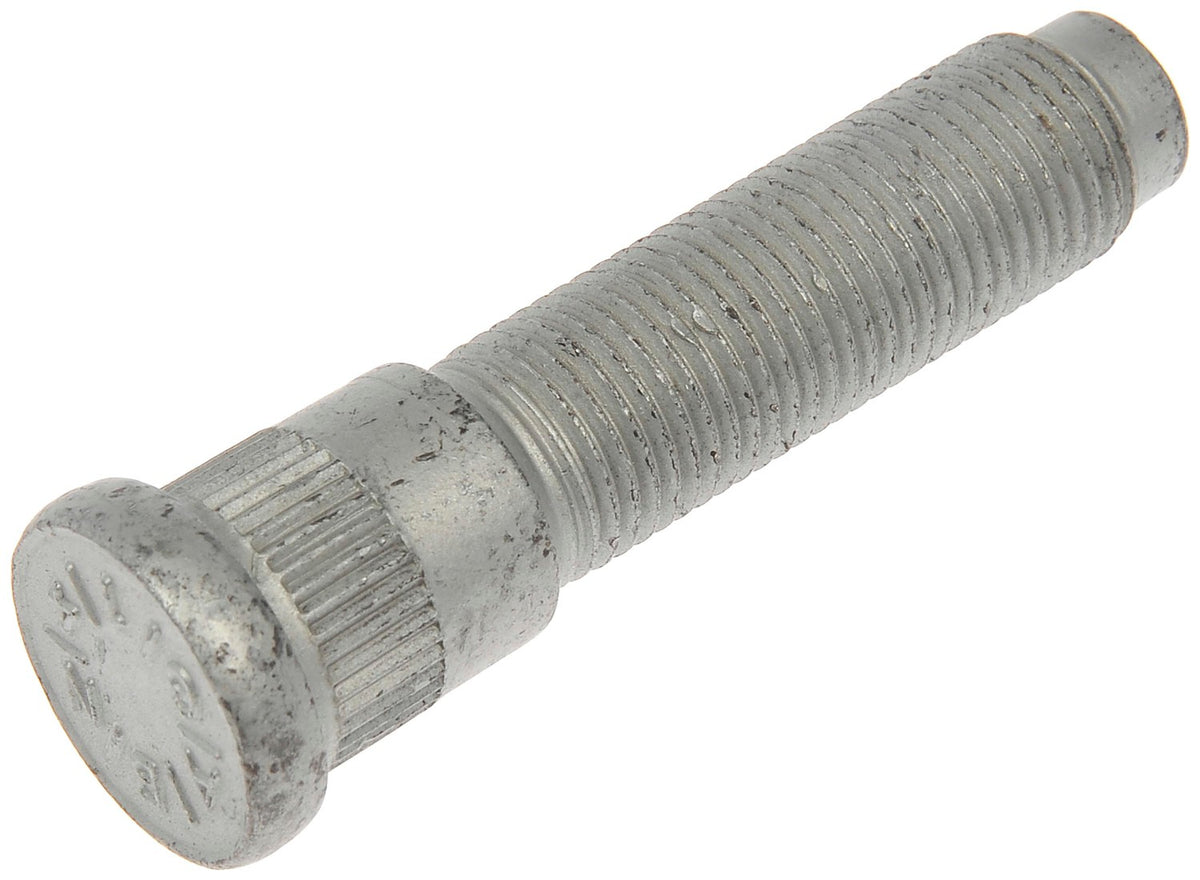

Dorman Wheel Stud

Dorman's Wheel Studs are produced to strict engineering quality standards. Our engineers design these parts with tight tolerance on specific part characteristics to ensure proper fit and function, this design provides assurance your wheels will be tight every time they are removed and installed.

• Direct replacement for a proper fit every time
• Corrosion resistant
• Double-ended studs as well as serrated bolts, and wheel bolts available
• Over-length and under-length studs available for convenience and ease of installation

Application Summary: Dodge Ram 3500 2010-09, Dodge Ram 4000 2009, Ram 3500 2011

Product Specifications:

• Bolt Grade:  10.9
• Color:  Grey
• Knurl Diameter (In):  0.67 In.
• Package Contents:  10 Studs
• Quick-Start Nose:  Yes
• SAE or Metric:  SAE
• Shoulder Diameter:  0.66 In.
• Shoulder Length (In):  0.67 In.
• Shoulder Shape:  Cylinder
• Shoulder Thickness:  0.66 In.
• Stud Material:  Carbon Steel
• Style:  Serrated Stud
• Thread Diameter:  9/16
• Thread Handling:  Right Hand Thread
• Thread Length (In):  1.63 In.
• Thread Size:  9/16-18
• Thread Type:  Fine
• Threads Per Inch:  18
• Under Head Length:  2.57 In.

Vehicle Fitments:
