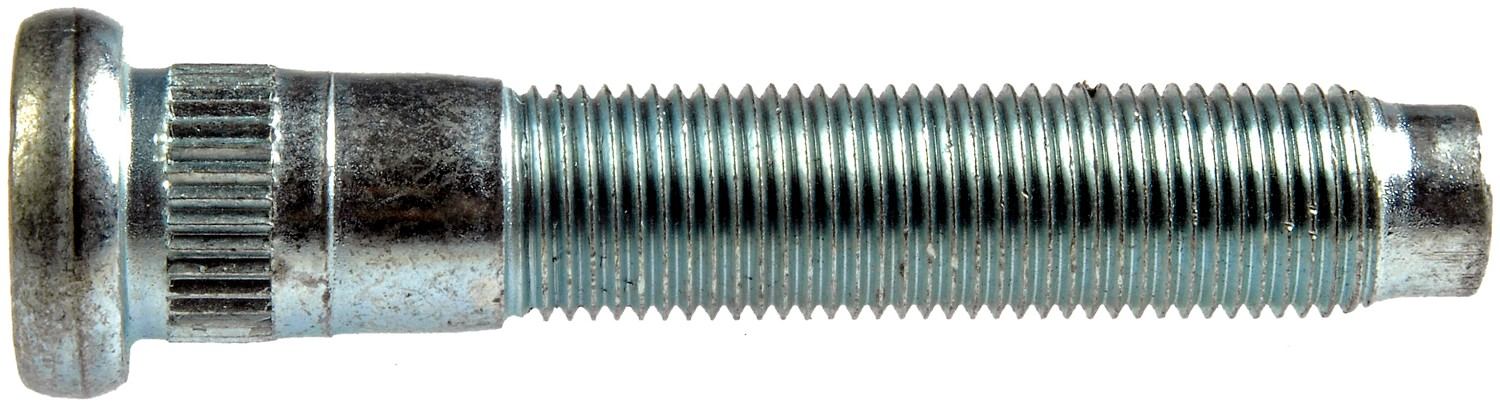

Dorman Wheel Stud

Dorman's Wheel Studs are produced to strict engineering quality standards. Our engineers design these parts with tight tolerance on specific part characteristics to ensure proper fit and function, this design provides assurance your wheels will be tight every time they are removed and installed.

• Direct replacement for a proper fit every time
• Corrosion resistant
• Double-ended studs as well as serrated bolts, and wheel bolts available
• Over-length and under-length studs available for convenience and ease of installation

Application Summary: Dodge Ram 3500 2008-94, Dodge Ram 4000 2008-05, Dodge Ram 4000 2002-95

Product Specifications:

Bolt Grade:  8

Color:  Silver

Head Diameter:  0.920 In.

Knurl Diameter (In):  0.652 In.

Package Contents:  1 Stud

Quick-Start Nose:  Yes

SAE or Metric:  SAE

Shoulder Diameter:  0.616 In.

Shoulder Length (In):  0.875 In.

Stud Material:  Steel

Style:  Serrated Stud

Thread Diameter:  9/16

Thread Handling:  Right Hand Thread

Thread Length (In):  2.075 In.

Thread Size:  9/16-18

Threads Per Inch:  18

Under Head Length:  3.150 In.

Vehicle Fitments:
