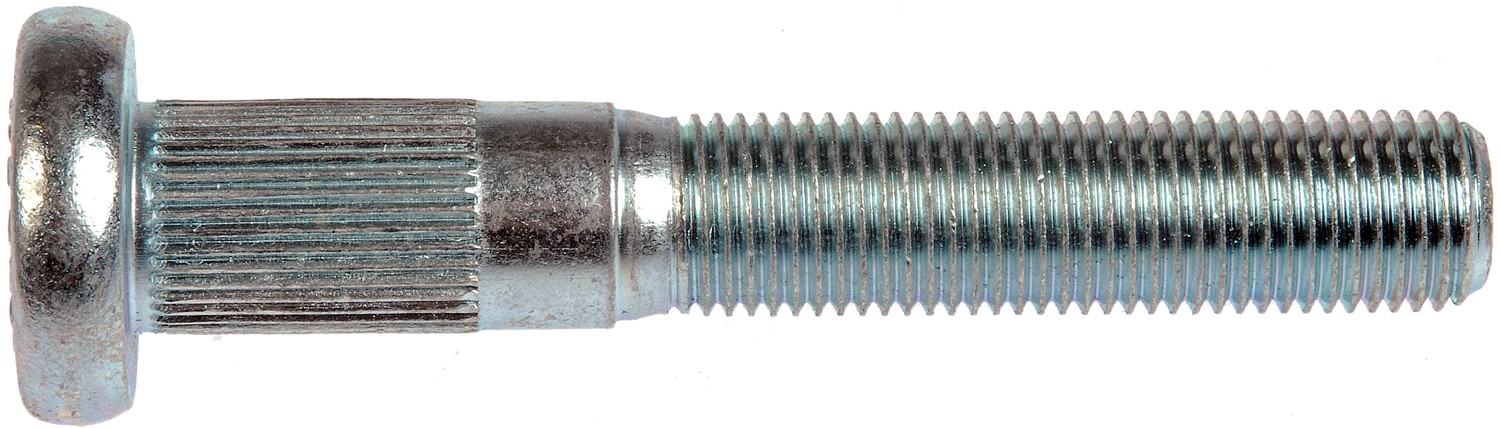

Dorman Wheel Stud M14-1.5 X 90.

Dorman's Wheel Studs are produced to strict engineering quality standards. Our engineers design these parts with tight tolerance on specific part characteristics to ensure proper fit and function, this design provides assurance your wheels will be tight every time they are removed and installed.

• Direct replacement for a proper fit every time
• Corrosion resistant
• Double-ended studs as well as serrated bolts, and wheel bolts available
• Over-length and under-length studs available for convenience and ease of installation

Application Summary: Chevrolet 2002-88, GMC 2002-88

Product Specifications:

Color:  Silver

Head Diameter:  28.385 mm

Knurl Diameter (In):  15.748 mm

Package Contents:  10 Studs

Quick-Start Nose:  No

SAE or Metric:  Metric

Shoulder Diameter:  15.354 mm

Shoulder Length (In):  32 mm

Stud Material:  Steel

Style:  Serrated Stud

Thread Diameter:  M14

Thread Handling:  Right Hand Thread

Thread Length (In):  75.438 mm

Thread Pitch:  1.5

Thread Size:  M14-1.50

Under Head Length:   3.563 In.

Vehicle Fitments:
