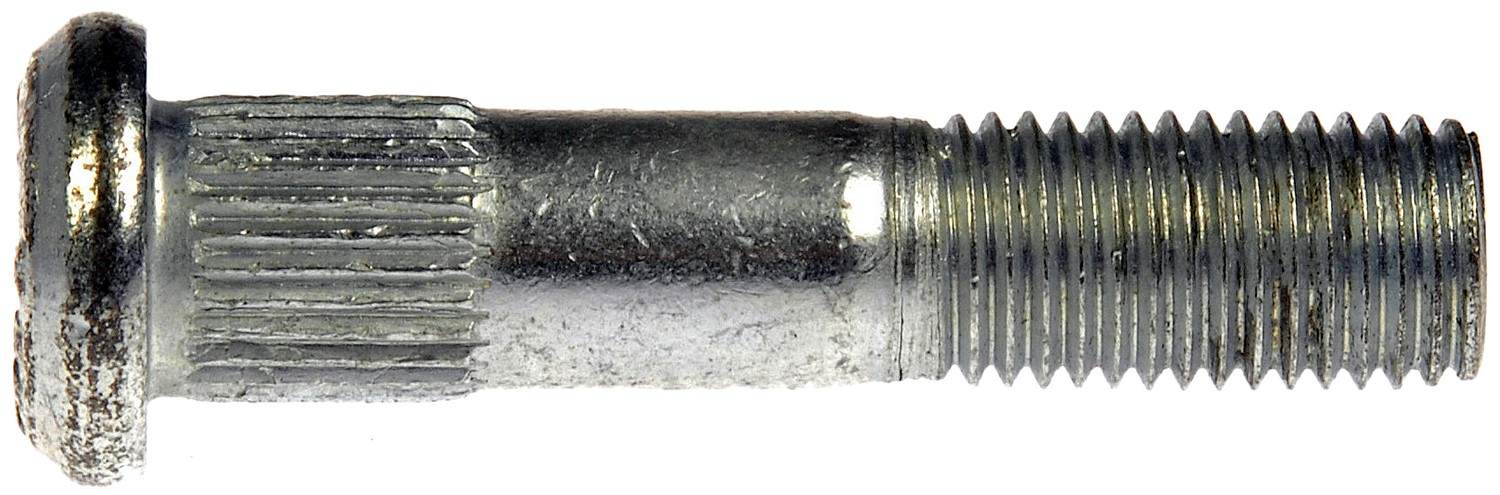

Dorman Wheel Lug Stud

M12-1.50 Serrated Wheel Stud - 12.90mm Knurl, 56mm Length

Application Summary: Mazda RX-7 1988-86

When it comes to your wheels, don't take chances. Dorman's Wheel Studs are produced to strict engineering quality standards. Our engineers design these parts with tight tolerance on specific part characteristics to ensure proper fit and function, this design provides assurance your wheels will be tight every time they are removed and installed.

• Direct replacement for a proper fit every time
• Corrosion resistant
• Double-ended studs as well as serrated bolts, and wheel bolts available
• Over-length and under-length studs available for convenience and ease of installation

Product Specifications

• Bolt Grade: 10.9
• Color: Silver
• Head Diameter: 20.38 mm
• Knurl Diameter (In): 12.91 mm
• Package Contents: 1 Stud
• Quick-Start Nose: No
• SAE or Metric: Metric
• Shoulder Diameter: 11.94 mm
• Shoulder Length (In): 28.96 mm
• Stud Material: Steel
• Style: Serrated Stud
• Thread Diameter: M12
• Thread Pitch: 1.5
• Under Head Length: 55.88 mm
• Package Quantity: 10
• Thread Size: M12-1.50
• Packaging Type: Box
• Thread Length (In): 26.93 mm
• Thread Handling: Right Hand Thread

Vehicle Fitments:
