Dorman Wheel Bearing and Hub Assembly

Left Loaded Steering Knuckle

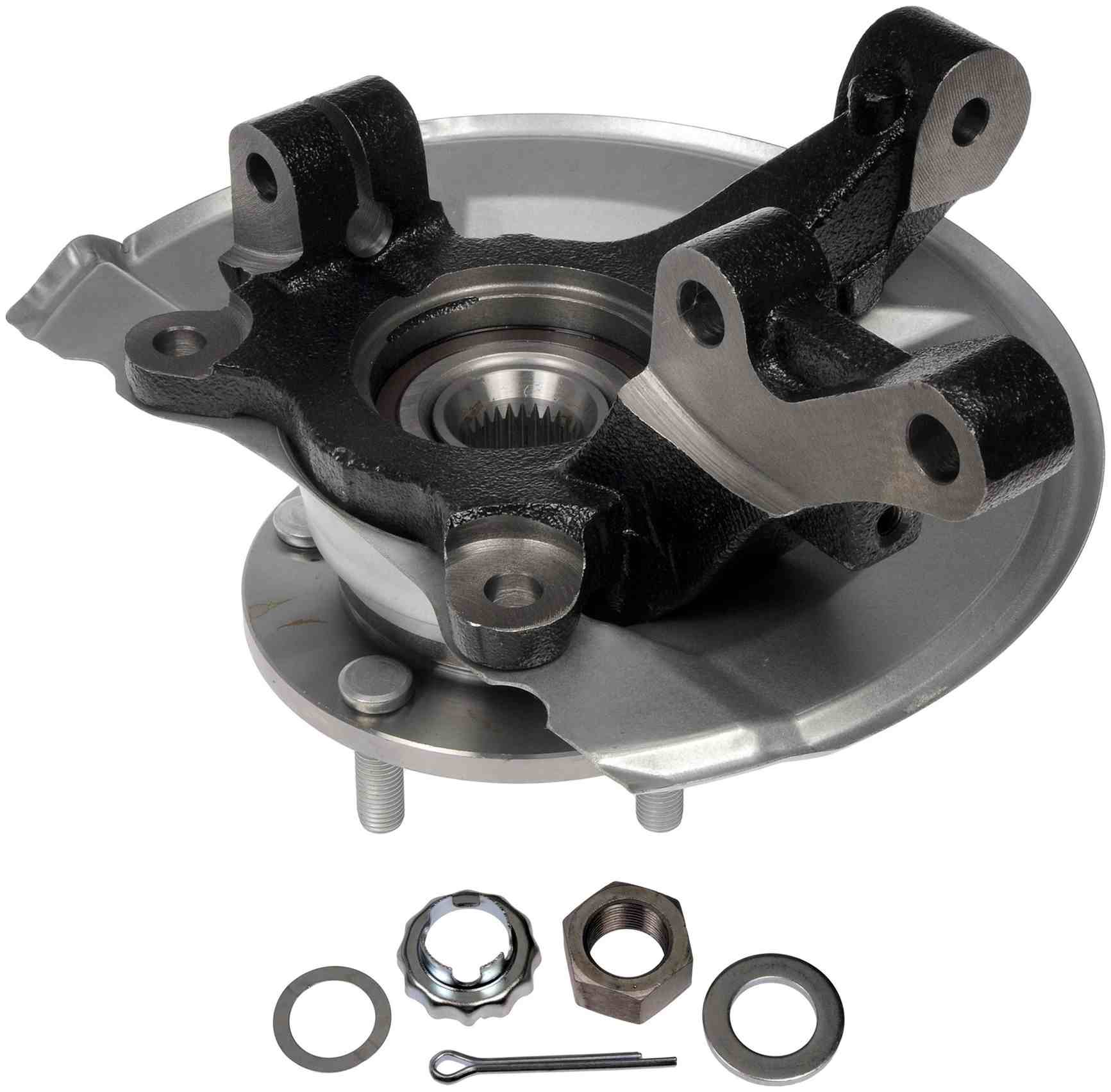

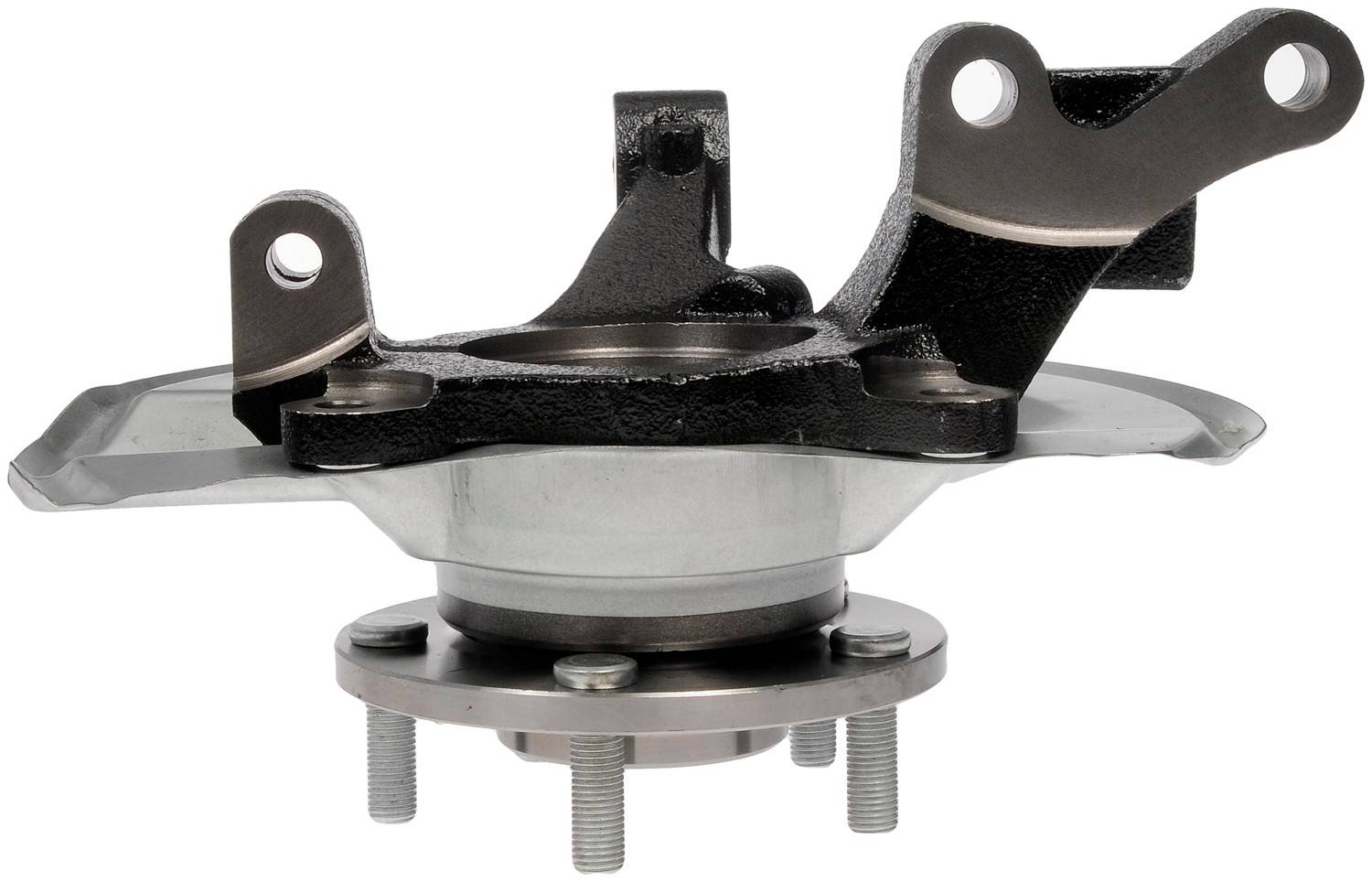

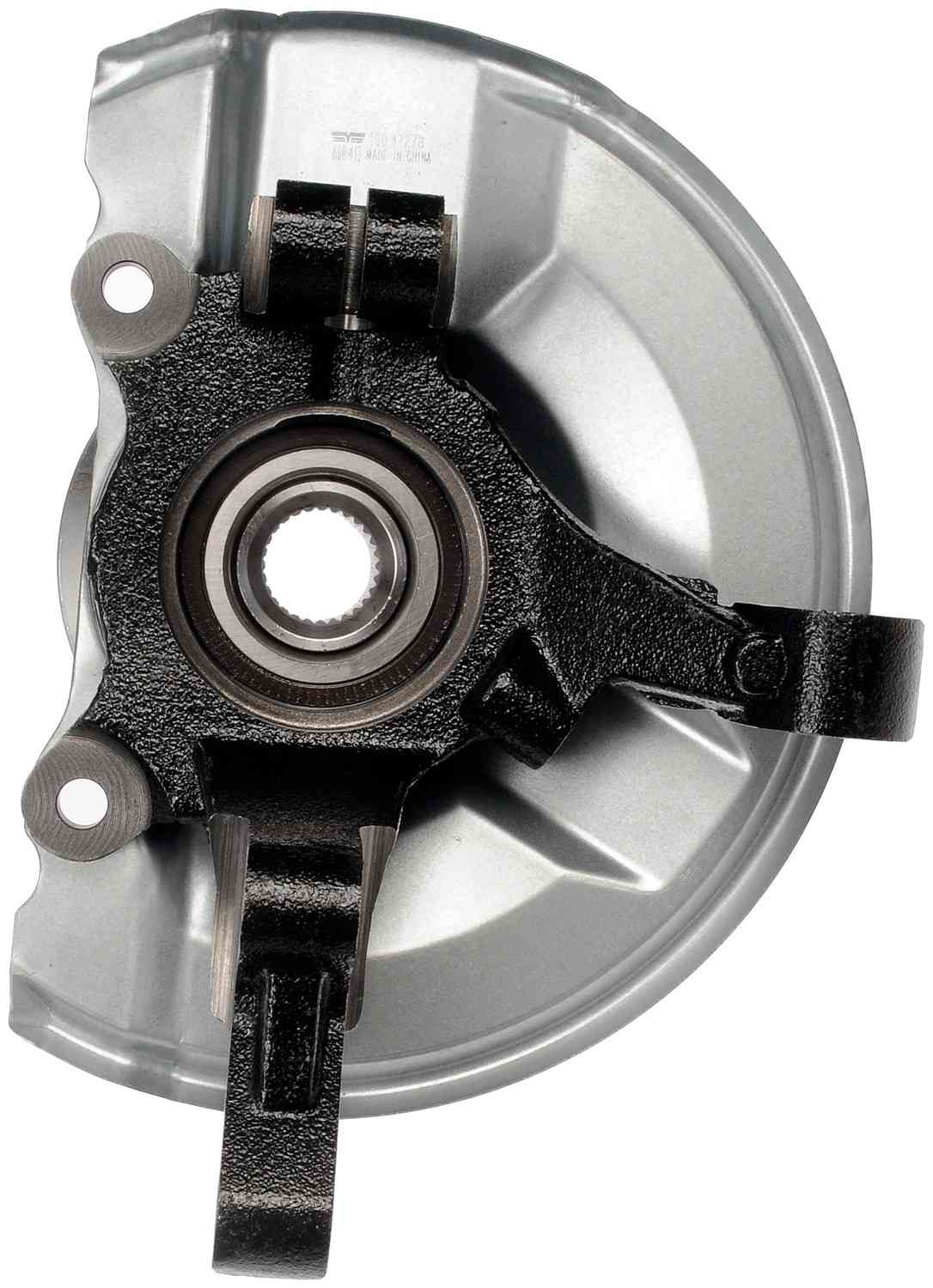

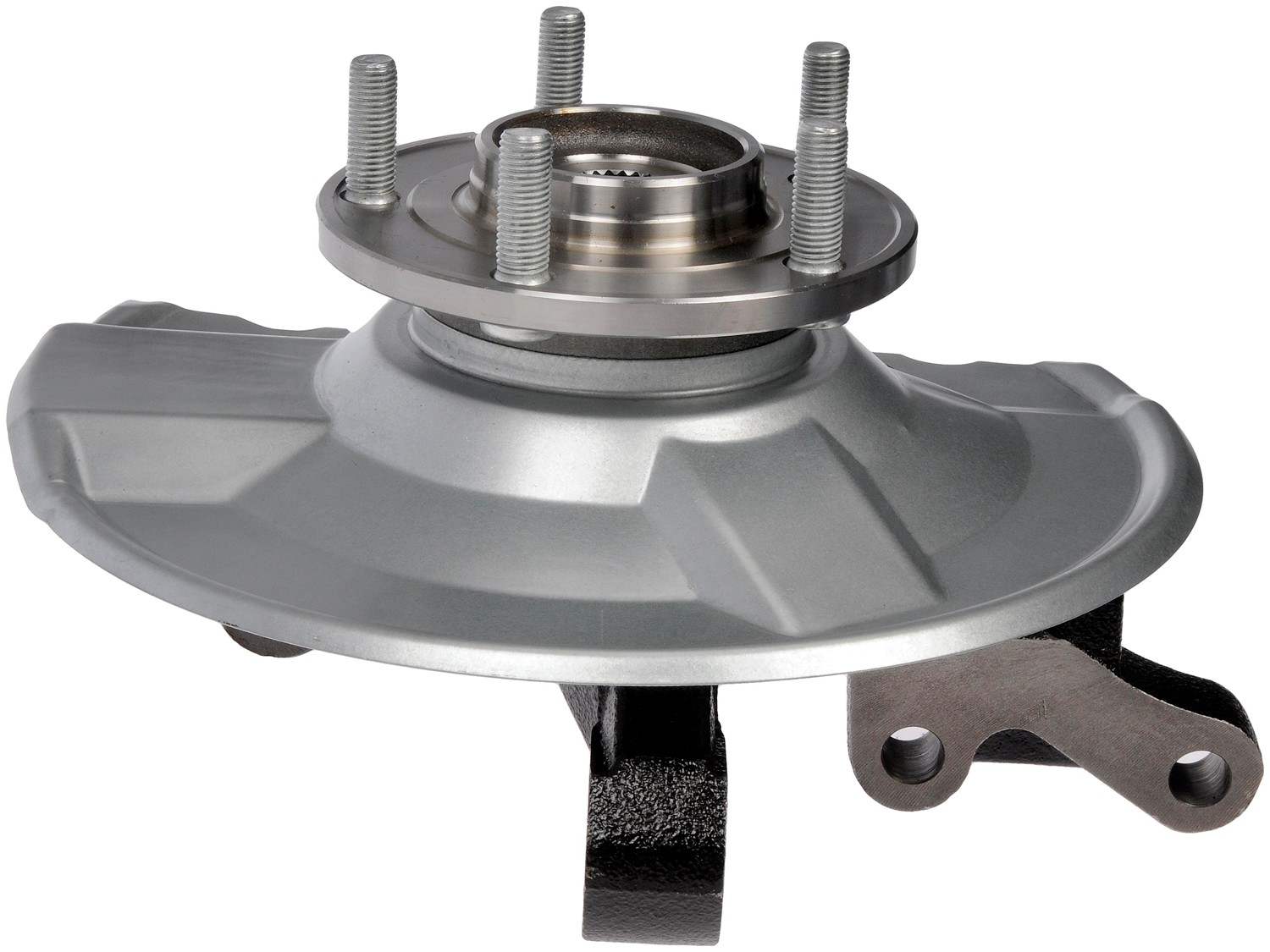

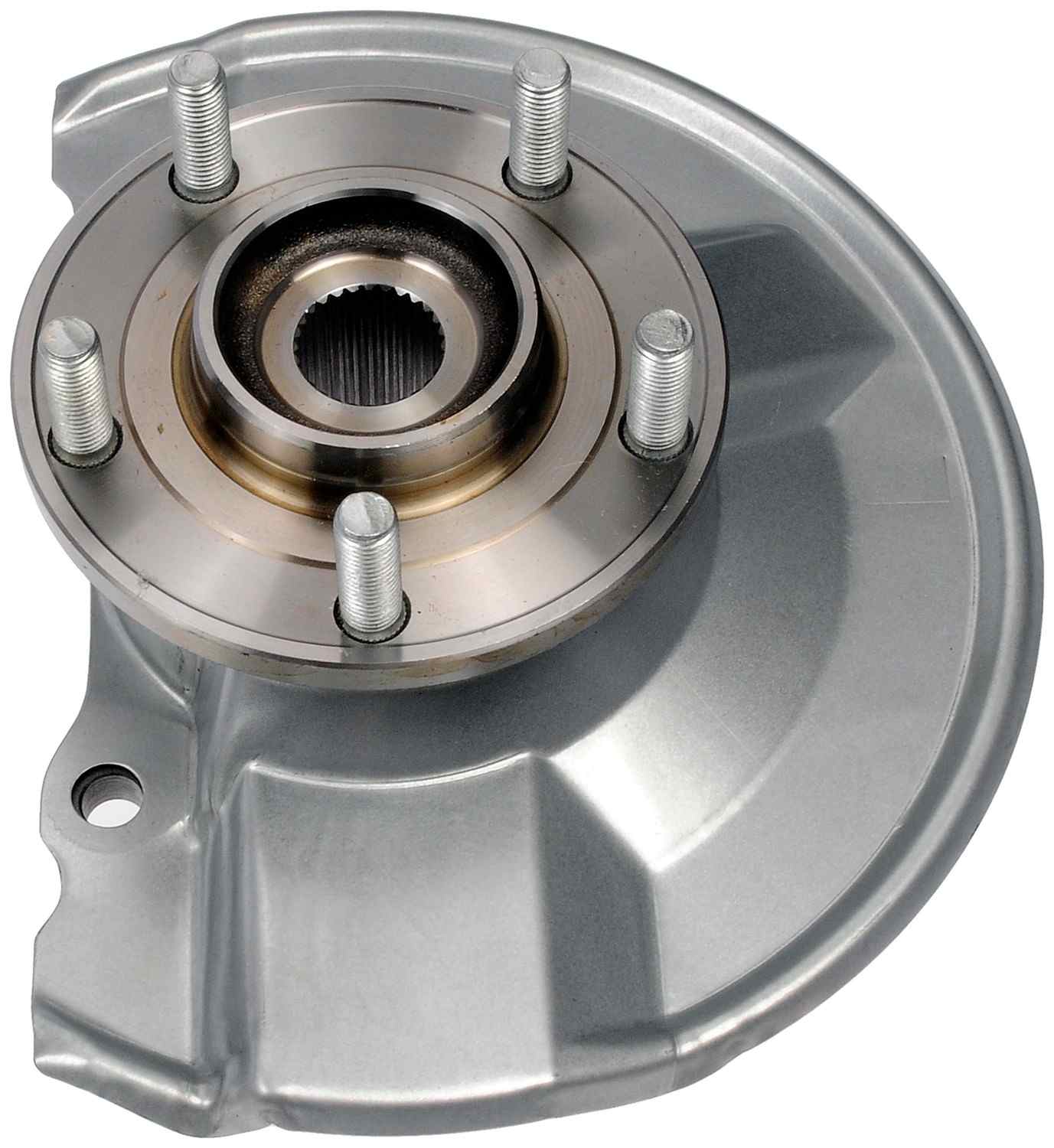

This pre-pressed steering knuckle kit - a.k.a. loaded knuckle - comes with all critical components already assembled for a fast, simple, safe installation. It includes a new knuckle, wheel bearing, hub and application-specific hardware.

" Pre-pressed assembly - this steering knuckle kit includes all necessary components ready for install right out of the box

" Saves hours - eliminates work required to replace individual corroded components

" Simple solution - no need for shop press to perform complete bearing repair

" Reliable fit - precision-engineered to match the dimensions of original equipment

Application Summary: Dodge Caliber 2012-08, Jeep Compass 2017-07, Jeep Patriot 2017-07

Product Specifications

• Anti Lock Brake Sensor Included: Yes
• Anti Lock Braking System: Yes
• Anti Lock Braking System Type: Tone Ring
• Axle Included: No
• Bolt Circle Diameter: 4.5 In.
• Brake Pilot Diameter: 2.71 In.
• Color: Black
• Connector Quantity: 0
• Flange Bolt Hole Diameter: 0.429 In.
• Flange Bolt Hole Quantity: 7
• Flange Bolts Included: Yes
• Flange Diameter: 5.51 In.
• Flange Included: Yes
• Flange Offset: 1.69 In.
• Flange Shape: Circular
• Hub Included: Yes
• Hub Pilot Diameter: 1.69 In.
• Installation Hardware Included: No
• Instruction Manual Included: No
• Item Grade: Standard
• Material: Steel

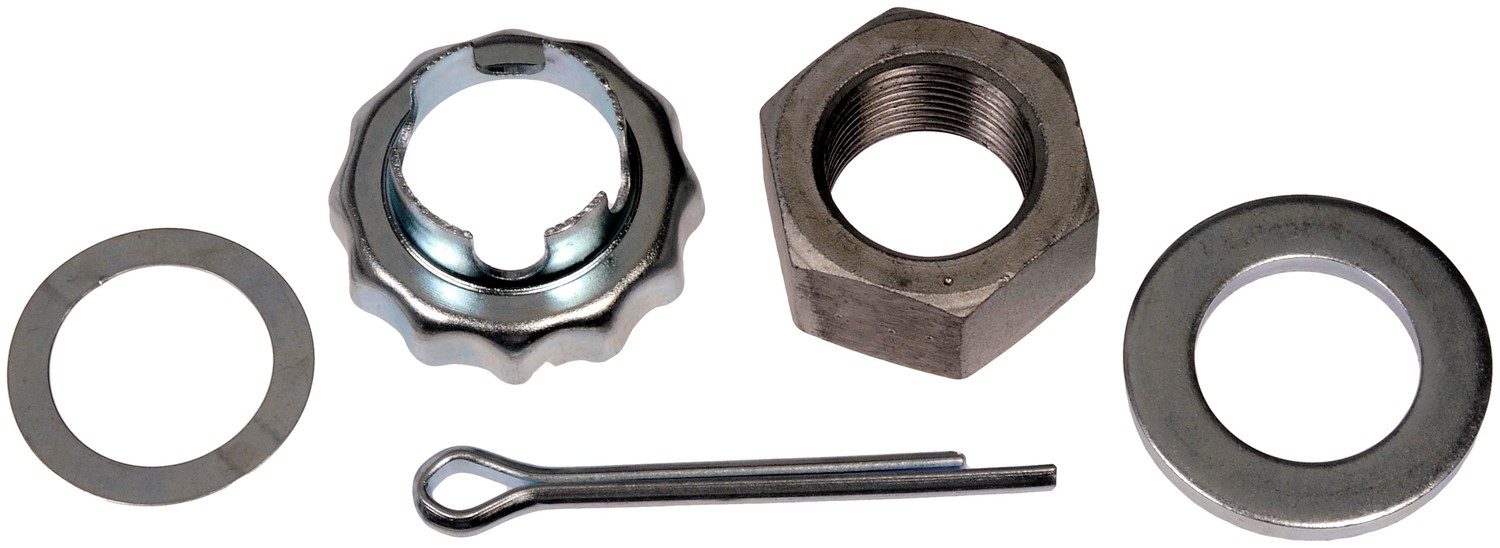

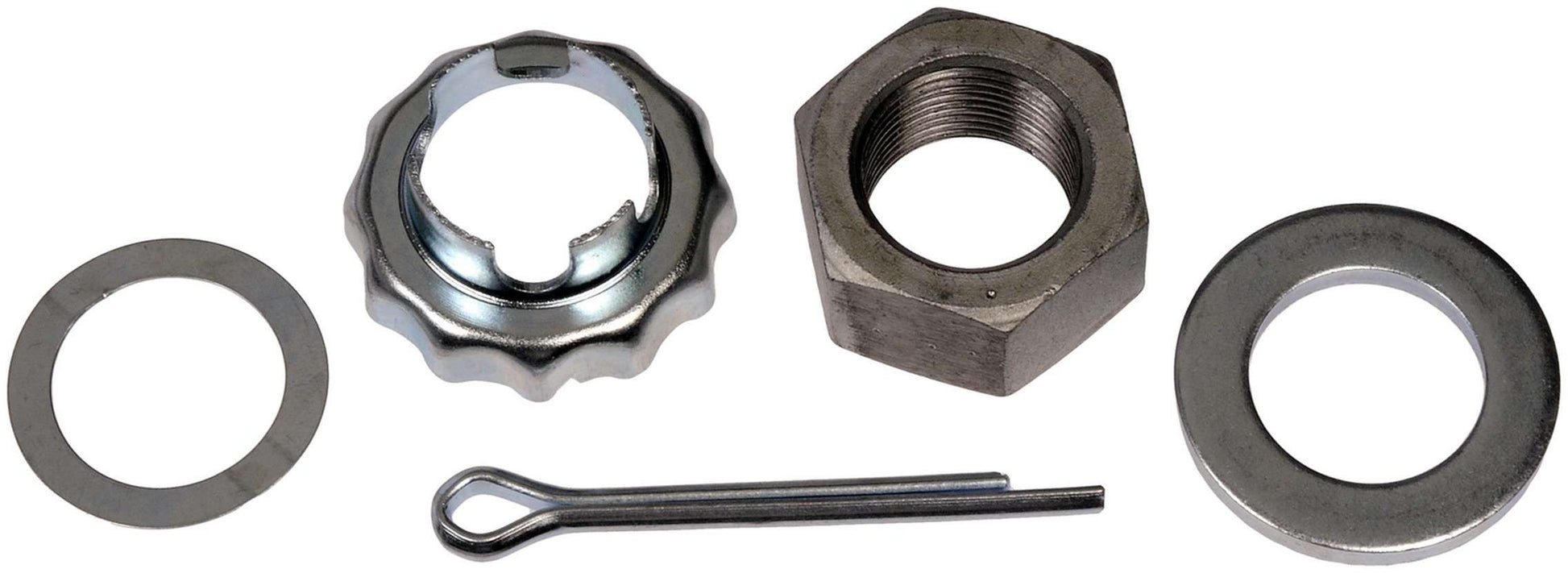

• Package Contents: Knuckle, Backing Plate, Hub, Bearing, Axle Nut
• Package Quantity: 1
• Packaging Type: Box
• Selling Package Quantity UOM: Piece
• Spline Quantity: 28
• Wheel Pilot Diameter: 2.673 In.
• Wheel Stud Quantity: 5
• Wheel Stud Size: M12 X 1.25
• Wheel Studs Included: Yes

Vehicle Fitments:
