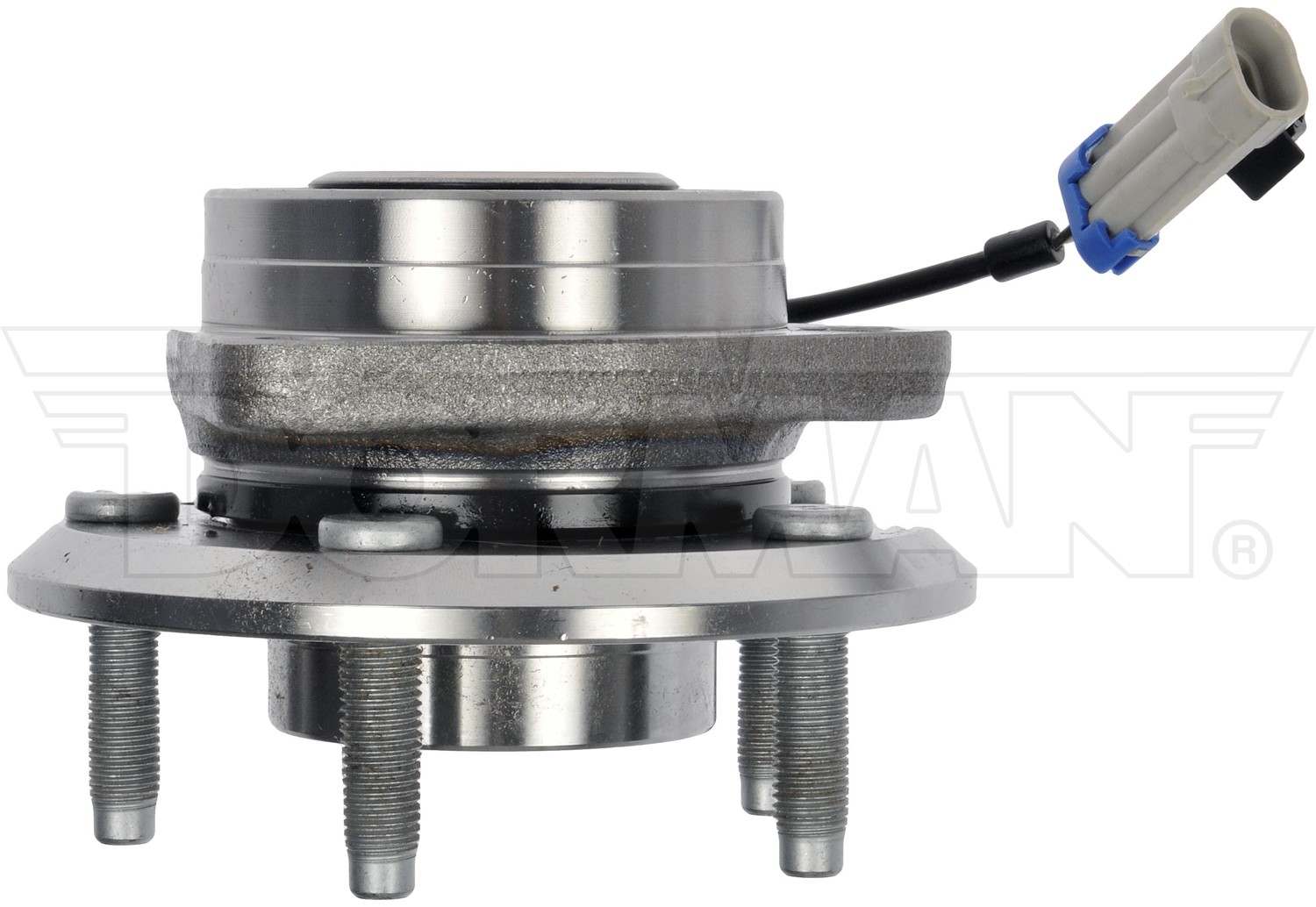

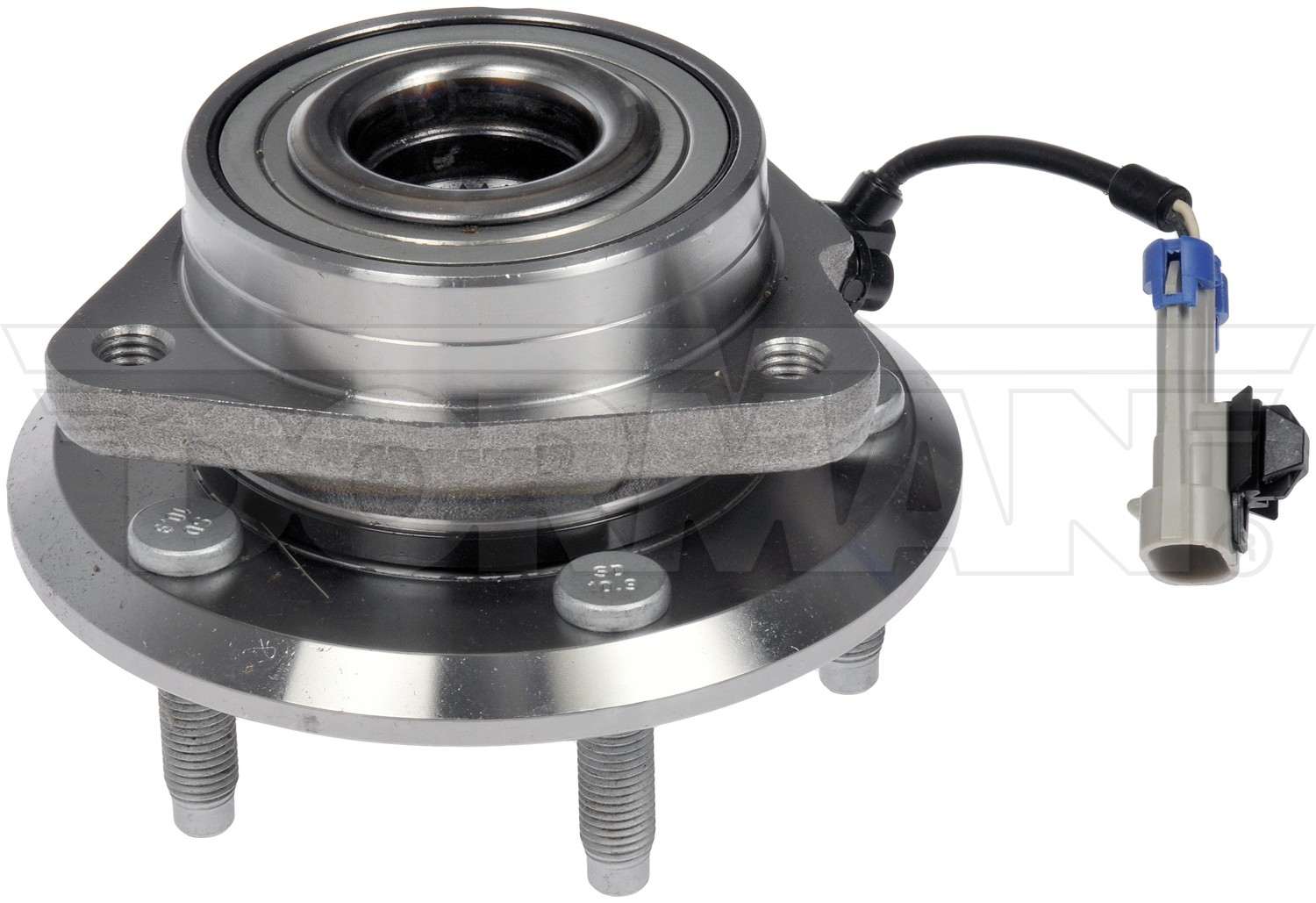

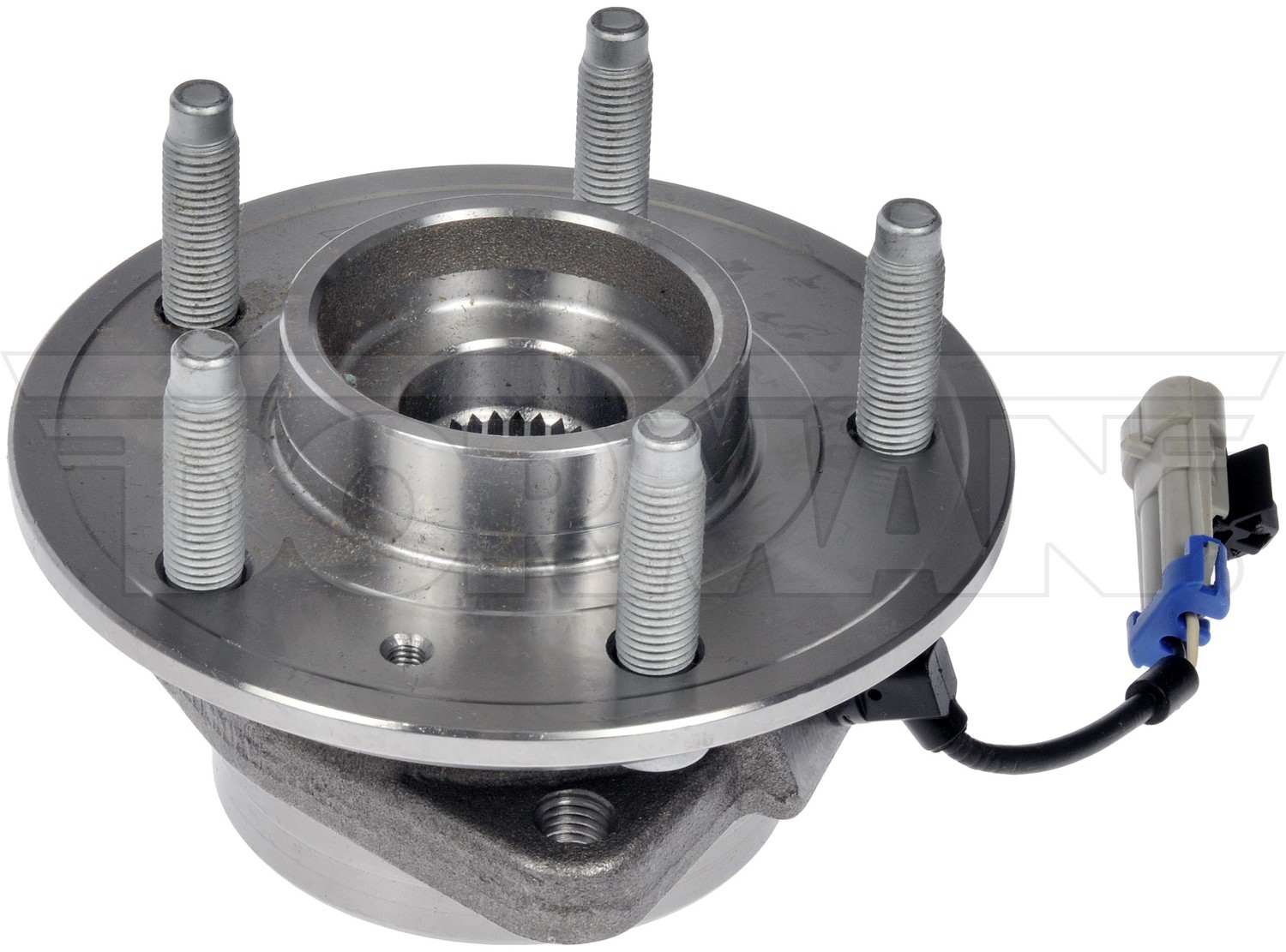

Dorman Wheel Bearing And Hub Assembly

Wheel Hub And Bearing Assembly - Front

To prevent damages to your spindle, wheels and hubs we offer replacement wheel bearing and bub assemblies. All our wheel bearing and hub assemblies are direct replacements for a proper fit.

• Constructed from high-quality materials for extended durability
• Manufactured to strict engineering quality standards
• Replacement eliminates noises associated with original failure
• Axles also available, sold separately

Product Specifications

Anti Lock Braking System: Yes
Anti Lock Braking System Type: Sensor
Bolt Circle Diameter: 115 mm
Brake Pilot Diameter: 70.5 mm
Connector Gender: Male
Connector Quantity: 1
Connector Terminal Quantity: 2
Flange Bolt Hole Diameter: 10 mm
Flange Bolt Hole Quantity: 3
Flange Bolts Included: No
Flange Diameter: 116 mm
Flange Included: Yes
Flange Offset: 42.3 mm
Flange Shape: Triangular
Hub Pilot Diameter: 70.4 mm
Package Contents: Hub Bearing Assembly
Package Quantity: 1
Packaging Type: Box
Selling Package Quantity UOM: Piece
Spline Quantity: 30
Terminal Gender: Male
Wheel Pilot Diameter: 70 mm
Wheel Stud Quantity: 5
Wheel Stud Size: M12x1.5
Wheel Studs Included: Yes

Application Summary: Chevrolet 2015-07, Pontiac 2009-07, Saturn 2010-08, Suzuki 2009-07

Vehicle Fitments:
