Dorman Wheel Bearing and Hub Assembly

SKU: 1GD4T | MPN:  698-409
Only 20 units left
Sale price$352.98 USD

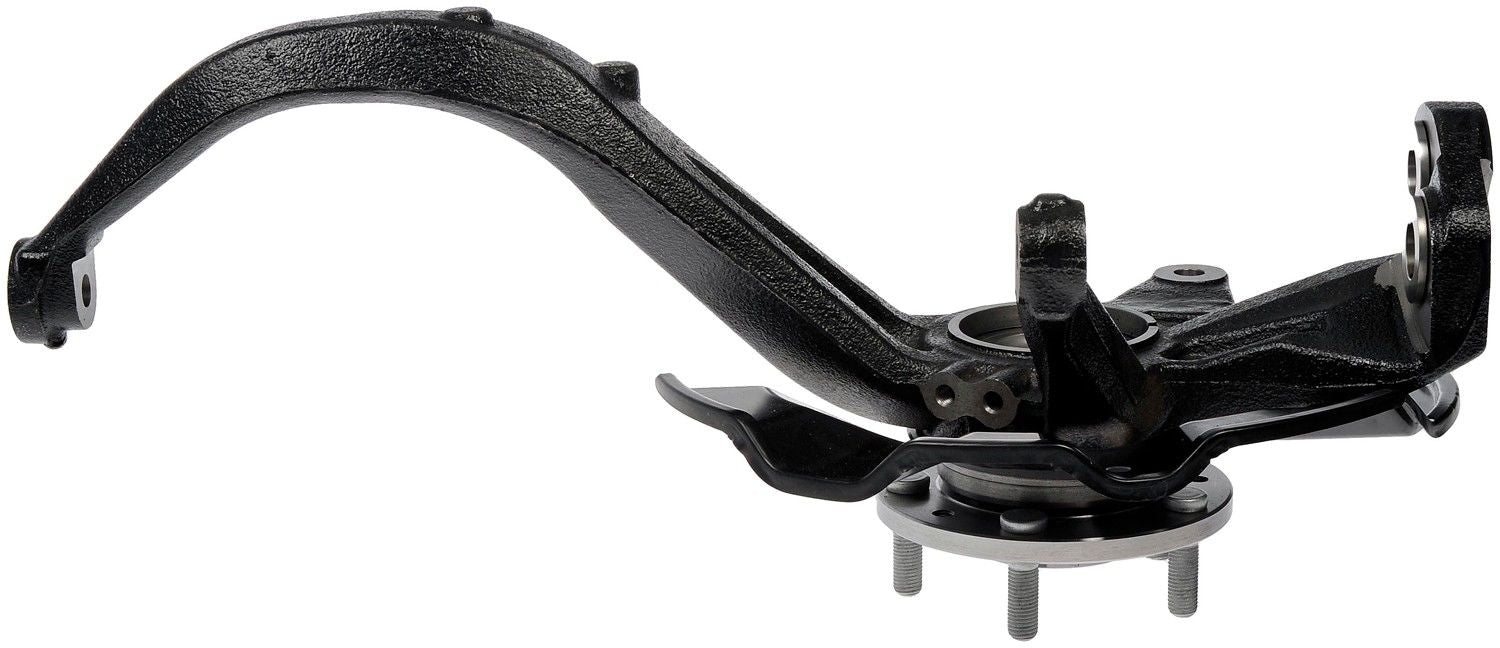

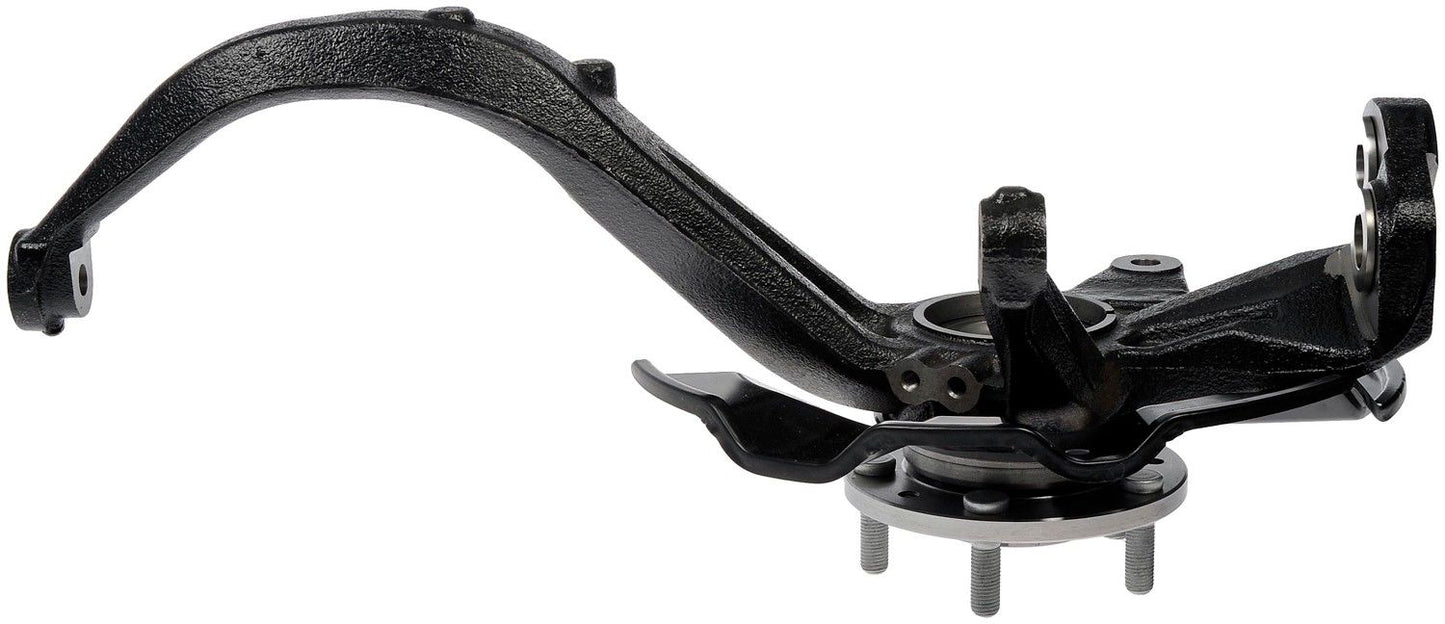

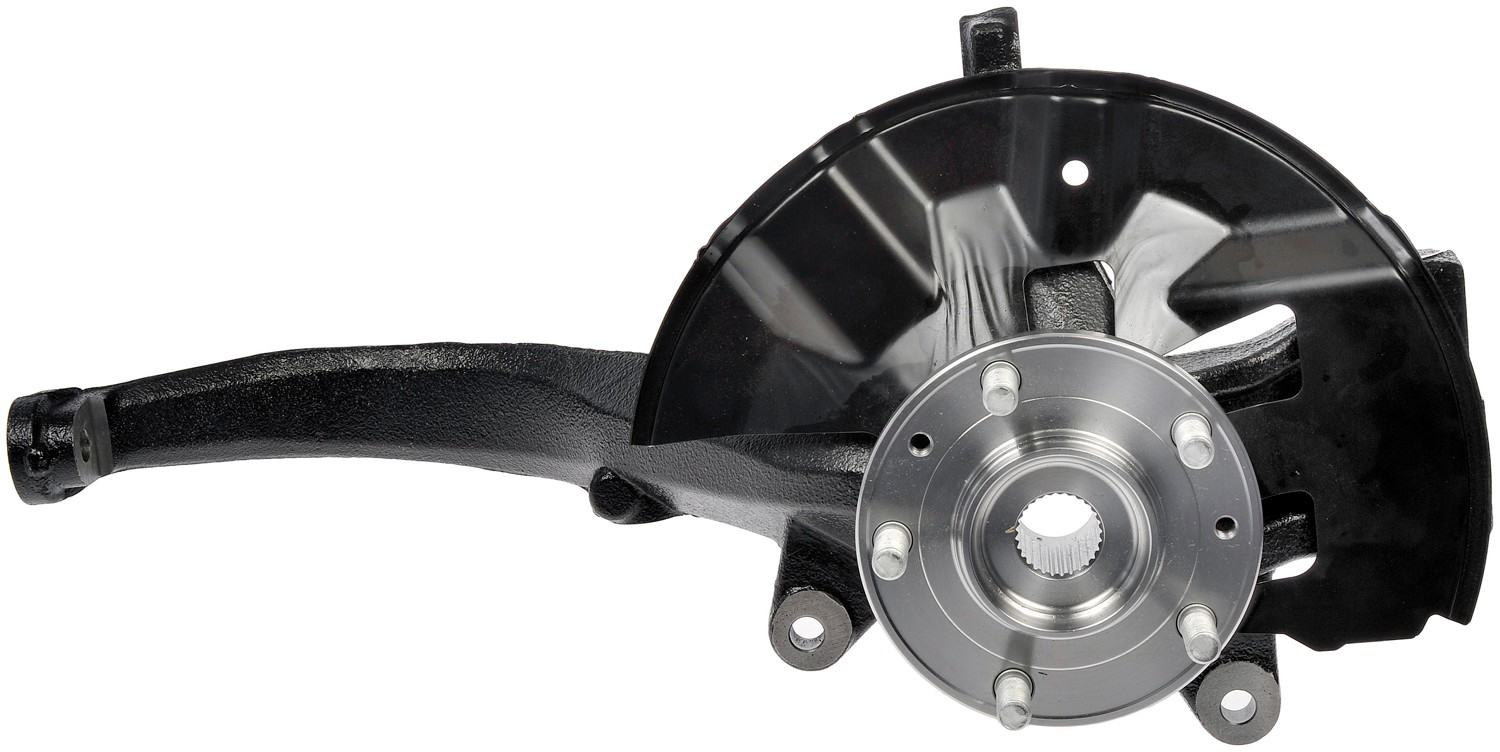

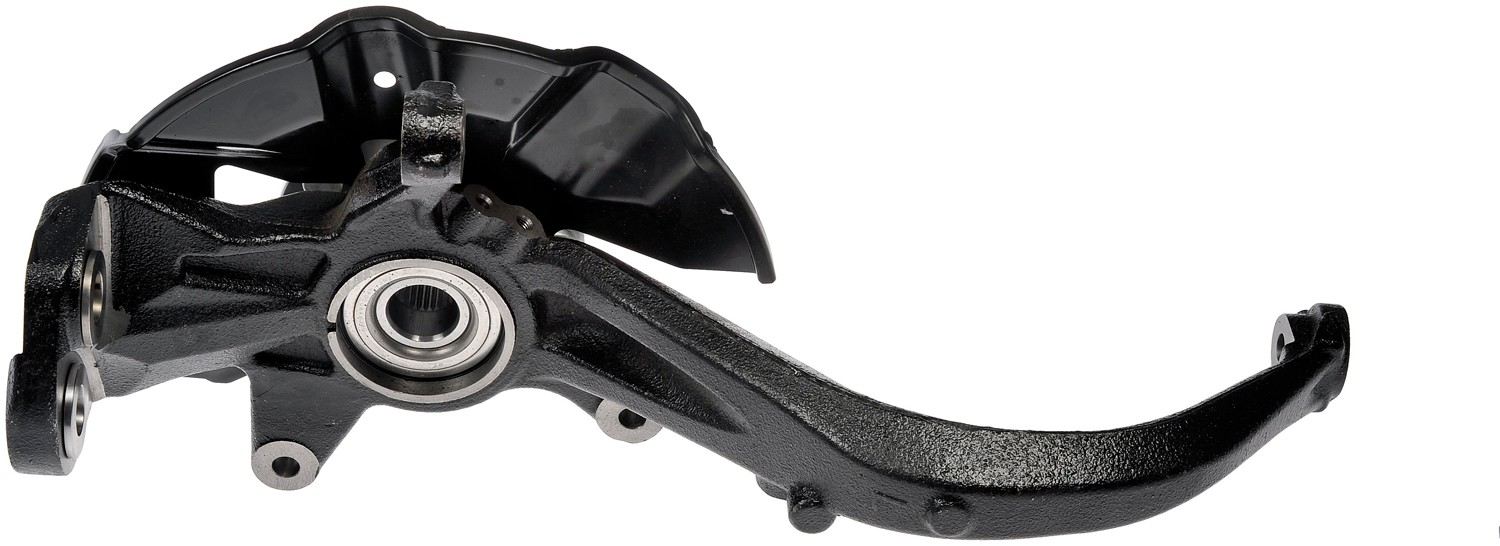

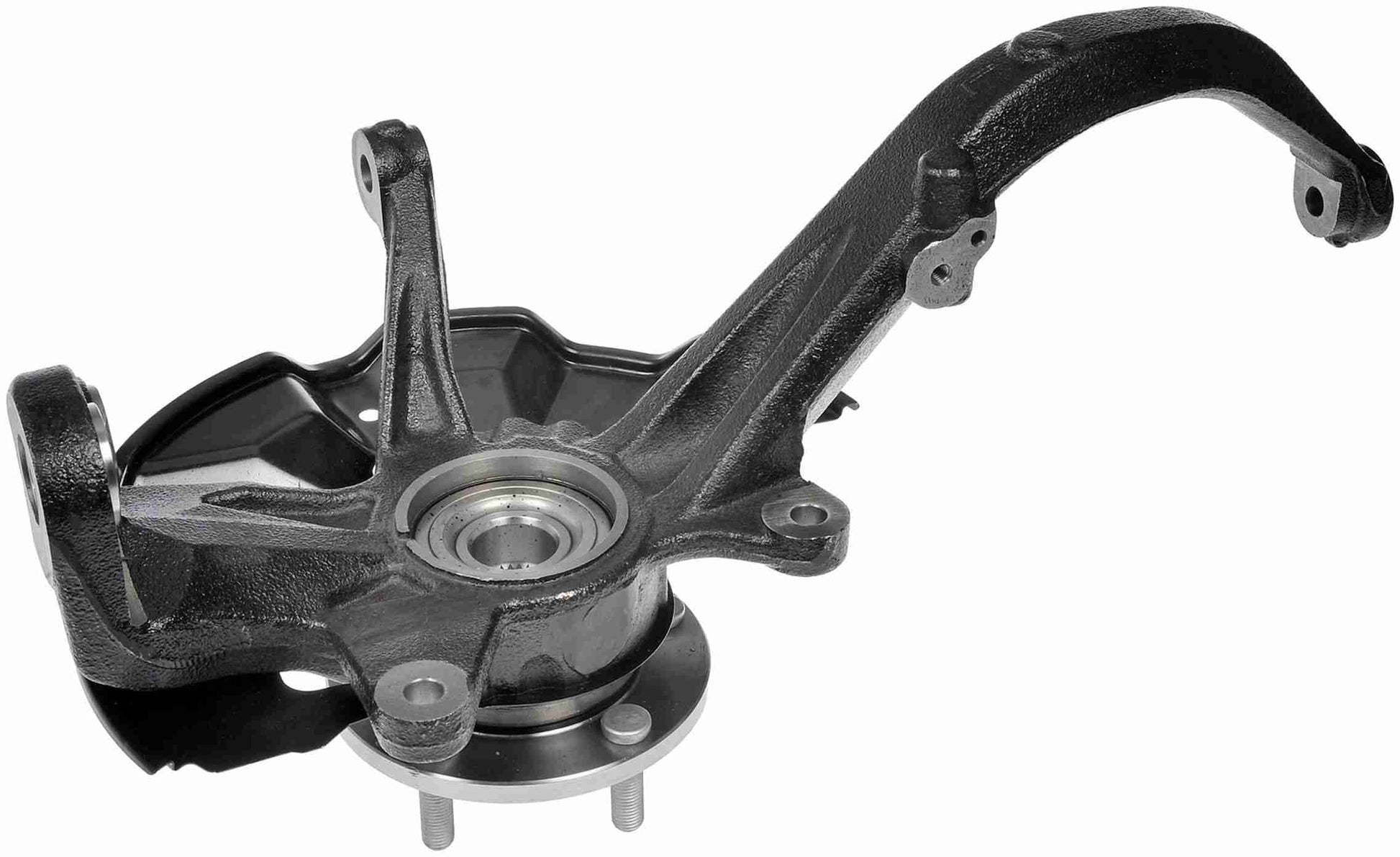

Left Loaded Steering Knuckle

This pre-pressed steering knuckle kit - a.k.a. loaded knuckle - comes with all critical components already assembled for a fast, simple, safe installation. It includes a new knuckle, wheel bearing, hub and application-specific hardware.

" Pre-pressed assembly - this steering knuckle kit includes all necessary components ready for install right out of the box

" Saves hours - eliminates work required to replace individual corroded components

" Simple solution - no need for shop press to perform complete bearing repair

" Reliable fit - precision-engineered to match the dimensions of original equipment

Application Summary: Ford Fusion 2012-06, Lincoln MKZ 2012-07, Lincoln Zephyr 2006, Mercury Milan 2011-06

Product Specifications

  • Anti Lock Brake Sensor Included: No
  • Anti Lock Braking System: Yes
  • Anti Lock Braking System Type: Sensor
  • Axle Included: No
  • Bolt Circle Diameter: 4.5 In.
  • Brake Pilot Diameter: 2.83 In.
  • Color: Black
  • Connector Quantity: 0
  • Flange Bolt Hole Diameter: 0.19 In.
  • Flange Bolt Hole Quantity: 5
  • Flange Bolts Included: Yes
  • Flange Diameter: 5.51 In.
  • Flange Included: Yes
  • Flange Shape: Circular
  • Hub Included: Yes
  • Hub Pilot Diameter: 1.65 In.
  • Installation Hardware Included: No
  • Instruction Manual Included: No
  • Item Grade: Standard
  • Material: Steel

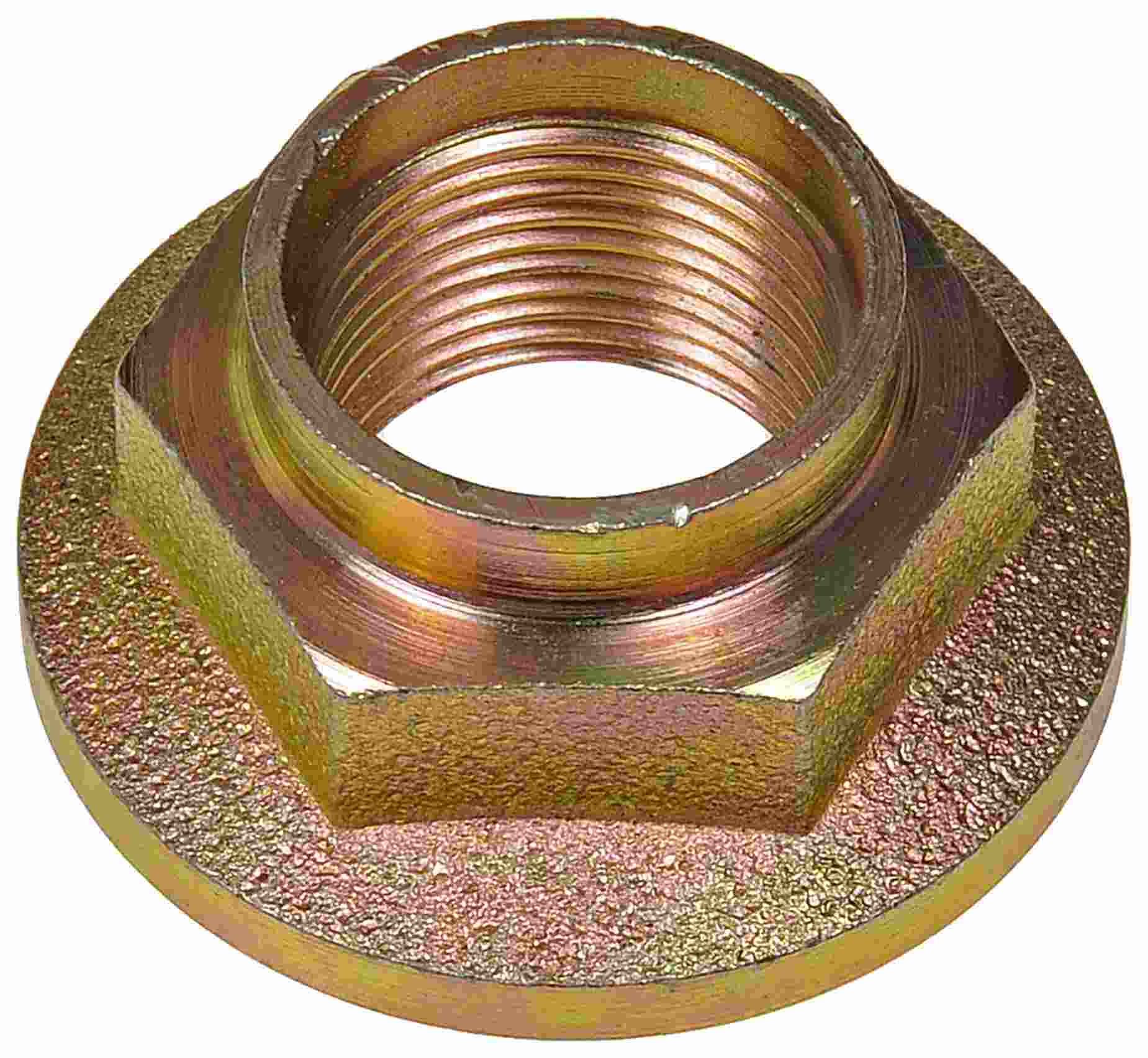

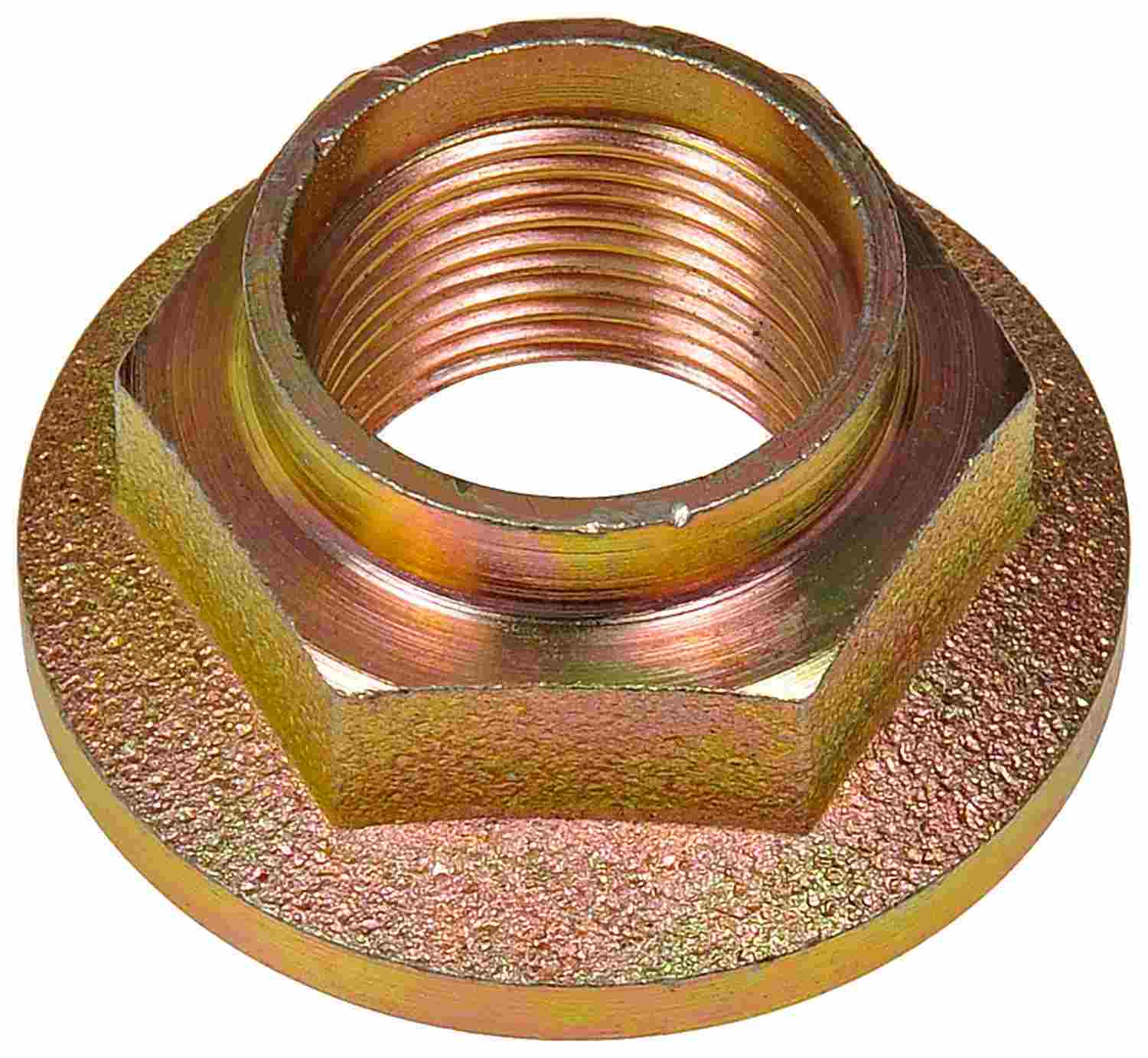

  • Package Contents: 1 Steering Knuckle, 1 Brake Dust Shield, 1 Hub Assembly, 1 Spindle Nut
  • Package Quantity: 1
  • Packaging Type: Box
  • Selling Package Quantity UOM: Piece
  • Spline Quantity: 28
  • Wheel Pilot Diameter: 2.63 In.
  • Wheel Stud Quantity: 5
  • Wheel Stud Size: 10 mm
  • Wheel Studs Included: Yes


Vehicle Fitments:

Year Make Model Submodel
2006 - 2009 Ford Fusion SEL Plus
2006 - 2012 Ford Fusion SEL, SE, S
2010 - 2012 Ford Fusion Sport, Hybrid
2007 - 2012 Lincoln MKZ Base
2011 - 2012 Lincoln MKZ Hybrid
2006 Lincoln Zephyr Premium, Base
2010 - 2011 Mercury Milan Hybrid
2006 - 2011 Mercury Milan Premier, Base
