Dorman Wheel Bearing and Hub Assembly

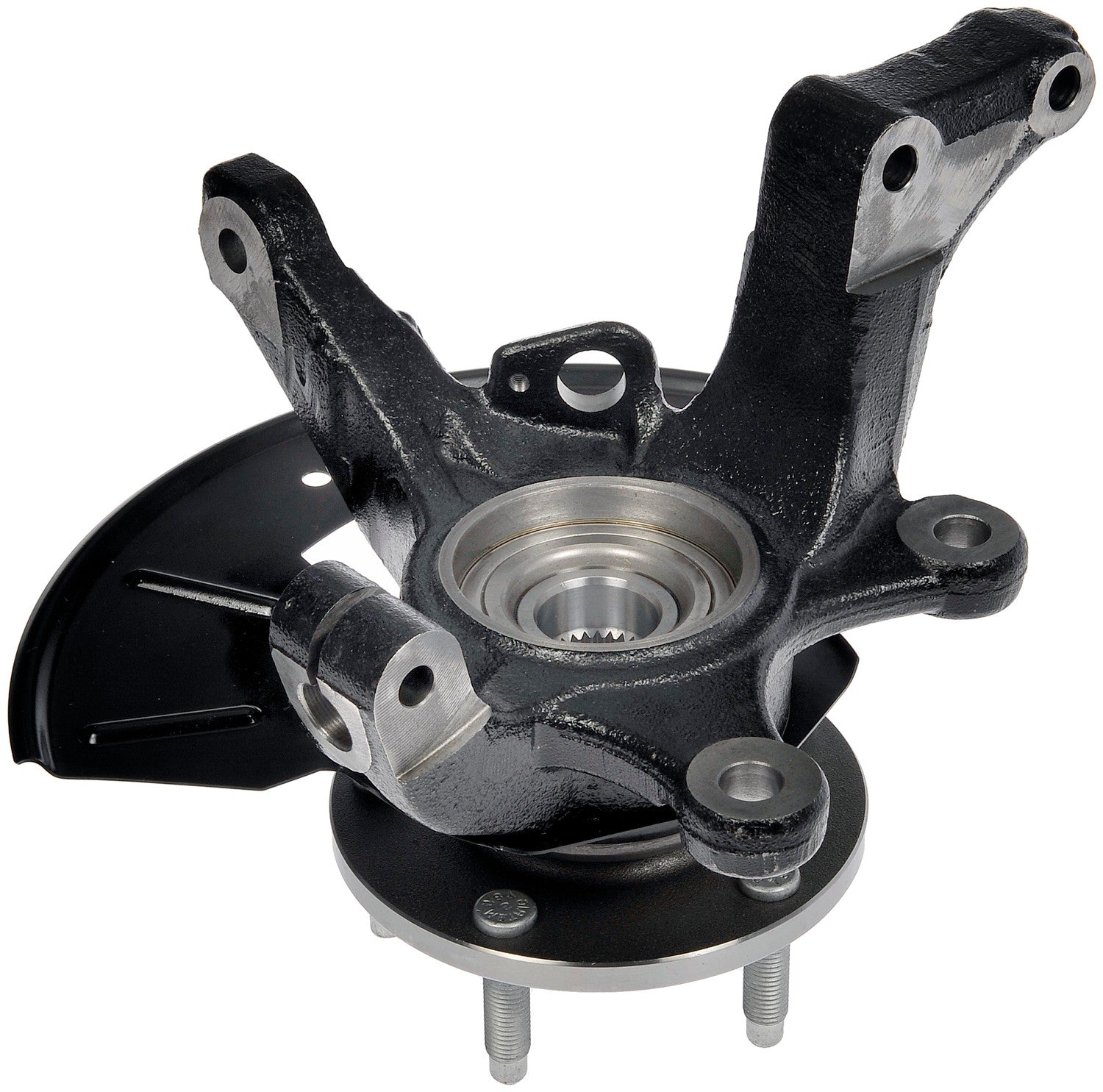

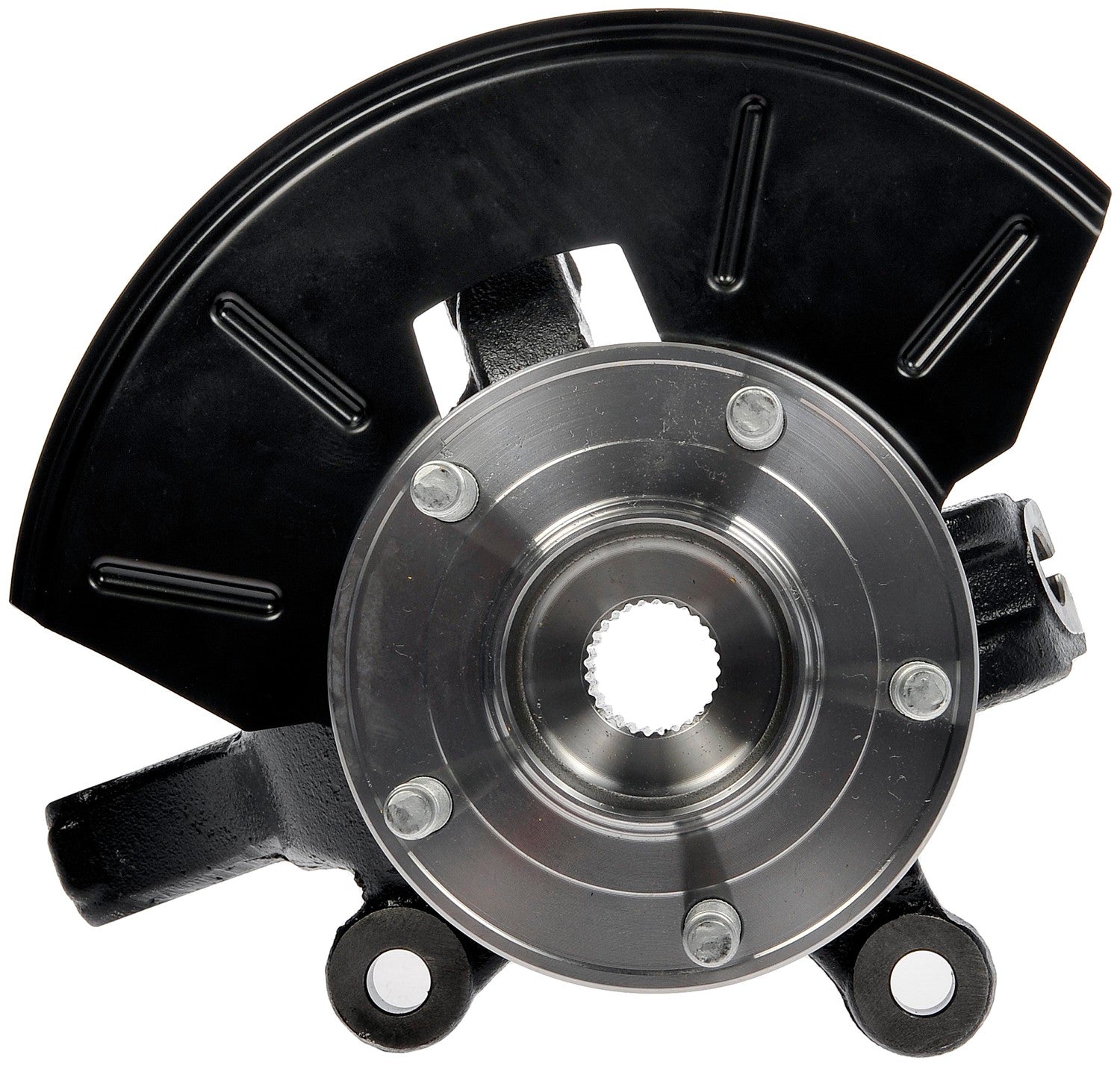

Left Loaded Steering Knuckle

This pre-pressed steering knuckle kit - a.k.a. loaded knuckle - comes with all critical components already assembled for a fast, simple, safe installation. It includes a new knuckle, wheel bearing, hub and application-specific hardware.

" Pre-pressed assembly - this steering knuckle kit includes all necessary components ready for install right out of the box

" Saves hours - eliminates work required to replace individual corroded components

" Simple solution - no need for shop press to perform complete bearing repair

" Reliable fit - precision-engineered to match the dimensions of original equipment

Application Summary: Ford Escape 2004-01, Mazda Tribute 2004-01

Product Specifications

• Anti Lock Brake Sensor Included: No
• Anti Lock Braking System: Yes
• Anti Lock Braking System Type: Sensor
• Axle Included: No
• Bolt Circle Diameter: 4.5 In.
• Brake Pilot Diameter: 2.63 In.
• Color: Black
• Connector Quantity: 0
• Flange Bolt Hole Diameter: 4.5 In.
• Flange Bolt Hole Quantity: 5
• Flange Bolts Included: Yes
• Flange Diameter: 2.83 In.
• Flange Included: Yes
• Flange Offset: 1.7 In.
• Flange Shape: Circular
• Hub Included: Yes
• Hub Pilot Diameter: 1.65 In.
• Installation Hardware Included: No
• Instruction Manual Included: No
• Item Grade: Standard
• Material: Steel

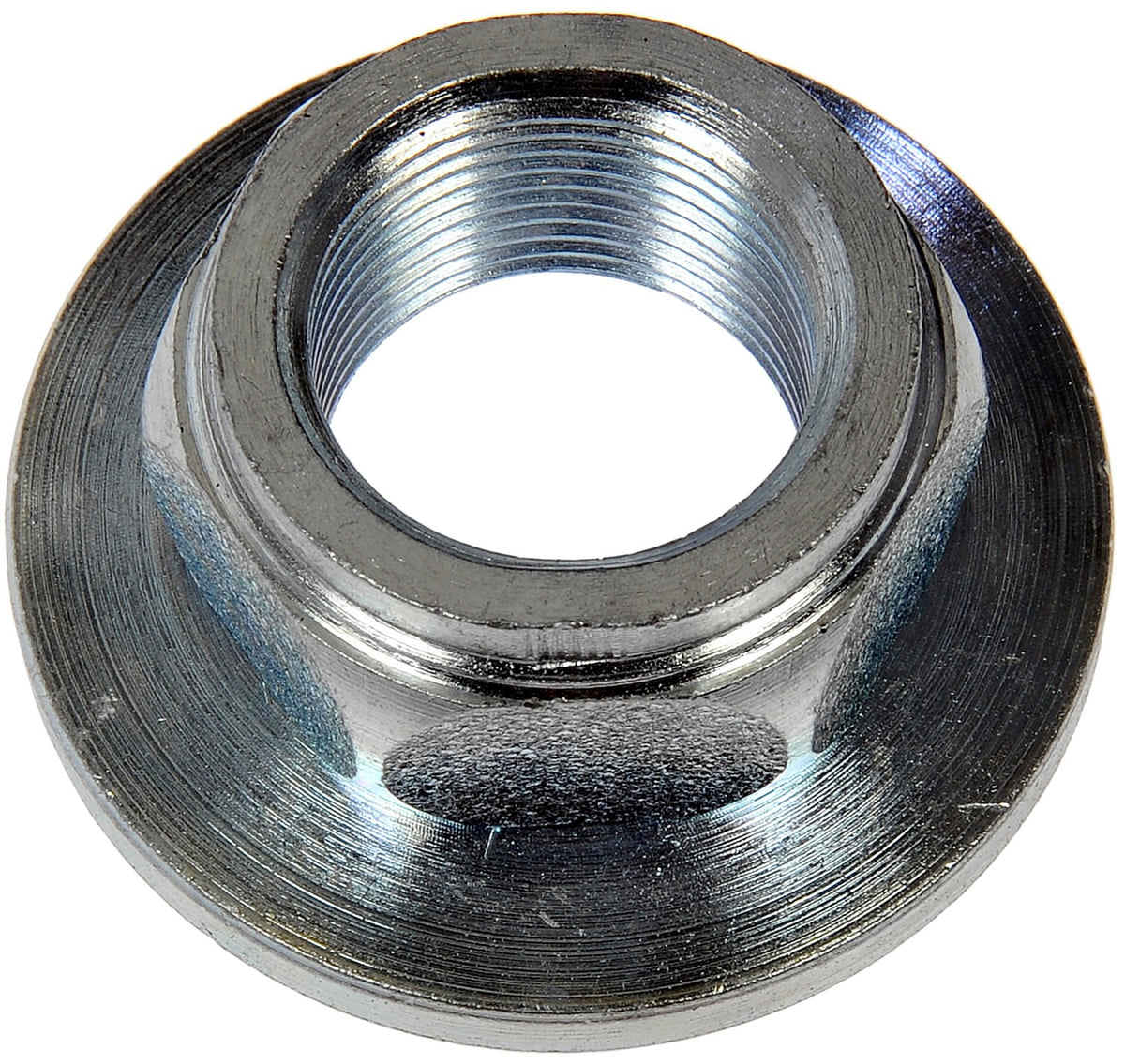

• Package Contents: Knuckle, Backing Plate, Hub, Bearing, Axle Nut
• Package Contents: 1 Knuckle, Backing Plate, Hub, Bearing, Axle Nut
• Package Quantity: 1
• Packaging Type: Box
• Selling Package Quantity UOM: Piece
• Spline Quantity: 28
• Wheel Pilot Diameter: 2.63 In.
• Wheel Stud Quantity: 5
• Wheel Stud Size: 10 mm
• Wheel Studs Included: Yes

Vehicle Fitments:
