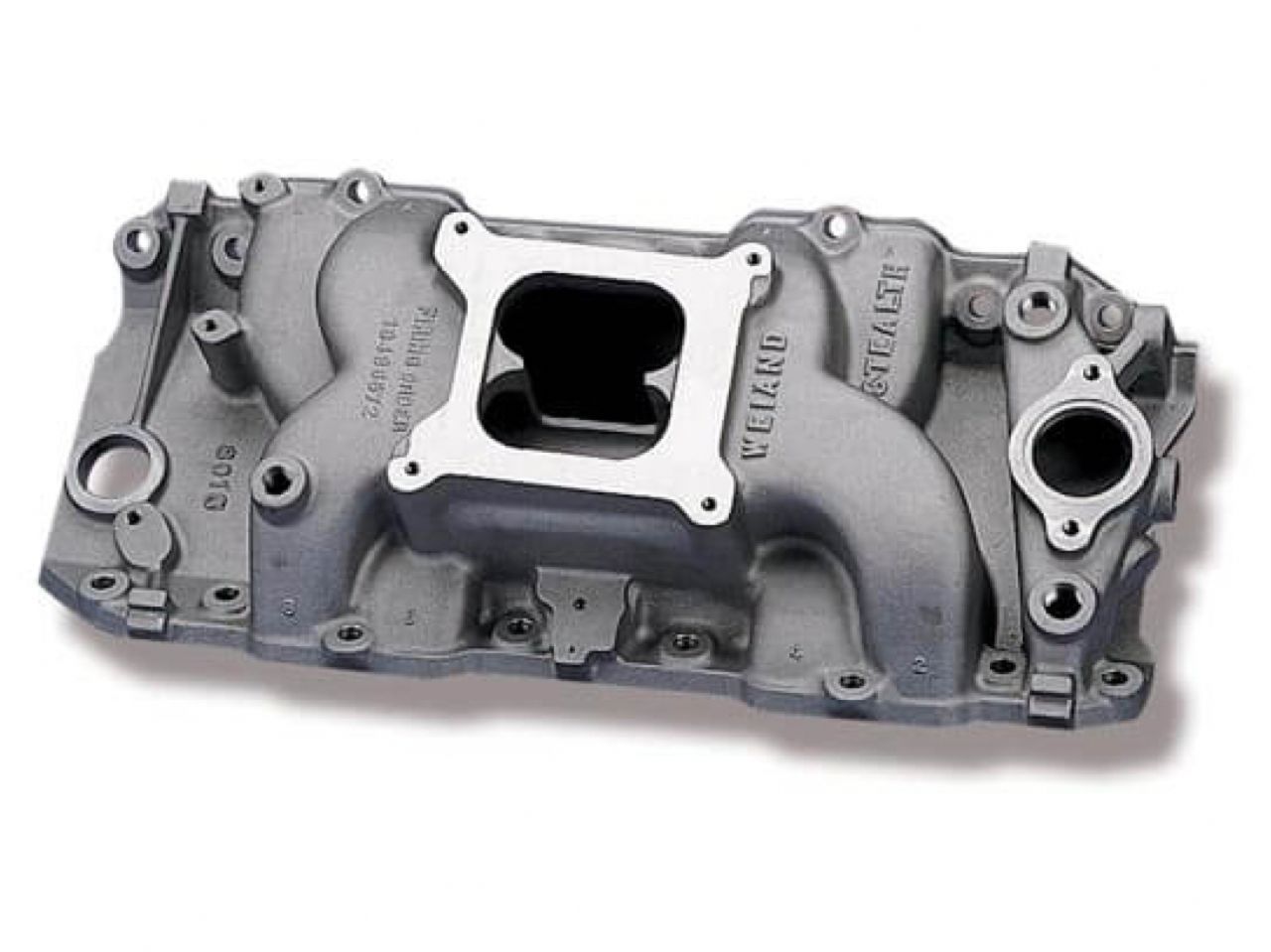

Weiand Chevy Big Block V8 Stealth Series with Performance Oval Port Heads
Chevy Big Block V8 Stealth Series with Performance Oval Port Heads, Intake Manifold 396ci-502ci
This manifold is designed to be used with performance oval port heads. This manifold is part of the Weiand Nostalgia Series of intake manifolds. Weiand Nostalgia Series intake manifolds are made using the original tooling, and may have minor appearance imperfections that do not affect the functionality of the part. These minor blemishes are a natural part of the casting process when using the original sand casting tooling. Weiand Nostalgia series intakes are proudly cast and machined in the USA. We support all areas of the vintage, show, and nostalgia car hobby, and want to continue to produce these lower volume manifolds using the original tools. There is no need to search for that vintage intake at swap meets or on the internet when you can buy the real deal new from Weiand! If you are not satisfied with a Nostalgia Series intake, we will gladly exchange it or refund your money. Our tech service representatives can be reached at 1-866-464-6553.
Features:
- High Rise/Dual Plane Design
- Port Size: 1.84" height 1.64" width
- Height: Front 4.75", Rear 5.75"
- Power band: Idle-6500 RPM
- Machined for Standard Deck Blocks
- 4150 Style Square Bore Mounting Flange
- Weiand Nostalgia Series Intake Manifold
Specs:
| Barrels | 4 |
|---|---|
| Brand | Weiand |
| Construction | Cast |
| Emission Code | 3 |
| Engine | Chevy Big Block V8 |
| Finish | Satin |
| Front Height | 4.75 inch |
| Fuel System Type | Carb |
| Manifold Type | High Rise |
| Product Type | Intake Manifold |
| Rear Height | 5.75 inch |
| RPM Power Band | Idle-6500 |
Emissions:
3
This part is legal for use on Uncontrolled (Non-Emissions Controlled) Vehicles or Racing Vehicles.
The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles:
- 1965 and older U.S. manufactured California Certified vehicles
- 1967 and older U.S. manufactured Federally Certified vehicles
- 1967 and older Foreign manufactured vehicle
Racing Vehicles are vehicles that are used exclusively for racing or other forms of competition that are not registered and that may never be used on the street.
