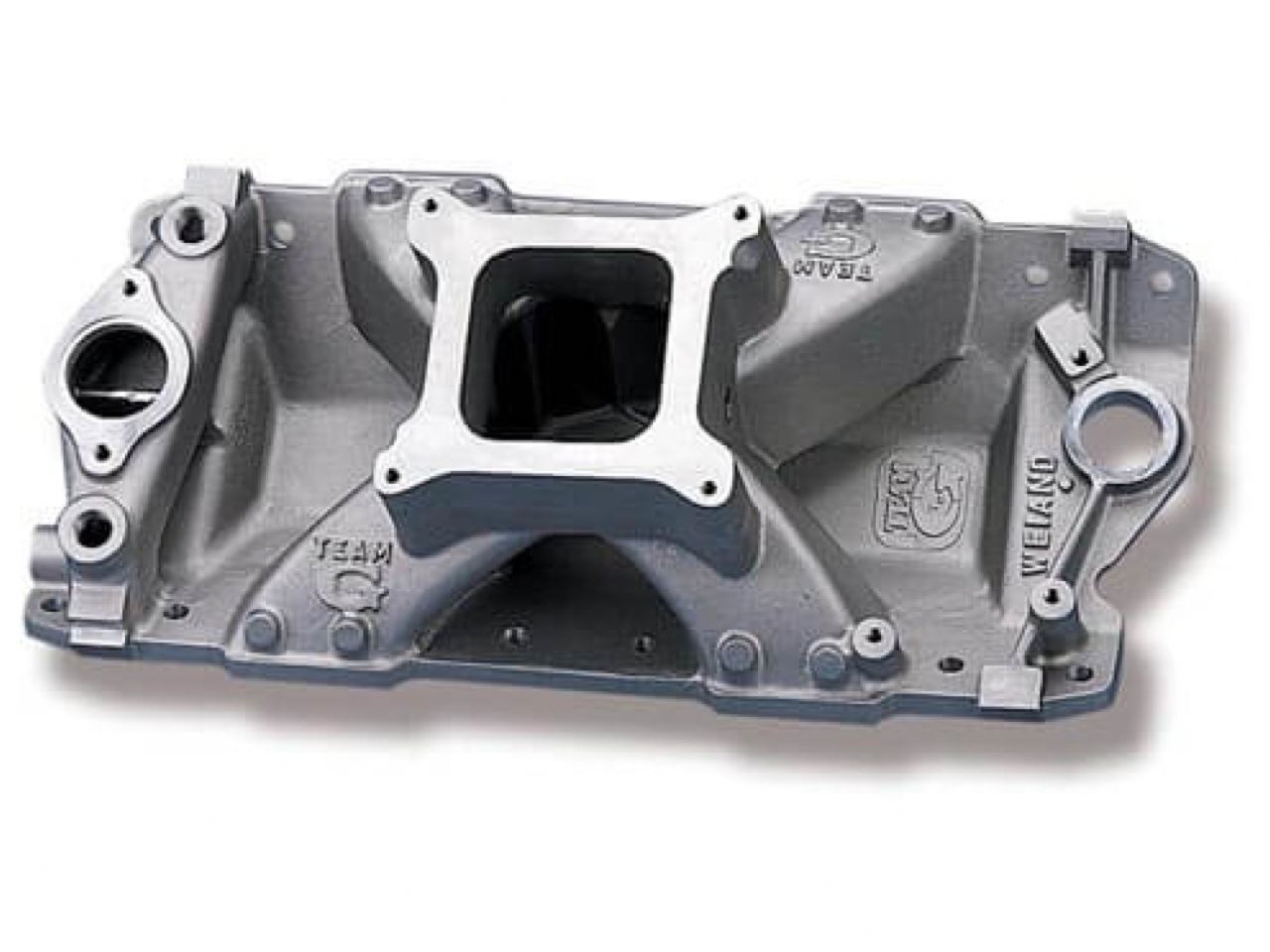

Weiand Manifold, SBC Early SP SQ
This manifold is part of the Weiand Nostalgia Series of intake manifolds. Weiand Nostalgia Series intake manifolds are made using the original tooling, and may have minor appearance imperfections that do not affect the functionality of the part. These minor blemishes are a natural part of the casting process when using the original sand casting tooling. Weiand Nostalgia series intakes are proudly cast and machined in the USA. We support all areas of the vintage, show, and nostalgia car hobby, and want to continue to produce these lower volume manifolds using the original tools. There is no need to search for that vintage intake at swap meets or on the internet when you can buy the real deal new from Weiand!
Features:
- Single Plane with Isolated Plenum
- Plenum raised 2.0" compared to 7530
- Square Carburetor Mounting Flange
- Isolated Water cross-over
- Power band: 3000-8200 RPM
- Height: Front 5.63", Rear 6.56"
- Port Size: 2.10" height 1.24" width
- Weiand Nostalgia Series Intake Manifold
| Barrels | 4 |
|---|---|
| Construction | Cast |
| Emission Code | 3 |
| Engine | Chevy Small Block V8 |
| Finish | Satin |
| Front Height | 5.63 inch |
| Fuel System Type | Carb |
| Manifold Type | High Rise |
| Product Type | Intake Manifold |
| Rear Height | 6.56 inch |
| RPM Power Band | 3000-8200 |
