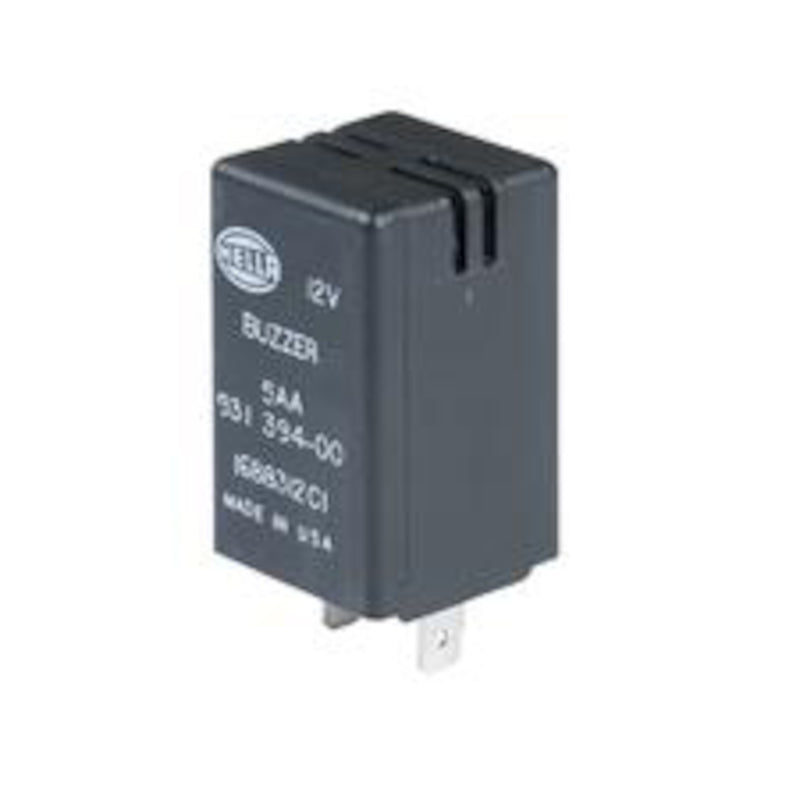

Hella Warning Buzzer Relay

Features:

• 3 Pin Buzzer Unit - 12V
• Dual rate buzzer with slow and fast modes
• Connection: Apply voltage to power terminal (B+) and apply ground to either slow terminal or fast terminal depending on desired buzzer rate.

Technical Data:

• Sound Level: 90dB at 1 foot
• Sound Frequency: 4000Hz +/- 20%
• Slow Rate: 60 CPM +/- 20%
• Fast Rate: 120 CPM +/- 20%
