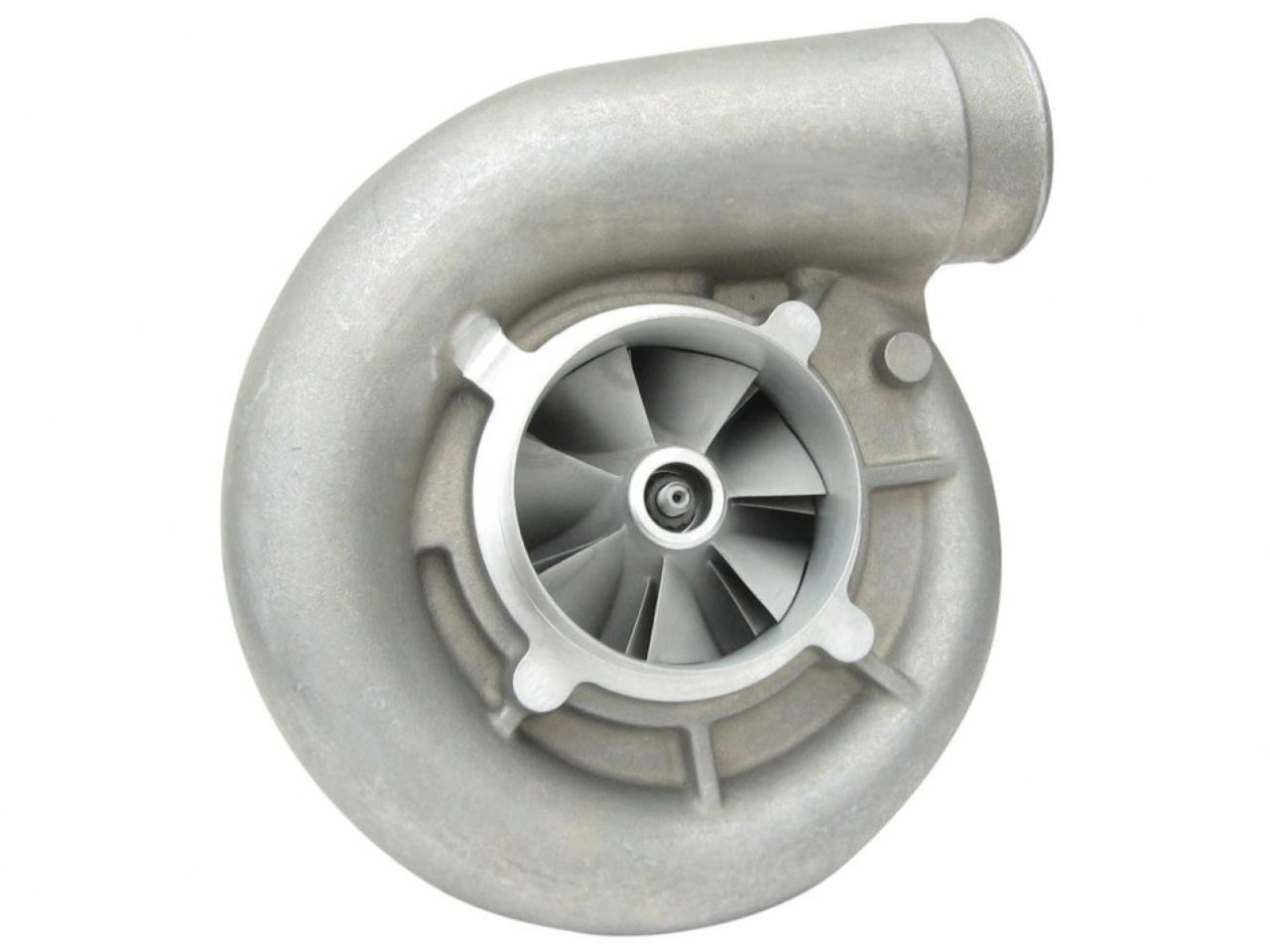

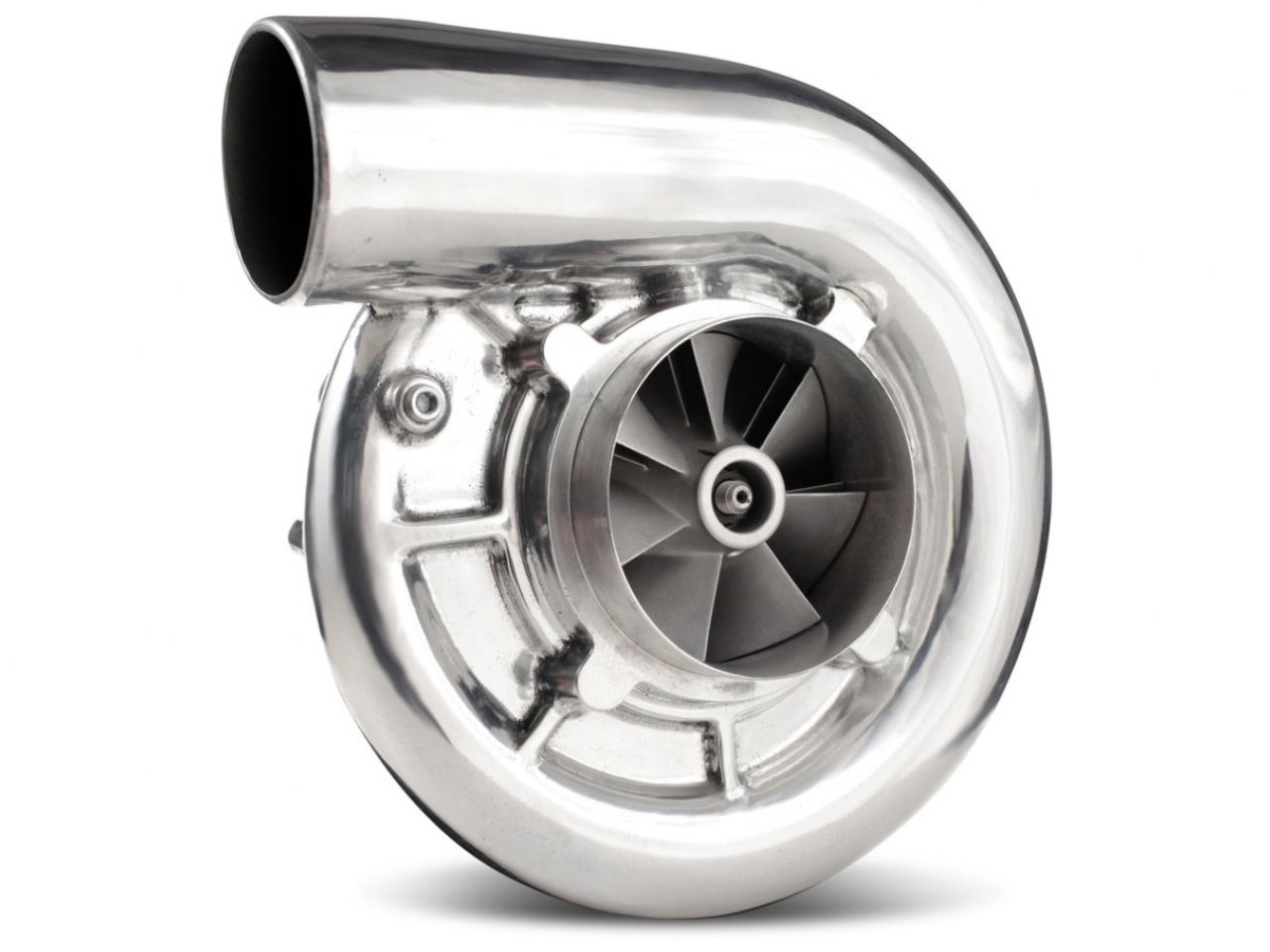

Vortech V-7 Curved Discharge Heavy Duty YSi Supercharger, Polished

Vortech V-7 Curved Discharge Heavy Duty YSi Supercharger, Polished

sku: 06LHC | mpn: 2A158-078
$3,877.40
$4,001.99 $3,877.40
Sale Sold out
Shipping calculated at checkout.

Out of stock

Emissions

This is not an emissions item.
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

"Large blower" performance in a smaller package that fits most existing Vortech bracketry. The V-7 Series combines the advanced technology and race-proven performance and fits most of our existing mounting bracketry. The V-7 is designed for vehicles with highly modified engines and extreme CFM/boost demands. All units feature our exclusive D-port volute for improved efficiency and require the use of a Vortech Racing Bypass Valve or larger to meet discharge flow demands. The heavy duty (H/D) configuration includes high speed, ceramic hybrid ball bearings, ideal for race applications, and is compatible with cog pulley/Gilmer style drive setups.

Performance Specs

  • Internal Step-Up Ratio: 3.45:1
  • Max Speed: 66,000 RPM
  • Max Boost: 30+ PSI
  • Max Flow: 1,600 CFM
  • Max Power: 1,200+ HP
  • Peak Efficiency: 78%

Dimensions

  • Discharge OD: 3.0"
  • Inlet OD: 4.0"
  • Discharge ID: 2.64"
  • Inducer Diameter: 3.7"
