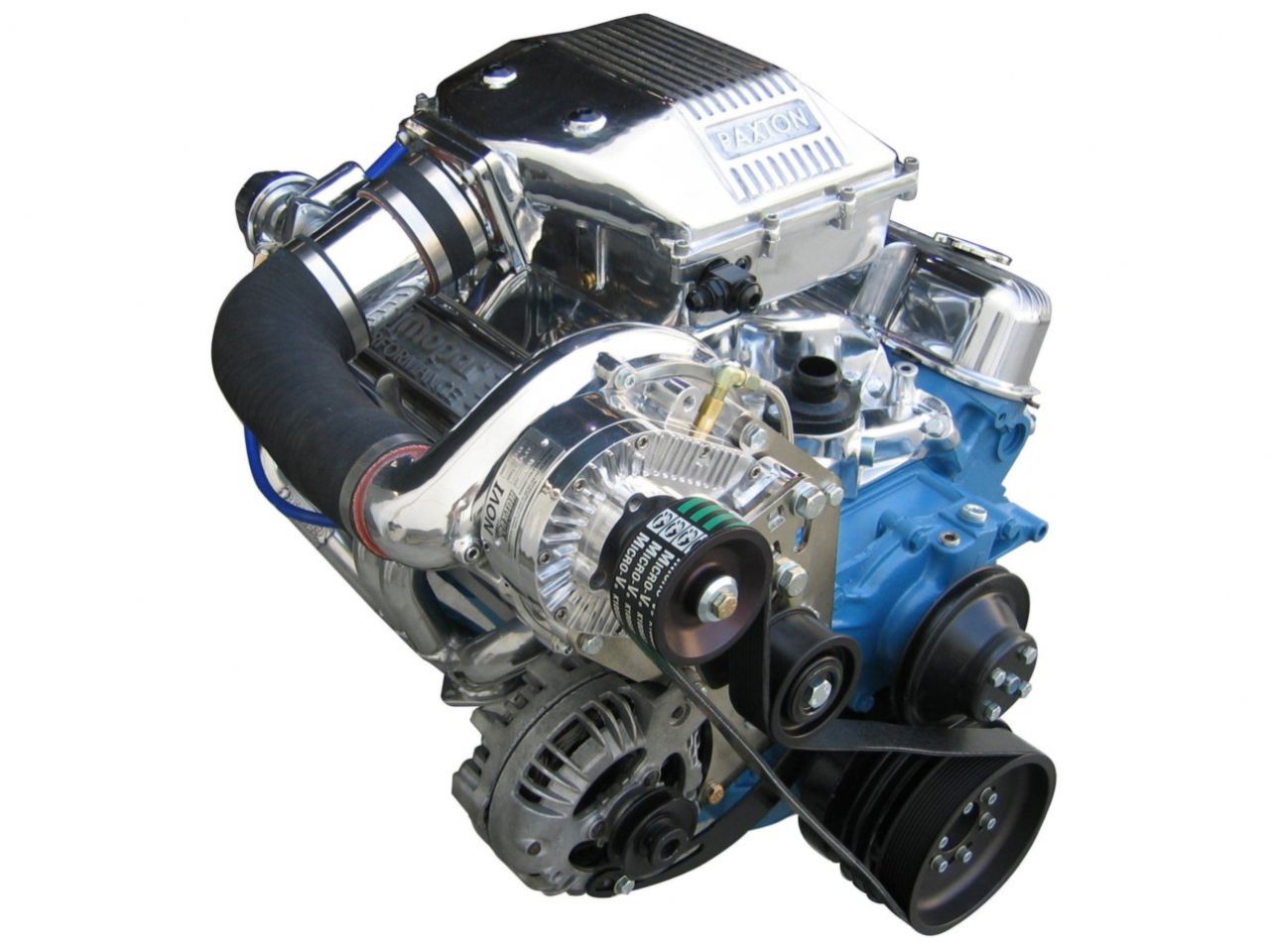

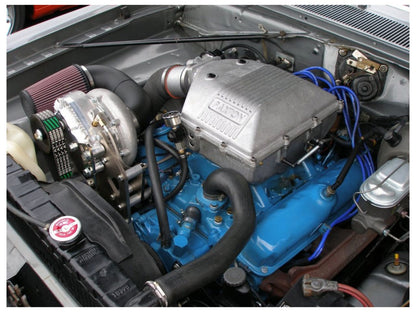

Vortech Supercharger Kit; For Use With Small Block Mopar Engines; Centrifugal

Paxton Small Block Mopar Carbureted Supercharger Systems

The NOVI supercharger with supplied pulley ratio will produce 7-8 PSIG boost at 6,000 RPM on a lightly modified 340 cu.in. V-8 engine. Horsepower gains (depending on boost levels, engine volumetric efficiency, etc) will be in the 30-75%+ range.

System Contents

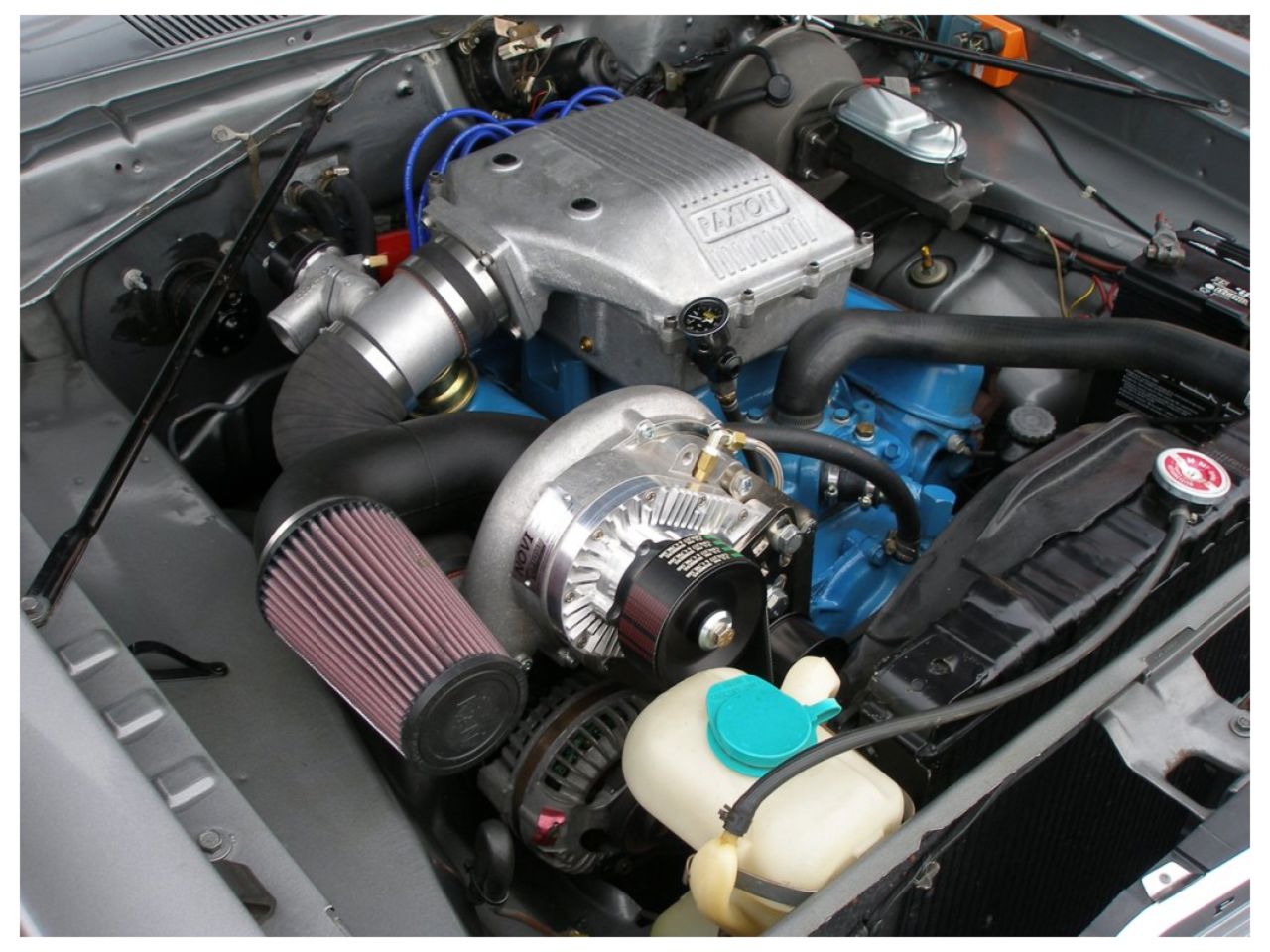

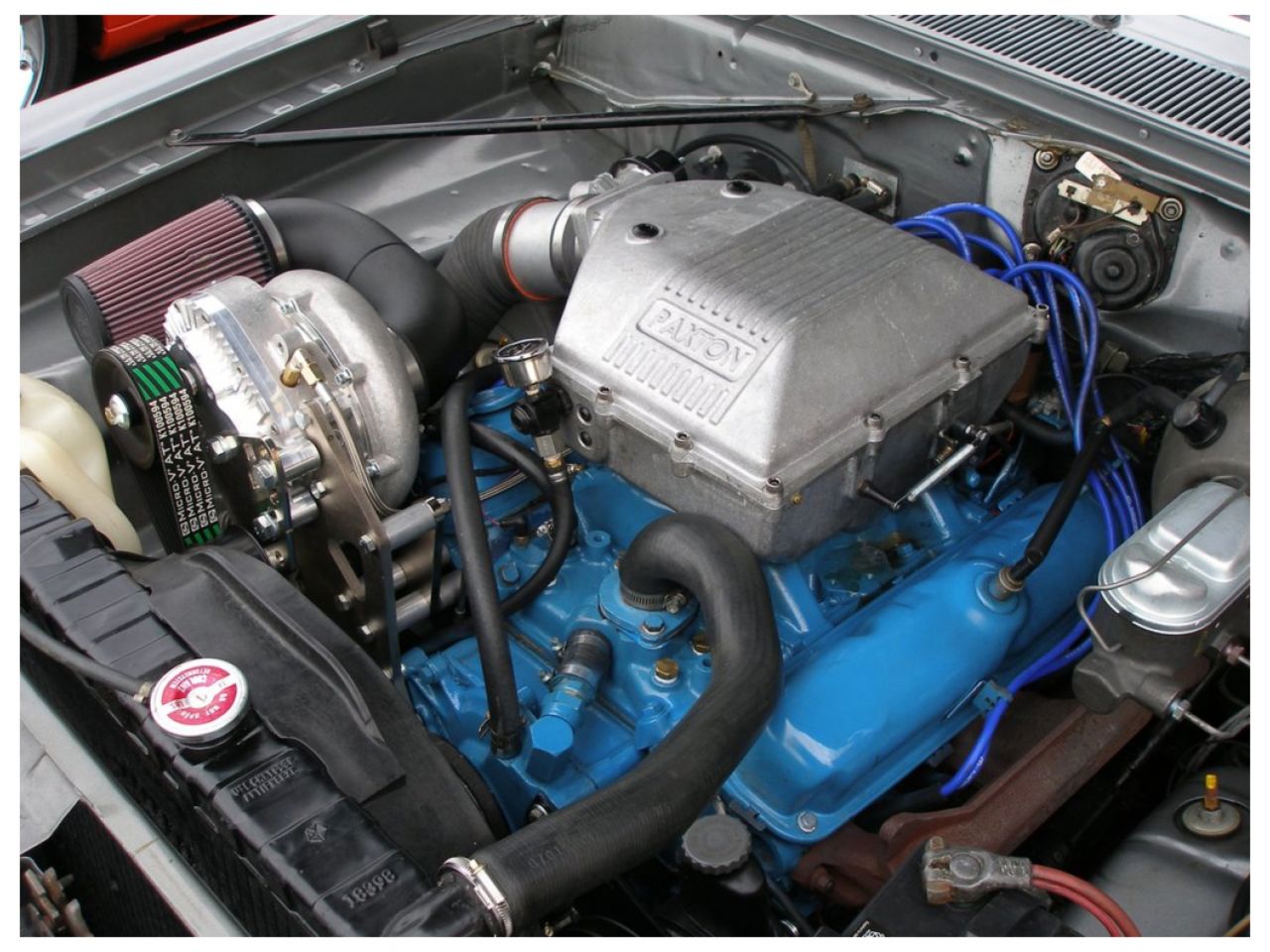

These systems include: a cast aluminum carburetor enclosure assembly (for the use with Holley #4150 type, Quick Fuel Q-750 BAN or Demon 650 MD 4-BBL carburetor, mechanical secondaries, .120 needle and seat (plus nitrophyll float set). The enclosure pressurizes the float bowls and throttle shafts for seamless response and correct air/fuel ratio. It features front and rear -8 AN fuel inlet ports as well as multiple locations for pressure/vacuum connections. Linkage arms, splined shaft and left/right hand spherical rod ends are included for simple throttle connection and adjustment.

Also included: the 10-rib supercharger drive system with necessary belts and pulleys (for use in V-belt set-up), billet aluminum mounting plate configuration for alternator and supercharger drive assembly; aluminum discharge tube with bypass valve and high-flow air filter.
